10GBASE XFP eZR Transceiver 1550nm SMF 100km LC DOM
Description

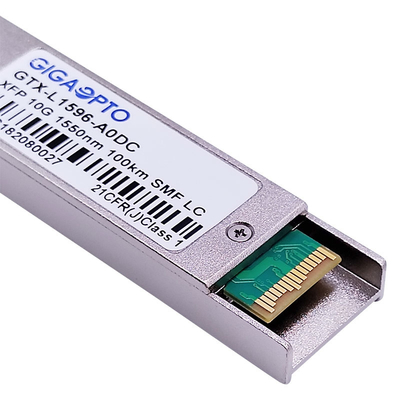

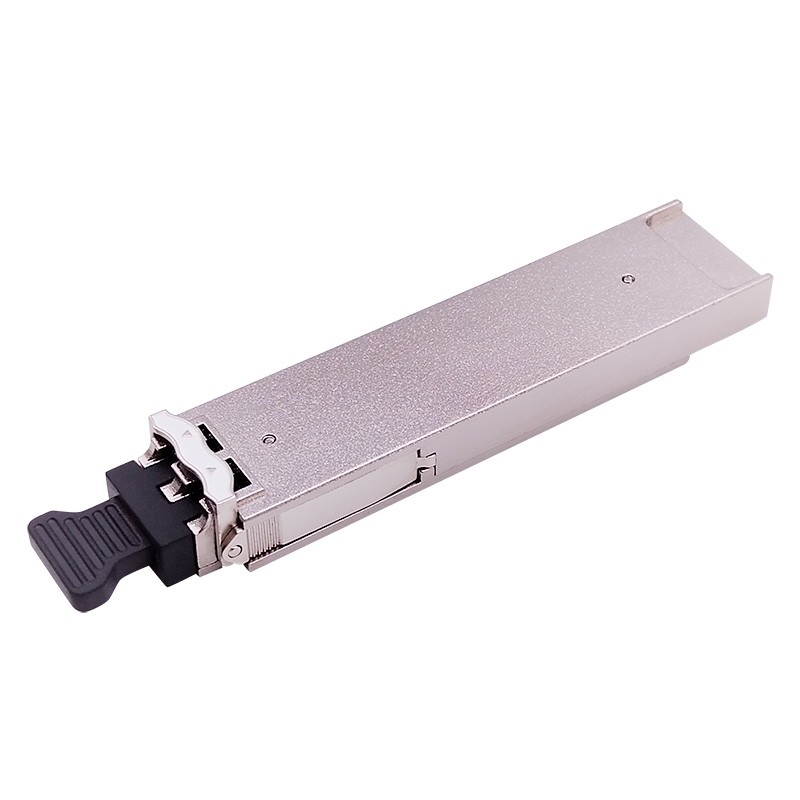

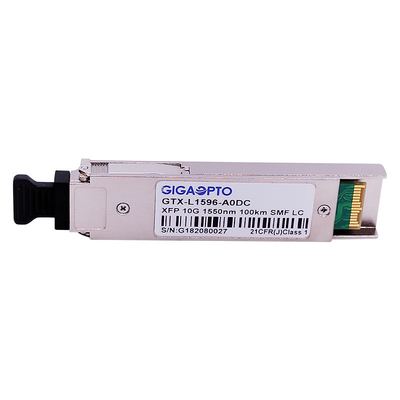

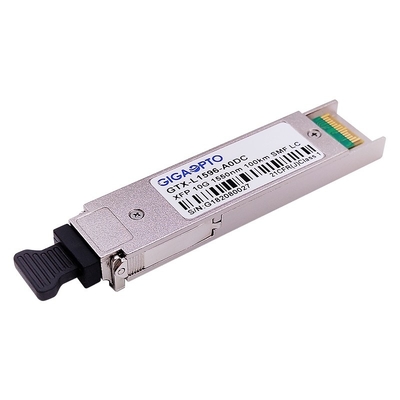

Gigaopto’s XFP eZR is a high-performance and cost-effective XFP eZR transceiver module for 10 Gigabit Ethernet links up to 100km over standard dual-strand single-mode fiber(SMF).
The XFP eZR transceiver module consists of two sections: a cooled EML transmitter and an APD photodetector, all modules satisfy class 1 laser safety requirements. It is with the XFP 30-pin connector to allow hot plug capability.
It supports DDM/DOM optical diagnostics, by providing diagnostic information about the present operating conditions.
This XFP eZR transceiver is fully compliant to XFP MSA and CE/RoHS certified.
Specification
| Product Name | XFP eZR | Part Number | GTX-L1396-A0DC |
| Form Factor | XFP | Bit Rate(Gbps) | 10Gbps |
| Center Wavelength | 1550nm | Max Cable Link | 100km |
| Connector | LC Duplex | Media | SMF |
| Transmitter Part | Cooled EML | Receiver Part | APD |
| TX Power | 0 ~ 5dBm | Receiver Sensitivity | < -25dBm |
| Extinction Ratio | > 9 dB | Overload Power | > -7 dBm |
| Power Consumption | <3.5W | Operating Case Temperature | 0 to 70°C / -40 to 85°C |
| DDM/DOM | Support (default) | OEM/ODM | Support |
Features
Applications
XFP eZR Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| XFP eZR Transmitter | |||||
| Output Power @ 9/125 SMF | Pout | 0 | - | +5 | dBm |
| Optical Wavelength | λC | 1530 | - | 1565 | nm |
| Spectral Width (-20dB) | ∆λ | - | - | 1 | nm |
| Optical Extinction Ratio@10.3Gb/s | ER | 9 | - | - | dB |
| Average Launch Power of OFF Transmitter | POFF | - | - | -30 | dBm |
| TX Jitter Generation (Peak-to-Peak) | TXj | - | - | 0.1 | UI |
| TX Jitter Generation (RMS) | TXjRMS | - | - | 0.01 | UI |
| Relative Intensity Noise | RIN | - | - | -130 | dB/Hz |
| Eye Mask | Compliant with ITU-T G.691 | ||||
| XFP eZR Receiver | |||||
| Receiver Sensitivity@ 9.95Gb/s*(note3) | Pmin | - | - | -25 | dBm |
| Receiver Sensitivity @ 10.3Gb/s*(note3) | Pmin | - | - | -25 | dBm |
| Overload Power | Pmax | -7 | - | - | dBm |
| Optical Center Wavelength | λC | 1270 | 1550 | 1600 | nm |
| Receiver Reflectance | Rf | - | - | -27 | dB |
| LOS De-Assert | LOSDEASS | - | - | -26 | dBm |
| LOS Assert | LOSASS | -38 | - | - | dBm |
| LOS Hysteresis | 0.5 | - | - | dB | |
Note3: Back to back, measured with a PRBS 231 -1 test pattern and ER=9dB, BER 1X10-12.
Compatibility
All of Gigaopto's XFP eZR optical transceiver modules are open-sourced, can be coded to be fully compatible with mainstream devices, please refer to the following form, for more product compatibility, please feel free to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTX-L1596-A0DC | Cisco | XFP-10G-SM-ZR100 |
| Juniper | EX-XFP-10GE-ZR100 | Brocade | 10G-XFP-ZR100 |
| HPE | JD107A-100 | HW | XFP-ZR100-SM1550 |
| H3C | XFP-ZR100-SM1550 | Dell | XFP-10G-SM-ZR100 |
| Extreme | 10GBASE-ZR100-XFP | ||
