Product Details:
|
| Product Name: | 40GBASE ER4 Lite | Data Rate: | 44.8Gbps |
|---|---|---|---|
| Form Factor: | QSFP+ | Wavelength: | CWDM (1270nm-1330nm) |
| Component: | DFB/APD | Reach: | 30km |
| DDM/DOM: | Supported | OEM/ODM: | Supported |
| Highlight: | QSFP+ 40G ER4 Lite 30km, 40GBASE-ER4 Lite 30km LC DOM | ||
| High Light: | DOM LC Optical Transceiver,1310nm LC Optical Transceiver,QSFP+ LC Transceiver Module |
||

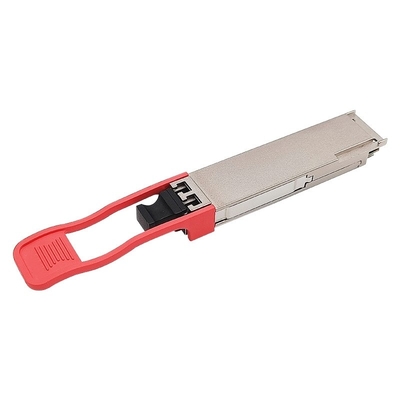

Generic Compatible QSFP+ 40GBASE ER4 Lite 30KM 1310nm SMF LC DOM Optical Transceiver Module For Ethernet and Data Center
Description

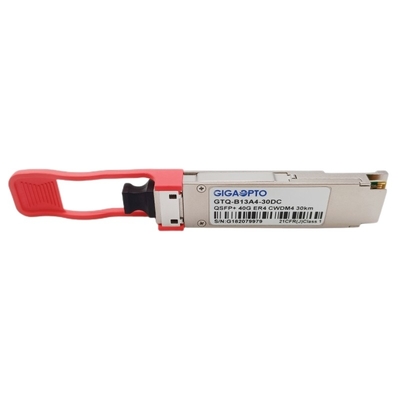

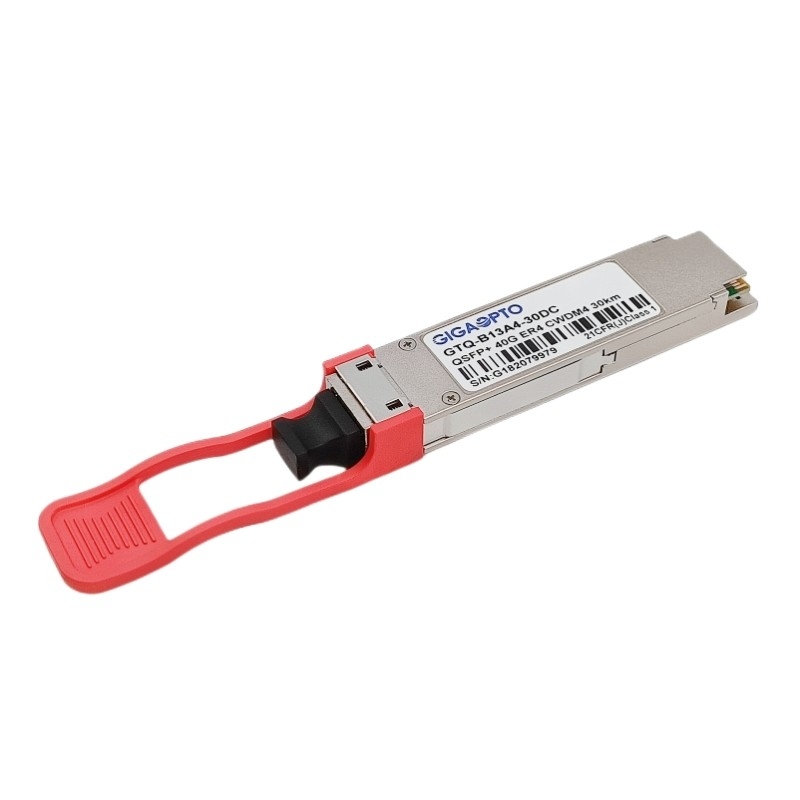

This GTQ-B13A4-30DC 40GBASE ER4 Lite transceiver module is designed for use in 40GBASE Ethernet throughput up to 30km over single mode fiber (SMF).This transceiver is compliant with QSFP+ MSA, IEEE 802.3bm 40GBASE-ER4 standard.
The module converts 4 inputs channels of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals, and converts them to 4 channel output electrical data. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system,single-mode fiber (SMF) has to be applied in this module.
Specification
| Package | QSFP+ | Data Rate | 40Gbps (4×10Gbps) |
| Center Wavelength | 1271/1291/1311/1331nm | Max Cable Distance | 30km |
| Connector | Duplex LC | Media Type | SMF |
| Transmitter Type | 4 CWDM un-cooled DFB | Receiver Type | APD |
| TX Output Power | -3.7~4.5dBm | Receiver Sensitivity | <-18dBm |
| Optical-budget | 14.3 dB | Rx Overload | >-1.5 dB |
| Digital Diagnostic | Supported | Extinction Ratio | >3.5 dB |
| OEM/ODM | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 3 Years | Protocols | QSFP+ MSA, IEEE 802.3bm |
Features
Application
Standard
For More of our 40GBASE Transceiver Series, please refer to the following form
| P/N | Description | Wave Length | Reach | Fiber Type | TX Power (dBm) | Rx Sens. (dBm) |
| GTQ-M85A4-02DC | 40G SR4 | 850nm | 150m | MMF | -7.6~2.4 | <-9.5 |
| GTQ-B08A4-02DC | 40G SR BiDi | 850/900nm | 150m | MMF | -4~5 | <-11 |
| GTQ-B08A4-04DC | 40G eSR4 | 850nm | 300m | MMF | -7.5~0 | <-11 |
| GTQ-M13A4-02DC | 40G PSM IR4 | 1310nm | 1.4km | SMF | -5.5~1.5 | <-11.5 |
| GTQ-L13A4-M2DC | 40GBASE-UNIV | 1310nm | 150m/2km | MMF/SMF | -7~4.3/-10~2.3 | <-10/<-13.7 |
| GTQ-L13A4-02DC | 40G LR4 Lite | 1310nm CWDM | 2km | SMF | -7~2.3 | <-11.5 |
| GTQ-M13A4-10DC | 40G LR4 | 1310nm CWDM | 10km | SMF | -7~2.3 | <-11.5 |
| GTQ-M13A4-10DC | 40G PSM4 | 1310nm | 10km | SMF | -6~-1 | <-14.4 |
| GTQ-M13A4-20DC | 40G eLR4 | 1310nm CWDM | 20km | SMF | -4.5~2.3 | <-12.5 |
| GTQ-B13A4-40DC | 40G ER4 | 1310nm CWDM | 40km | SMF | -2.7~4.5 | <-21.2 |
| GTQ-M13A4-02DC | 40G PSM4 Lite | 1310nm | 2km | SMF | -6~-1 | <-14.4 |
| GTQ-B13A4-30DC | 40G ER4 Lite | 1310nm CWDM | 30km | SMF | -3.7~4.5 | <-18 |
| Note | OEM/ODM supported | |||||
