Product Details:
|
| Product Name: | 40GBASE PSM4-I | Data-Rate(Gbps): | 44.8G |
|---|---|---|---|
| Wavelength: | 1310nm | Fiber Type: | SMF |
| Distance: | 10km | Connector: | MTP/MPO-12 Male |
| Operating Temperature: | -40 To 85°C (-40 To 185°F) | OEM/ODM: | Supported |
| Highlight: | 4x10GBASE-LR QSFP+PLR4, 40GBASE QSFP Parallel Single Mode（PSM4）10Km | ||
| High Light: | MTP Industrial DOM,MPO-12 Industrial DOM,40GBASE PSM4 |
||

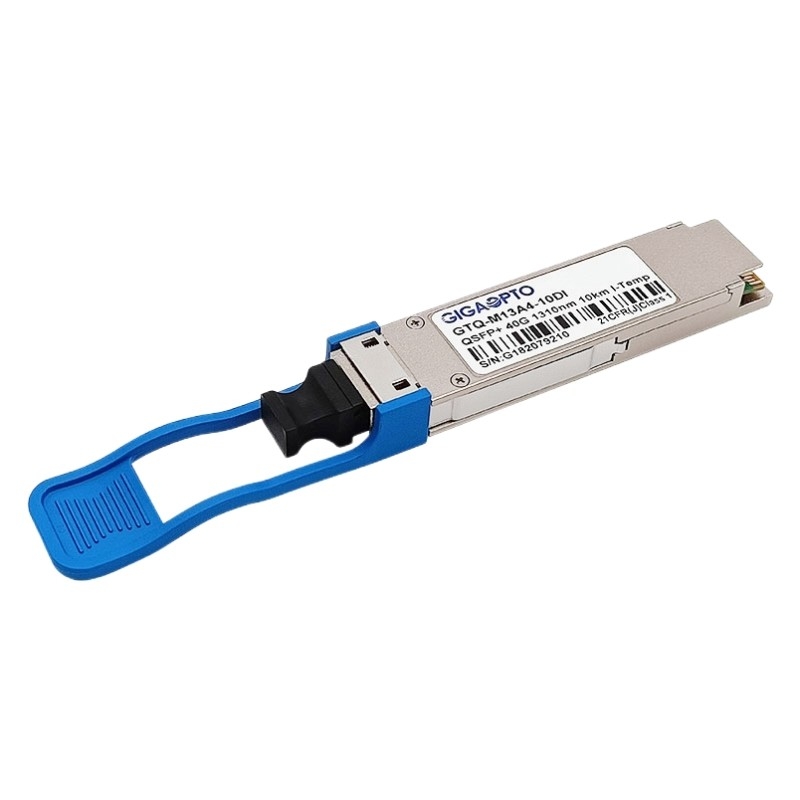

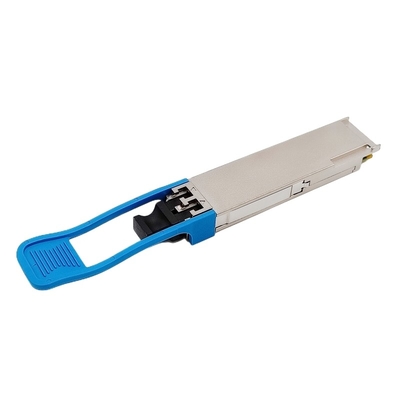

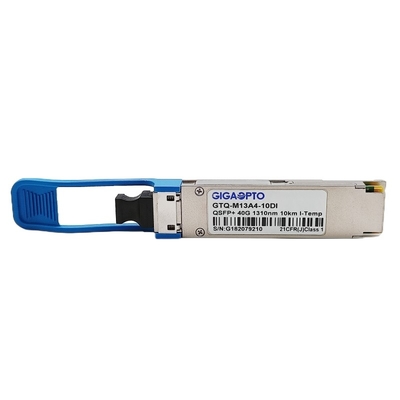

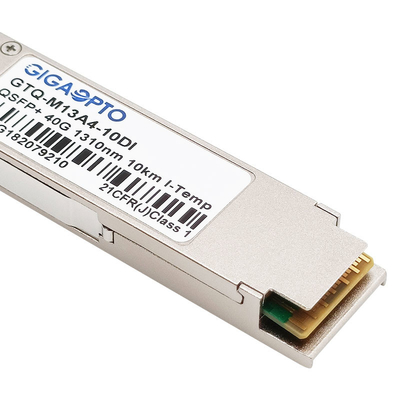

QSFP+ 40GBASE PSM4 4x10G 10km SMF 1310nm MTP/MPO-12 Industrial DOM for Ethernet and Data Center
Description
This GTQ-M13A4-10DI optical transceiver module is a high performance, low power consumption, long reach interconnect solution supporting for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIe and SAS Applications.
This 40GBASE PSM4-I transceiver is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to11.2Gb/s, providing an aggregated rate of 40G and allowed to work under an Industrial temperature range (-40 to 85°C).
Max link up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications.
It is fully compliant with the QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW and OTN data rates OTU2, OTU1e, and OTU2e per the ITU. standard.
Note: If this transceiver needs to be used to break out one 40G signal into 4x 10G signals, the interface of the device is required to support the breakout feature.
Specification
| Form Factor | QSFP+ | Max Data Rate | 44.8Gbps (4×11.2Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | MTP/MPO-12 Male | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -7~0.5dBm | Receiver Sensitivity | <-10.6dBm |
| Power budget | 3.6dB | Receiver Overload | >3dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >3.5dB |
| DDM/DOM | Supported | Host FEC | Supported |
| Bit Error Ratio (BER) | 1E-12 | Temperature Range | -40 to 85°C (-40 to 185°F) |
| OEM/ODM | Supported | Warranty | 3 years |
Features
Application
Standard
Compatibility
All of Gigaopto's GTQ-M13A4-10DI optical transceiver modules are open sourced, can be coded to be fully compatible with mainstream devices, please refer to the following form, for more products compatibility, please feel free to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTQ-M13A4-10DI | Arista | QSFP-40G-PLR4-I |
| Cisco | QSFP-4X10G-LR-S-I | Juniper | JNP-QSFP-4X10GE-LR-I |
| H3C | QSFP-40G-LR4-PSM1310-I | HW | QSFP-40G-eSM4-I |
| Mellanox | MC2210511-PLR4-I | Brocade | QSFP-40G-PLR4-I |
| Extreme | QSFP-PLR4-40G-I | Intel | E40GQSFPLR-2-I |
For More of our 40GBASE Transceiver Series, please refer to the following form
| P/N | Description | Wave Length | Reach | Fiber Type | TX Power (dBm) | Rx Sens. (dBm) |
| GTQ-M85A4-02DC | 40G SR4 | 850nm | 150m | MMF | -7.6~2.4 | <-9.5 |
| GTQ-B08A4-02DC | 40G SR BiDi | 850/900nm | 150m | MMF | -4~5 | <-11 |
| GTQ-B08A4-04DC | 40G eSR4 | 850nm | 300m | MMF | -7.5~0 | <-11 |
| GTQ-M13A4-02DC | 40G PSM IR4 | 1310nm | 1.4km | SMF | -5.5~1.5 | <-11.5 |
| GTQ-L13A4-M2DC | 40GBASE-UNIV | 1310nm | 150m/2km | MMF/SMF | -7~4.3/-10~2.3 | <-10/<-13.7 |
| GTQ-L13A4-02DC | 40G LR4 Lite | 1310nm CWDM | 2km | SMF | -7~2.3 | <-11.5 |
| GTQ-M13A4-10DC | 40G LR4 | 1310nm CWDM | 10km | SMF | -7~2.3 | <-11.5 |
| GTQ-M13A4-10DC | 40G PSM4 | 1310nm | 10km | SMF | -6~-1 | <-14.4 |
| GTQ-M13A4-20DC | 40G eLR4 | 1310nm CWDM | 20km | SMF | -4.5~2.3 | <-12.5 |
| GTQ-B13A4-40DC | 40G ER4 | 1310nm CWDM | 40km | SMF | -2.7~4.5 | <-21.2 |
| GTQ-M13A4-02DC | 40G PSM4 Lite | 1310nm | 2km | SMF | -6~-1 | <-14.4 |
| GTQ-B13A4-30DC | 40G ER4 Lite | 1310nm CWDM | 30km | SMF | -3.7~4.5 | <-18 |
| Note | OEM/ODM supported | |||||
