Product Details:
|
| Product Name: | WDM XFP ZR | Link: | 80km |
|---|---|---|---|
| Wavelength: | TX_1490nm / RX_1550nm | LD/PD: | DFB+APD |
| Interface: | LC Simplex | Application: | 10G Datacom |
| Keywords: | WDM XFP ZR, WDM XFP 80km | ||
| Highlight: | 10Gbps Fiber Transceiver Module,1490nm Fiber Transceiver Module,DOM Bidirectional Fiber Transceiver |
||

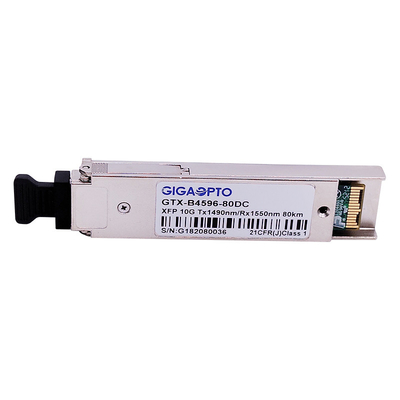

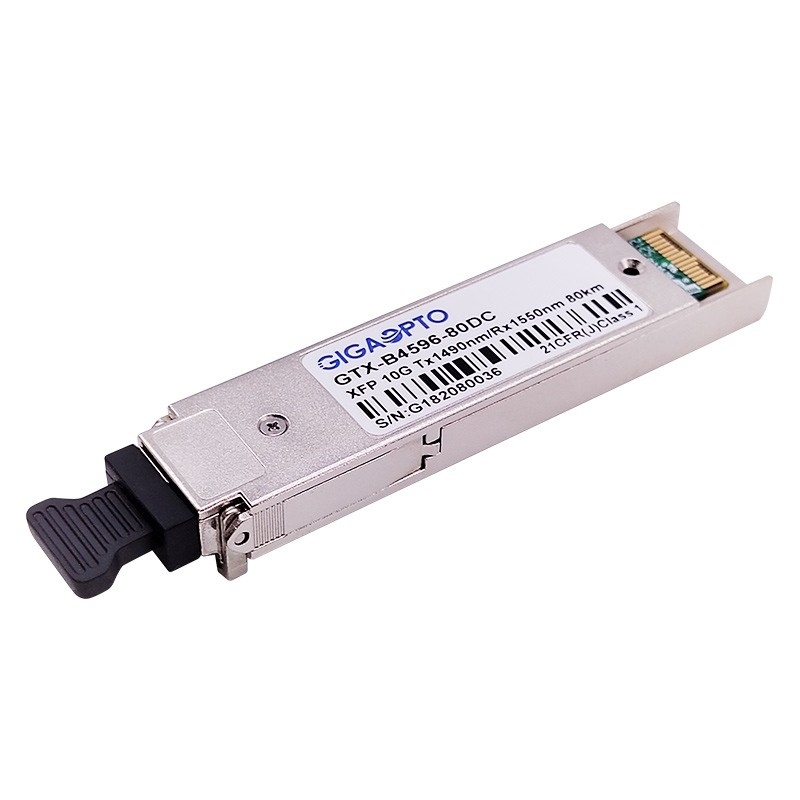

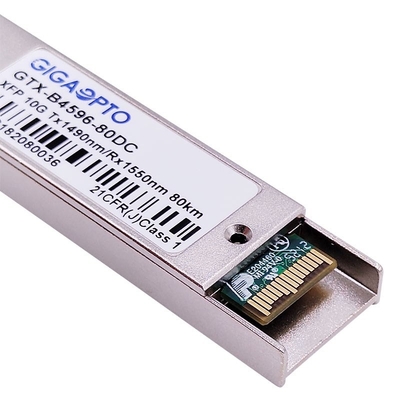

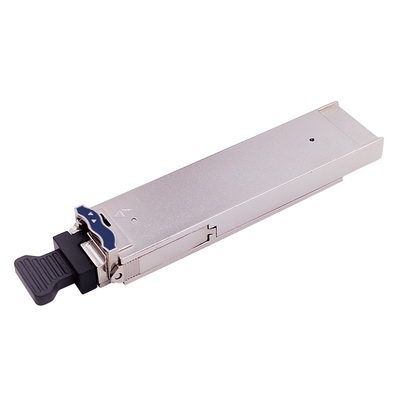

10Gbps WDM XFP ZR Bidirectional Transceiver Fiber Module 1490nm/1550nm 80km DOM
Description
This Cisco compatible WDM XFP ZR is 10Gigabit Small Form Factor (XFP) Pluggable Module Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. Max transmission up to 80km over stand single mode fiber with simplex LC connector.
This WDM XFP ZR transceiver uses top quality DFB Laser transmitter operating at a nominal wavelength of 1490nm, and a 1550nm APD Photodetector receiver. All modules satisfy Class 1 laser safety requirements.
Digital Diagnostic Monitoring functions are available via an I2C interface, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
The WDM XFP ER transceiver module complies with XFP MSA Rev 4.5 specifications, 10 Gigabit Ethernet specifications (10GBASE-ZR/ZW per IEEE 802.3ae ), and 10G Fibre Channel.
This WDM XFP ZR transceiver is CE/RoHS certified.
Specification
| Item Name | WDM XFP ZR | Part Number | GTX-B4596-80DC |
| Package | XFP | Max Bit Rate(Gbps) | 11.3Gbps |
| Wavelength (TX/RX) | 1490nm/1550nm | Reach | 80km @ G.652 |
| Connector | LC Simplex | Cable Type | single mode fiber |
| Transmitter | DFB BiDi | Receiver | APD |
| TX Average Power | 0 ~ 5dBm | RX Sensitivity | < -24dBm |
| Ext. Ratio | > 6.0 dB | Receiver Overload | > -6dBm |
| Optical Budget (dB) | 24 dB | Operating Temperature | 0 to 70°C / -40 to 85°C |
| Power Dissipation | < 3.5W | OEM/ODM | Support |
| DDM/DOM | Support (default) | Warranty | 3 years |
| Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64 | ||
Features
Applications
Electrical and Optical Characteristics
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes |
| Power Consumption | P | 3.5 | W | 1 | ||
| Supply Current | Icc | 1000 | mA | |||
|
Transmitter |
||||||
| Single-ended Input Voltage Tolerance |
Vcc |
-0.3 |
4.0 |
V |
||
| Differential Input Voltage Swing | Vin,pp | 120 | 820 | mVpp | ||
| Differential Input Impedance | Zin | 85 | 100 | 115 | Ohm | 2 |
| Transmit Disable Assert Time | 10 | us | ||||
| Transmit Disable Voltage | Vdis | Vcc-1.3 | Vcc | V | 3 | |
|
Transmit Enable Voltage |
Ven |
Vee |
Vee +0.8 |
V |
||
|
Receiver |
||||||
| Differential Output Voltage Swing | Vout,pp | 300 | 650 | 850 | mVpp | |
| Differential Output Impedance | Zout | 80 | 100 | 120 | Ohm | 4 |
| Data output rise/fall time | Tr/Tf | 40 | ps | 5 | ||
| LOS Assert Voltage | VlosH | Vcc-1.3 | Vcc | V | 6 | |
|
LOS De-assert Voltage |
VlosL |
Vee |
Vee +0.8 |
V |
6 |
|
| Power Supply Rejection | PSR | 7 | ||||
|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
| Transmitter | ||||||
|
Center Wavelength |
λC |
1480 | 1490 | 1500 | nm | GTX-B4596-80DC |
| 1540 | 1550 | 1560 | nm | GTX-B5496-80DC | ||
|
Optical Spectral Width |
∆λ |
1 |
nm |
|||
| Side Mode Suppression Ratio |
SMSR |
30 |
dB |
|||
|
Average Optical Power |
PO |
0 | 5 | dBm | GTX-B4596-80DC | |
| -1 | 3 | dBm | GTX-B5496-80DC | |||
|
Optical Extinction Ratio |
ER |
6.0 |
dB |
|||
| Average Launched Power(Laser Off) |
Poff |
-30 |
dBm |
|||
| Transmitter Eye Mask | Compliant with IEEE802.3ae | |||||
| Receiver | ||||||
|
Center Wavelength |
λC |
1540 | 1550 | 1560 | nm | GTX-B4596-80DC |
| 1480 | 1490 | 1500 | nm | GTX-B5496-80DC | ||
| Receiver Sensitivity (Average Power) |
Sen. |
-24 |
dBm |
2 |
||
| Input Saturation Power (overload) |
Psat |
-6 |
dBm |
|||
| LOS Assert | LOSA | -38 | dBm | |||
| LOS De-assert | LOSD | -26 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 6 | dB | ||
