Product Details:
|
| Product Name: | BIDI XFP ER40 | Link: | 40km |
|---|---|---|---|
| Wavelength: | TX_1330nm / RX_1270nm | LD/PD: | DFB+PIN |
| Interface: | LC Simplex | Keywords: | XFP BIDI ER40, WDM XFP BIDI |
| Highlight: | BIDI ER40 Fiber Transceiver Module,LC Simplex Fiber Transceiver Module,DOM Other Optical Transceiver Module |
||

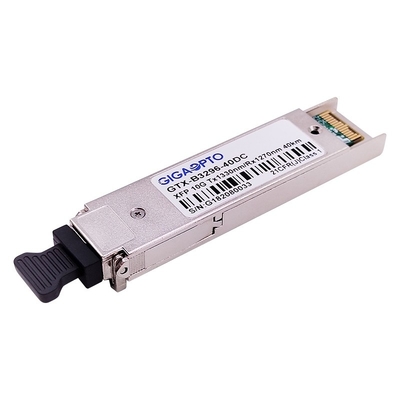

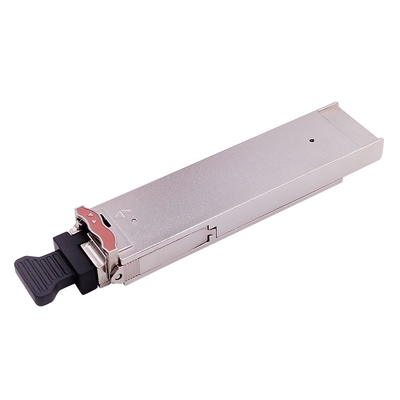

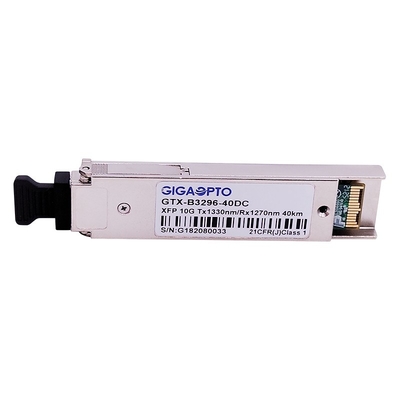

10Gbps XFP BIDI ER40 Transceiver Fiber Module 1330nm/1270nm 40km DOM
Description
This XFP BIDI ER40 fiber module is designed for 10Gigabit/s duplex optical data communication applications, the module consists of two sections: a high-quality 1330nm DFB laser transmitter and a sensitive 1270nm PIN receiver, provides a link up to 40km over a simplex single-mode fiber cable with LC connector. All module meets Class 1 laser safety requirement.
Digital Diagnostic Monitoring functions are available via an I2C interface, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
The WDM XFP ER transceiver module complies with XFP MSA Rev 4.5 specifications, 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel.
Specification
| Product Name | XFP BIDI ER40 | Part Number | GTX-B3296-40DC |
| Packaging | XFP | Max Bit Rate(Gbps) | 11.3 Gbps |
| Wavelength (TX/RX) | 1330nm/1270nm | Link Distance | 40km on SMF |
| Connector | LC Simplex | Media | single-mode fiber |
| Tx Part | DFB | Rx Part | PIN |
| TX Average Power | 0 ~ 5dBm | RX Sensitivity | < -15dBm |
| Ext. Ratio | > 3.5 dB | Saturation Input Power | > 0.5dBm |
| Power Budget (dB) | 15 dB | Operating Temperature | 0 to 70°C / -40 to 85°C |
| Power Dissipation | < 2W | OEM/ODM | Support |
| DDM/DOM | Support (default) | Warranty | 36 months |
| Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64 | ||
Features
Applications
