Product Details:
|
| Product Name: | BIDI XFP ER60 | Length: | 60km |
|---|---|---|---|
| Wavelength: | TX_1270nm / RX_1330nm | LD/PD: | DFB+APD |
| Connector: | LC UPC | Keywords: | XFP Bidirectional 60km, BIDI XFP ER60 |
| Highlight: | 1330nm Fiber Transceiver Module,DOM Fiber Transceiver Module,60km Other Optical Transceiver Module |
||

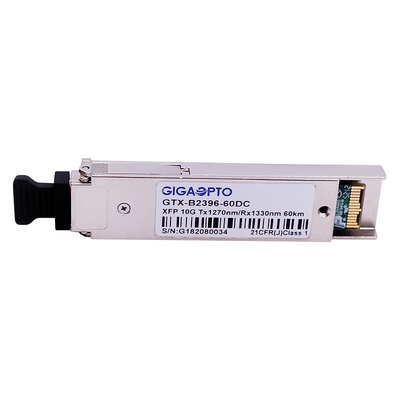

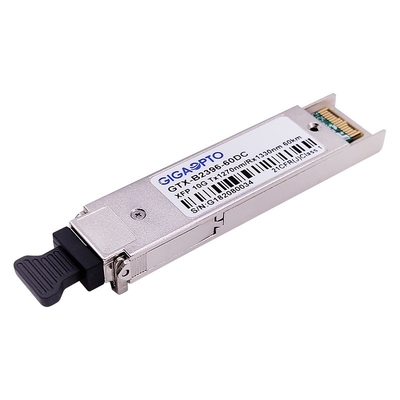

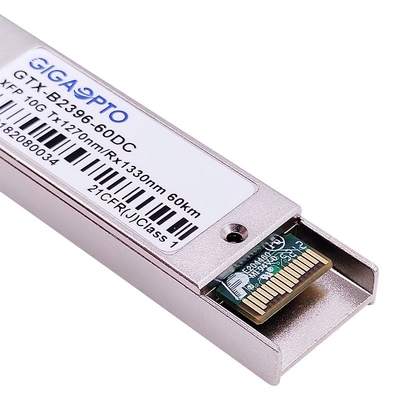

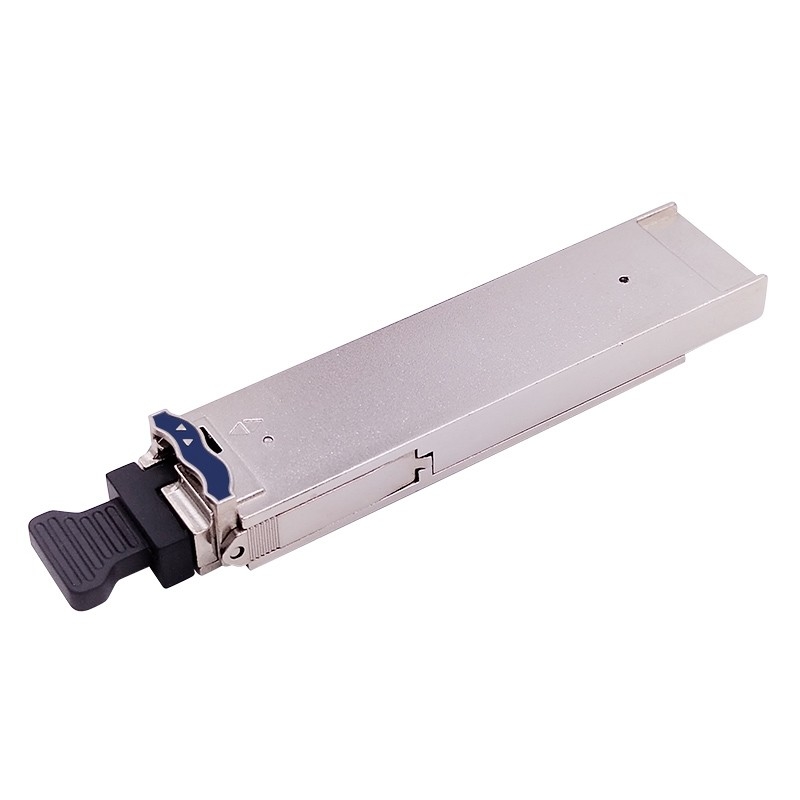

10Gbps BIDI XFP ER60 Fiber Transceiver Module 1270nm/1330nm 60km DOM
Description
The BIDI XFP ER60 is a hot-pluggable WDM XFP transceiver module for Bi-direction optical data communications such as 10 Gigabit Ethernet and 1200-SM-LL-L 10G Fiber Channel. It provides 60km transmission over single-strand single-mode fiber (G.652 SMF).
The BIDI XFP ER60 module consists of two sections: the transmitter section uses a 1270nm DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825, the receiver section uses a 1330nm APD photodiode integrated with a TIA.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Specification
| Item Name | BIDI XFP ER60 | Part Number | GTX-B2396-60DC |
| Form Factor | XFP | Bit Rate(Gbps) | 10Gbps |
| Wavelength (TX/RX) | 1330nm/1270nm | Transmission | 60km |
| Connector | Simplex LC UPC | Cable Type | G.652 SMF |
| LD Component | DFB | PD Component | APD |
| TX Average Power | 1 ~ 5dBm | RX Sensitivity | < -20dBm |
| Ext. Ratio | > 3.5 dB | Receiver Overload | > 0.5dBm |
| Power Budget (dB) | 21 dB | Operating Temperature | 0 to 70°C / -40 to 85°C |
| Power Dissipation | < 2W | OEM/ODM | Support |
| DDM/DOM | Support (default) | Warranty | 3 years |
| Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64 | ||
Features
Applications
