Product Details:
|
| Product Name: | XFP WDM ER60 | Distance: | 60km |
|---|---|---|---|
| Wavelength: | TX_1330nm / RX_1270nm | Component: | DFB+APD |
| Connector: | Simplex LC | Highlight: | XFP WDM ER60, 1 Fiber XFP |
| Highlight: | 1270nm Fiber Transceiver Module,60km Fiber Transceiver Module,DOM Ethernet Fiber Transceiver |
||

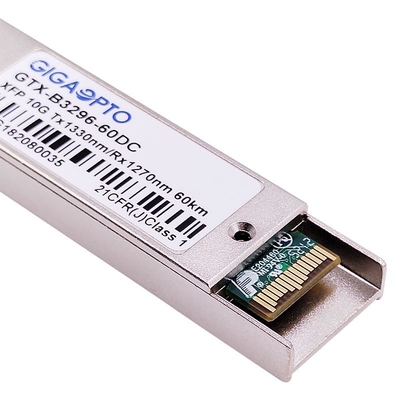

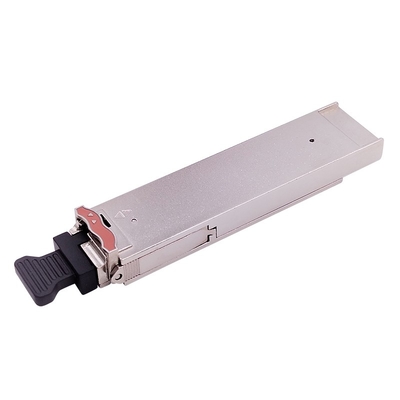

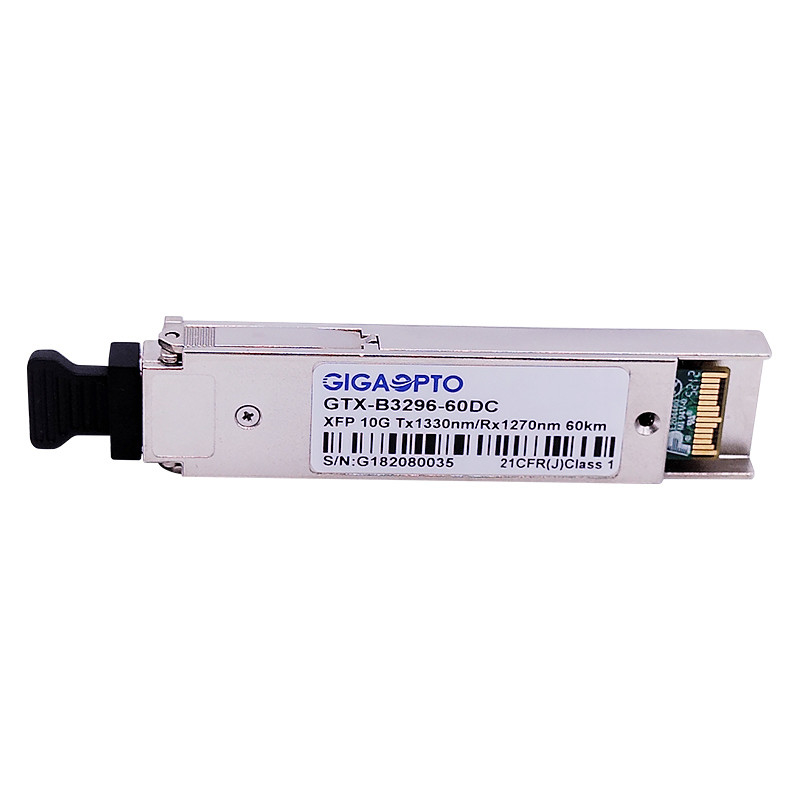

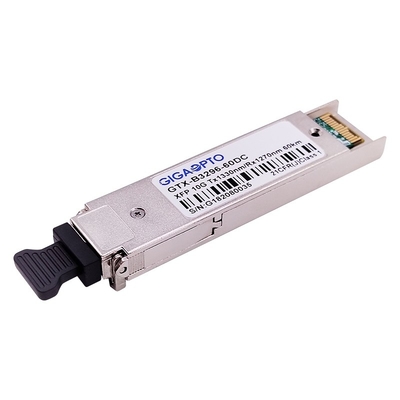

10Gbps XFP WDM ER60 Ethernet Fiber Transceiver Module 1330nm/1270nm 60km DOM
Description
Gigaopto’s XFP WDM ER60 is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver. The transmitter section uses a 1330nm DFB, the receiver section uses a 1270nm PIN photodiode receiver, which provides 60km transmission over single strand single mode fiber (G.652 SMF).
It supports DDM/DOM optical diagnostics, which provides diagnostic information about the present operating conditions.
Specification
| Compatible Brand | Cisco | Part Number | GTX-B3296-60DC |
| Packaging | XFP WDM | Bit Rate(Gbps) | 10.3 Gbps |
| Wavelength (TX/RX) | 1330nm/1270nm | Link Distance | 60 |
| Connector | LC Simplex | Media | single-mode fiber |
| Tx Part | DFB | Rx Part | APD |
| TX Average Power | 1 ~ 5dBm | RX Sensitivity | < -20dBm |
| Ext. Ratio | > 3.5 dB | Saturation Input Power | > 0.5dBm |
| Power Budget (dB) | 21 dB | Operating Temperature | 0 to 70°C / -40 to 85°C |
| Power Dissipation | < 2W | OEM/ODM | Support |
| DDM/DOM | Support (default) | Warranty | 36 months |
| Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64 | ||
Features
Applications
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1320 | 1330 | 1340 | nm | ||
| Spectral Width(-20dB) | Δλ | 1 | nm | ||||
| Side-Mode Suppression Ratio | SMSR | 30 | dB | ||||
| Average Output Power | Pout | +1 | +6 | dBm | 1 | ||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Data Input Swing Differential | VIN | 180 | 950 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | ||
|
TX Disable |
Disable | 2.0 | Vcc | V | |||
| Enable | 0 | 0.8 | V | ||||
| Receiver | |||||||
| Centre Wavelength | λc | 1260 | 1270 | 1280 | nm | ||
| Receiver Sensitivity | -20 | dBm | 3 | ||||
| Receiver Overload | -8.0 | dBm | 3 | ||||
| LOS De-Assert | LOSD | -21 | dBm | ||||
| LOS Assert | LOSA | -35 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
| Data Output Swing Differential | Vout | 400 | 600 | 800 | mV | 2 | |
|
LOS |
High | 2.0 | Vcc | V | |||
| Low | 0.8 | V | |||||
Note 1: The optical power is launched into SMF.
Note 2:Internally AC-coupled.
Note 3: Measured with a PRBS 231-1 test pattern @9953Mbps, BER ≤1×10-12.
Mechanical Specifications
