Product Details:
|
| Product Name: | 10G XFP ZR | Reach: | 80km |
|---|---|---|---|
| Wavelength: | 1550nm | Component: | EML+APD |
| Connector: | LC | Keyword: | 10G XFP ZR, XFP 10G ZR |
| Highlight: | SMF Fiber Transceiver Module,LC DOM Fiber Transceiver Module,80km 10G XFP ZR |
||

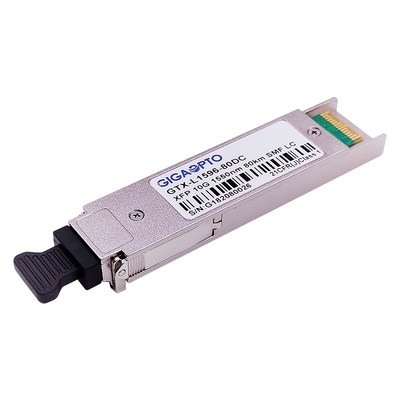

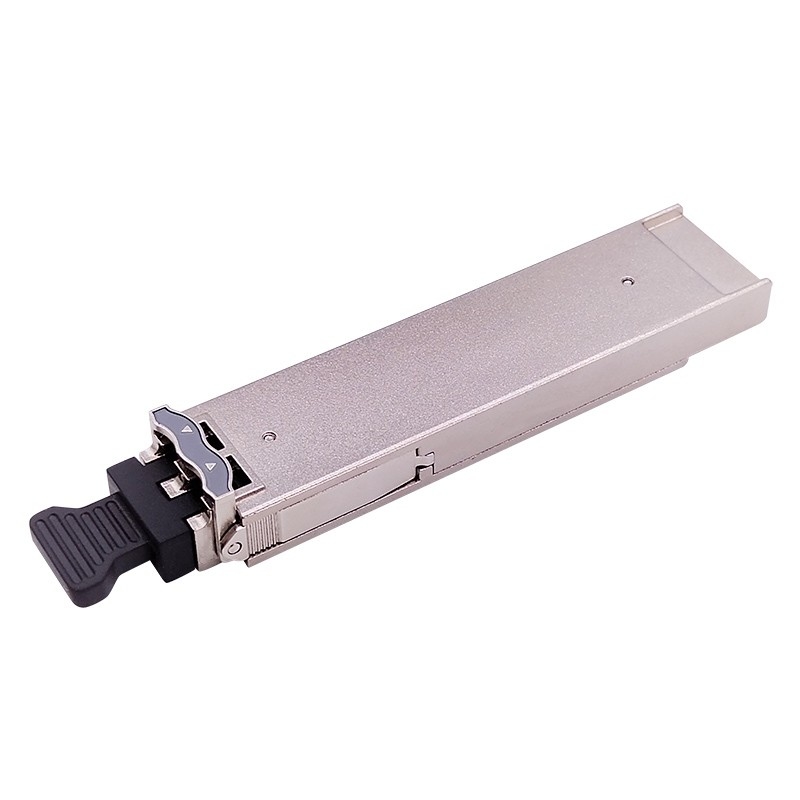

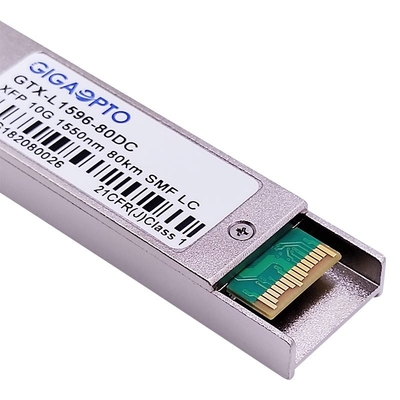

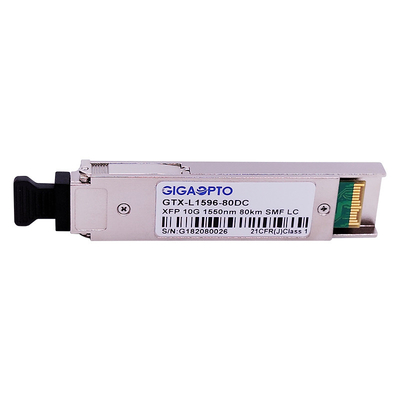

10G XFP ZR Transceiver 1550nm SMF 80km LC DOM
Description
This 10G-XFP-ZR transceiver module is a dual fiber 10G Form-factor Pluggable XFP transceiver module, it provides 10Gb/s throughput up to 80km over single-mode fiber (SMF) using 1550nm wavelength.
The 10G XFP ZR module consists of two sections: a cooled EML transmitter and an APD photodetector, all modules satisfy class 1 laser safety requirements.
A serial EEPROM in the 10G XFP ZR transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire XFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DOM) data is held in the lower area while specific data is held in a series of tables in the high memory area.
This 10G XFP ZR is fully compliant with the current Multi-Source Agreement (MSA) Specification, 10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae and 10G Fiber Channel.
Specification
| Product Name | 10G XFP ZR | Part Number | GTX-L1396-80DC |
| Form Factor | XFP | Bit Rate(Gbps) | 10Gbps |
| Center Wavelength | 1550nm | Max Cable Link | 80km |
| Connector | LC Duplex | Media | SMF |
| Transmitter Part | Cooled EML | Receiver Part | APD |
| TX Power | 0 ~ 4 dBm | Receiver Sensitivity | < -24dBm |
| Extinction Ratio | > 9 dB | Overload Power | > -7 dBm |
| Power Consumption | <3.5W | Operating Case Temperature | 0 to 70°C / -40 to 85°C |
| DDM/DOM | Support (default) | OEM/ODM | Support |
Features
Applications
10G XFP ZR Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | |
| Main Supply Voltage | Vcc5 | 4.75 | - | 5.25 | V | |
| Supply Voltage #2 | Vcc3 | 3.13 | - | 3.45 | V | |
| Supply Current – Vcc5 supply | Icc5 | - | - | 370 | mA | |
| Supply Current – Vcc3 supply | Icc3 | - | - | 500 | mA | |
| Module Total Power | P | - | - | 3.5 | W | |
| Transmitter | ||||||
| Input Differential Impedance*Note1 | Rin | - | 100 | - | Ω | |
| Differential Data Input Swing | Vin, pp | 120 | - | 820 | mV | |
| Transmit Disable Voltage | VD | 2.0 | - | Vcc | V | |
| Transmit Enable Voltage | VEN | GND | - | GND+ 0.8 | V | |
| Transmit Disable Assert Time | - | - | 10 | us | ||
| Receiver | ||||||
|
Differential Data Output Swing*Note1 |
Vout,pp | 340 | 650 | 850 | mV | |
| Rise Time (20– 80%) | tr | - | - | 38 | ps | |
| Fall Time (20– 80%) | tf | - | - | 38 | ps | |
| LOS Fault*Note2 | VLOS fault | Vcc – 0.5 | - | VccHOST | V | |
| LOS Normal*Note2 | VLOS norm | GND | - | GND+0.5 | V | |
Note1: After internal AC coupling
Note2.:Loss of signal is open collector. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
10G XFP ZR Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Transmitter | |||||
| Output Power @ 9/125 SMF | Pout | 0 | - | +4 | dBm |
| Optical Wavelength | λC | 1530 | - | 1565 | nm |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Optical Extinction Ratio@10.3Gb/s | ER | 9 | - | - | dB |
|
Average Launch Power of OFF Transmitter |
POFF | - | - | -30 | dBm |
| TX Jitter Generation (Peak-to-Peak) | TXj | - | - | 0.1 | UI |
| TX Jitter Generation (RMS) | TXjRMS | - | - | 0.01 | UI |
| Relative Intensity Noise | RIN | - | - | -130 | dB/Hz |
| Eye Mask | Compliant with ITU-T G.691 | ||||
| Receiver | |||||
| Receiver Sensitivity@ 9.95Gb/s*Note3 | Pmin | - | - | -24 | dBm |
| Receiver Sensitivity @ 10.3Gb/s*Note3 | Pmin | - | - | -24 | dBm |
| Overload Power | Pmax | -7 | - | - | dBm |
| Optical Center Wavelength | λC | 1270 | 1550 | 1600 | nm |
| Receiver Reflectance | Rf | - | - | -27 | dB |
| LOS De-Assert | LOSDEASS | - | - | -26 | dBm |
| LOS Assert | LOSASS | -38 | - | - | dBm |
| LOS Hysteresis | 0.5 | - | - | dB | |
Note3: Back to back, measured with a PRBS 231 -1 test pattern and ER=9dB, BER 1X10-12.
Compatibility
Gigaopto's 10G XFP ZR is 100% compatible with many famous switch brands and will not cause damage to OEM devices. In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to customers.
For this 10G XFP ZR compatibility, please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTX-L1596-80DC | Cisco | XFP-10GZR-OC192LR |
| Juniper | EX-XFP-10GE-ZR | Brocade | 10G-XFP-ZR |
| HPE | JD107A | HW | 0231A41G |
| H3C | XFP-LH80-SM1550 | Dell | XFP-10G-SM-ZR80 |
| Extreme | 10125 | Avaya | AA1403006-E5 |
