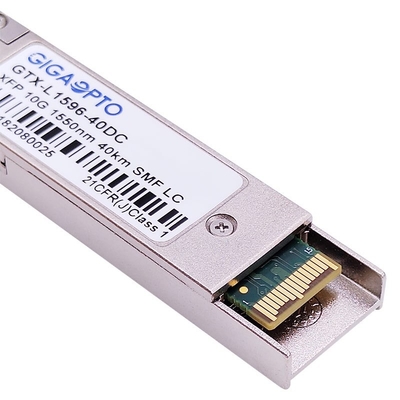

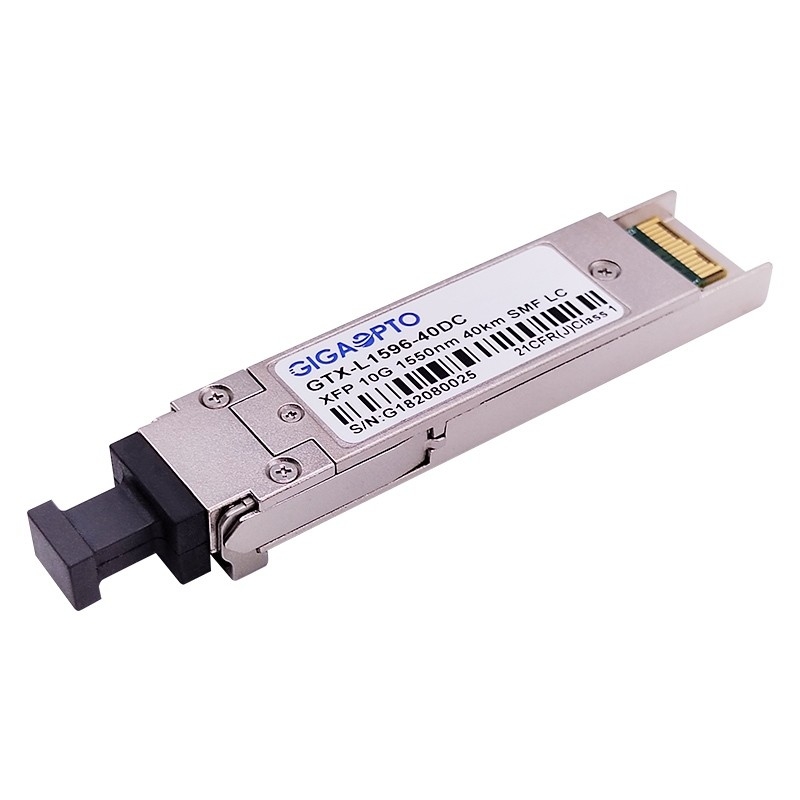

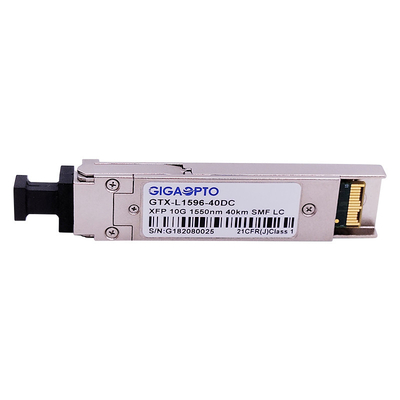

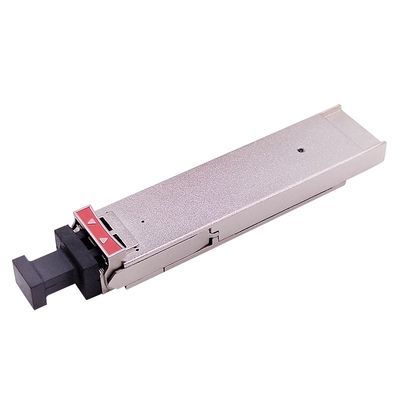

Transceiver Module XFP 10G ER 1550nm SMF 40km Duplex LC DOM

XFP 10G ER Transceiver 1550nm SMF 40km LC DOM

Description

This XFP 10G ER transceiver is designed for 9.95Gbps to 11.1Gbps data transmission applications, which supports up to 40km over a standard pair of single-mode fiber (SMF) at 1550nm via an LC duplex connector.

The XFP 10G ER transceiver consists of two sections: The transmitter section incorporates a 1550nm cooled EML, driver and re-timer. The receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and CDR. The module is hot pluggable into the 30-pin connector. The high-speed electrical interface is based on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver.

A serial EEPROM in the XFP 10G ER transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire XFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DOM) data is held in the lower area while specific data is held in a series of tables in the high memory area.

It is compliant with the current Multi-Source Agreement (MSA) Specification, 10-Gigabit Ethernet 10GBASE-ER/EW per IEEE 802.3ae and 10G Fiber Channel.

Specification

Features

• Hot-pluggable XFP 10G ER footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ER/EW
• 1550nm cooled EML transmitter, PIN photo-detector
• Distance up to 40km on single-mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Power dissipation <2.5W
• Temperature: Standard: 0°C to 70°C or Industrial: -40 to 85°C
• Very low EMI and excellent ESD protection
• RoHS compliant and lead-free

Applications

• SONET(OC-192)/SDH(STM64) line card
• 10GBASE-ER at 10.3125Gbps
• 10GBASE-EW at 9.953Gbps
• Other optical links

XFP 10G ER Electrical and Optical Characteristics

Note 1: The optical power is launched into SMF.

Note 2: Internally AC-coupled.

Note 3: Measured with a PRBS 231-1 test pattern @9953Mbps, BER ≤1×10-12.

Compatibility

All Gigaopto XFP transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.

For this XFP 10G ER transceiver, please refer to the P/N correspondence table. For more product compatibility, please feel free to tell us.
