Product Details:
|
| Product Name: | 10G XFP LR | Distance: | 10km |
|---|---|---|---|
| Wavelength: | 1310nm | Component: | DFB+PIN |
| Connector: | LC-duplex | Keyword: | 10G XFP LR, XFP LR |
| Highlight: | 10km 10G XFP LR,DOM 10G XFP LR,CE Other Optical Transceiver Module |
||

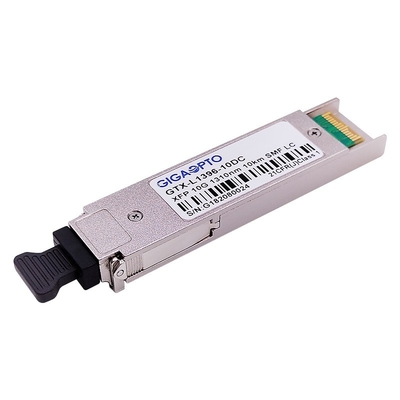

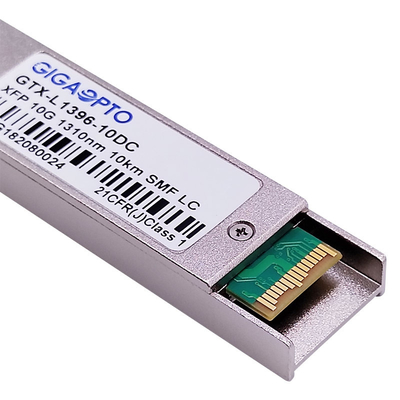

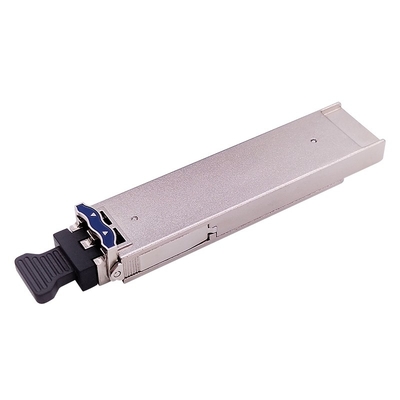

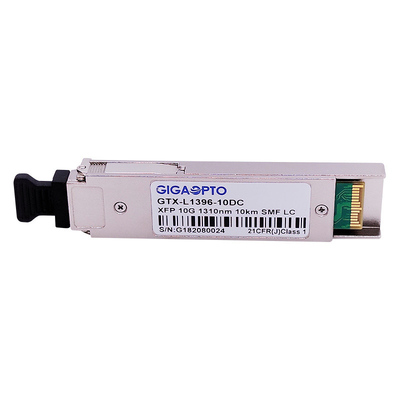

10G XFP LR Transceiver 1310nm SMF 10km LC DOM
Description
This 10G XFP LR transceiver is a dual fiber 10G Form-factor Pluggable XFP transceiver module, it provides 10Gb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength.
The 10G XFP LR transceiver module consists of two sections: a top-quality DFB transmitter and a high-sensitivity PIN photodetector, all modules satisfy class 1 laser safety requirements.
This XFP-10GBASE-LR Transceiver complies with 10-Gigabit Ethernet 10GBASE-LR /LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L, 8G Fibre Channel 800-SM-LC-L, and 10G CPRI. This transceiver can also support OTN/FEC protocols OTU1e and OTU2e upon request.
Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C).
The XFP LR transceiver is XFP Multi-Source Agreement (MSA) compliant and RoHS/CE/FCC certificated.
Specification
| Product Name | 10G XFP LR | Part Number | GTX-L1396-10DC |
| Package | XFP | Data Rate(Gbps) | 10Gbps |
| Wavelength | 1310nm | Max Reach | 10km |
| Interface | Dual LC | Media Type | SMF |
| Transmitter Type | DFB Laser | Receiver Type | PIN photo-detector |
| TX Power | -6 ~ 0 dBm | Receiver Sensitivity | < -14.5dBm |
| Extinction Ratio | > 3.5 dB | Saturation Input Power | > 0.5 dBm |
| Power Dissipation | <2.5W | Temperature Range | 0 ~ 70°C or -40~85ºC |
| Diagnostic (DDM/DOM) | Support | Warranty | 3 years |
Features
Applications
10G XFP LR Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1270 | 1310 | 1350 | nm | |||
| Spectral Width(-20dB) | Δλ | 1 | nm | |||||
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Output Power | Pout | -6.0 | 0 | dBm | 1 | |||
| Extinction Ratio | ER | 3.5 | dB | |||||
| Data Input Swing Differential | VIN | 180 | 950 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
|
TX Disable |
Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1600 | nm | ||||
| Receiver Sensitivity | -14.4 | dBm | 3 | |||||
| Receiver Overload | 0.5 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -15.5 | dBm | |||||
| LOS Assert | LOSA | -26 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 600 | 800 | mV | 2 | ||
|
LOS |
High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Note 1:The optical power is launched into SMF.
Note 2: Internally AC-coupled.
Note 3: Measured with a PRBS 231-1 test pattern @9953Mbps, BER ≤1×10-12.
Compatibility
Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our 10G XFP LR optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer a 3-year warranty.
For this 10G XFP LR transceiver, please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTX-L1396-10DC | Cisco | XFP-10GLR-OC192SR |
| Juniper | EX-XFP-10GE-LR | Brocade | 10G-XFP-LR |
| HPE | JD108B | HW | 0231A438 |
| H3C | XFP-LX-SM1310 | Dell | GP-XFP-1L |
| Extreme | 10122 | Avago | HFCT-721XPD |
| Netgear | AXM752 | AvayA | AA1403001-E5 |
| Ciena | 130-4900-900 | ||
