Product Details:
|
| Product Name: | XFP SR | Data Rate(Gbps): | 10Gbps |
|---|---|---|---|
| Wavelength: | 850nm | Reach: | 300m |
| Connector: | LC Duplex | Keywords: | 10G XFP SR, XFP SR |
| Highlight: | LC DOM 10G XFP SR,850nm 10G XFP SR,300m Other Optical Transceiver Module |
||

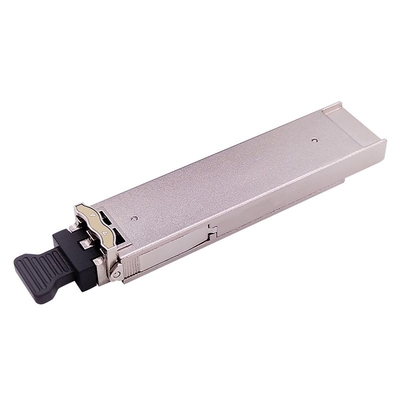

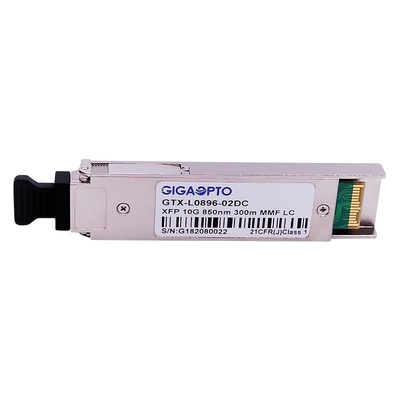

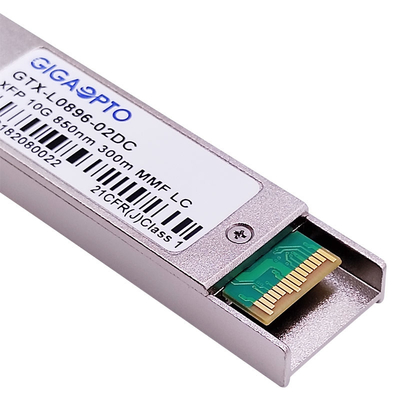

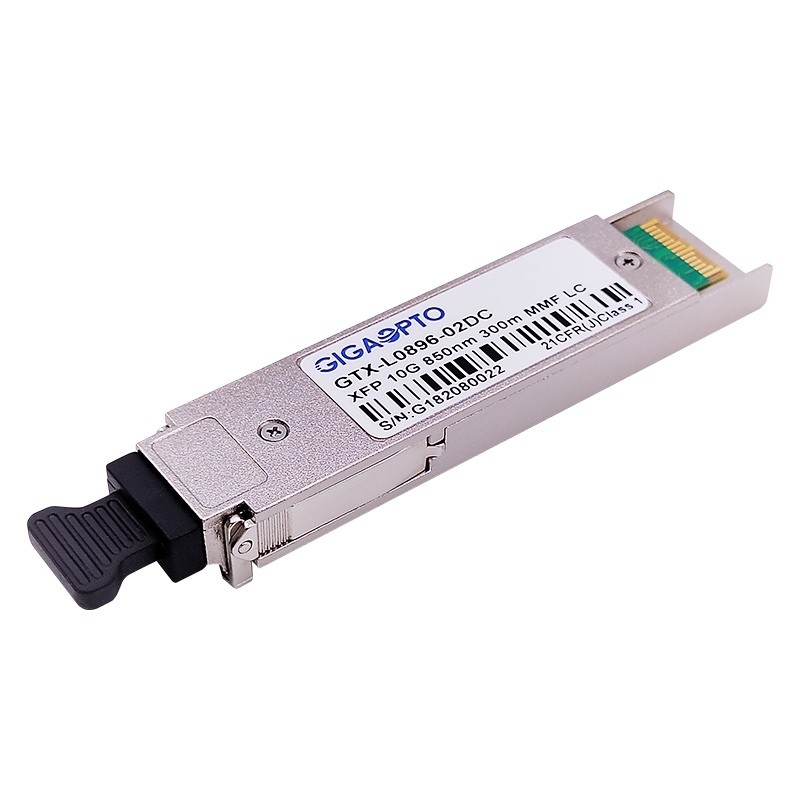

10G XFP SR Transceiver 850nm MMF 300m LC DOM
Description
This 10G XFP SR transceiver is a high-performance, cost-effective module for serial optical data communications applications specified for signal rates of 9.95Gb/s to 11.3Gb/s. It is fully compliant with XFP MSA Rev 4.5.
The high-performance uncooled 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for 10G Fibre Channel and Ethernet applications up to 300m optical links.
This XFP SR transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product that complies with FDA/CDRH and IEC-60825 standards.
Specification
| Product Name | 10G XFP SR | Part Number | GTX-L0896-02DC |
| Package | XFP | Data Rate(Gbps) | 10GBASE |
| Wavelength | 850nm | Max Reach | 300m |
| Interface | Duplex LC | Cable Type | MMF |
| LD Type | VCSEL 850nm | PD Type | PIN photo-detector |
| TX Power | -7.3 ~ -1 dBm | Receiver Sensitivity | < -11.1dBm |
| Extinction Ratio | > 3.5 dB | Saturation Input Power | > 1 dBm |
| Power Dissipation | 1.5W | Temperature Range | 0 to 70°C |
| DDM/DOM | Support | OEM/ODM | Supported |
| Protocols | XFP MSA | ||
Features
Applications
10G XFP SR Optical Characteristics
Transmitter
| Parameter | Conditions | Symbol | Min | Typ | Max | Units |
| Nominal Wavelength | lTRP | 840 | 850 | 860 | nm | |
| Spectral Width | △λ | 0.4 | 0.45 | nm | ||
|
Operating Range |
62.5/125μm MMF, 160 MHz*km |
26 |
m |
|||
|
50/125μm MMF, 400 MHz*km |
66 | |||||
|
62.5/125μm MMF, 200 MHz*km |
|
33 | ||||
|
50/125μm MMF, 500 MHz*km |
82 | |||||
|
50/125μm MMF, 2000MHz*km |
300 | |||||
|
Nominal Signalling Speed |
fOPT | 9.95 | 11.3 | Gbps | ||
| Average Launch Power | Po | -7.3 | -2.6 | -1 | dBm | |
| Extinction Ratio | ER | 3.5 | 5.5 | dB | ||
|
Transmitter and Dispersion Penalty |
TDP | 3.9 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz |
Receiver
| Parameter | Conditions | Symbol | Min | Typ | Max | Units |
| Center Wavelength | lC | 840 | 850 | 860 | nm | |
|
Receiver Sensitivity |
BER 10-12 @ 231 -11 |
PIN |
-13.5 |
-11.1 |
dBm |
|
| Receiver Sensitivity | in OMA | -11.1 | ||||
| Stressed Receiver Sensitivity | in OMA | PIN | -7.5 | dBm | ||
| Saturation Input Power | PSAT | 1 | dBm |
Package outline
Compatibility
Each Gigaopto’s XFP SR optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty. For this 10G XFP SR, please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTX-L0896-02DC | Cisco | XFP-10G-MM-SR |
| Juniper | EX-XFP-10GE-SR | Brocade | 10G-XFP-SR |
| HPE | JD117A | HW | XFP-SX-MM850 |
| H3C | XFP-SX-MM850 | Dell | 320-5164 |
| Extreme | 10GBASE-SR-XFP | Avago | AFBR-720XPDZ |
| Netgear | AXM751 | AvayA | AA1403005-E5 |
| Ciena | 130-4901-900 | ||
