Product Details:
|
| Product Name: | SFP-16GFC-LW | Bit- Category: | 16Gbps |
|---|---|---|---|
| Wavelength: | 1310nm | Length: | 10km |
| LD/PD Type: | DFB+PIN | Interface: | LC Duplex |
| Keywords: | 16G Fiber Channel, 16G SFP+ Transceiver 1310nm | ||
| Highlight: | SMF Fiber Channel Module,10km Fiber Channel Module,1310nm 10km |
||

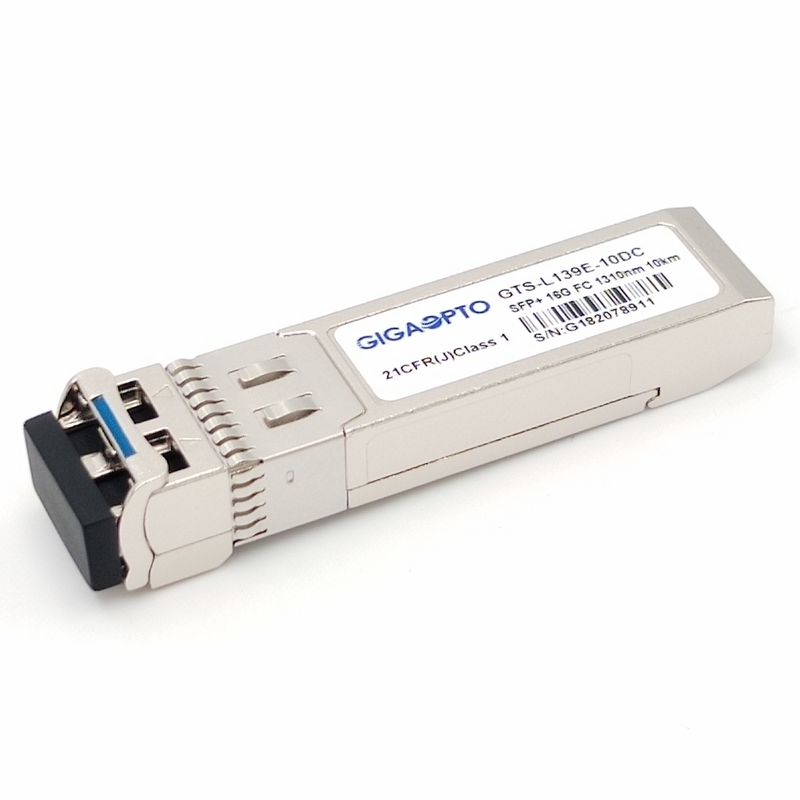

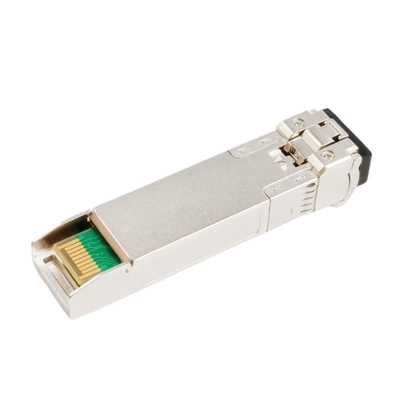

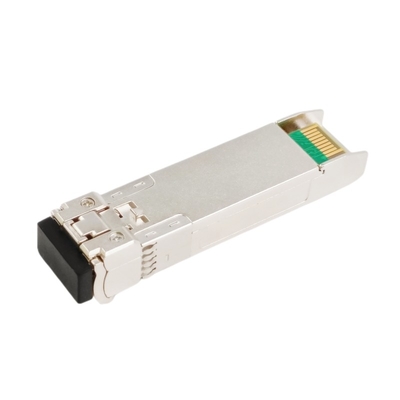

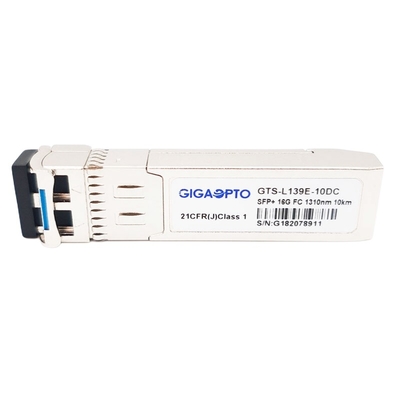

SFP+ 16GFC Fiber Channel Optical Transceiver LW 1310nm 10km SMF LC DOM
Description
This 16GFC SFP+ LW optical transceiver modules are designed to support 4G/8G/16G Fibre Channel (FC), suitable for storage area network (SAN) links up to 10km over single mode fiber.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety and RoHS requirements.
It complies with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev.11.0.
Specification
| Packaging Type | SFP+ | Bandwidth (Gbps) | 4.25Gbps - 14.025Gbps |
| Center Wavelength | 1310nm | Max Optical Distance | 10km |
| Connector | Duplex LC | Fiber Type | SMF |
| LD Type | DFB | PD Type | PIN |
| Transmitter Power | -5~-0.5dBm | Receiver Sensitivity | <-12dBm |
| Extinction Ratio | >3.5 dB | Overload | > 0.5 dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Digital Diagnostic Monitoring | Yes |
| OEM/ODM | Supported | Warranty | 36-month |
Features
Application
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1270 | 1310 | 1350 | nm | ||
| Spectral Width(-20dB) | Δλ | 1 | nm | ||||
| Side-Mode Suppression Ratio | SMSR | 30 | - | dB | |||
| Average Output Power | Pout | -5 | -0.5 | dBm | 1 | ||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Data Input Swing Differential | VIN | 180 | 850 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | ||
|
TX Disable |
Disable | 2.0 | Vcc | V | |||
| Enable | 0 | 0.8 | V | ||||
|
TX Fault |
Fault | 2.0 | Vcc | V | |||
| Normal | 0 | 0.8 | V | ||||
| Receiver | |||||||
| Centre Wavelength | λc | 1260 | 1600 | nm | |||
| Receiver Sensitivity | -12 | dBm | 3 | ||||
| Receiver Overload | 0.5 | dBm | 3 | ||||
| LOS De-Assert | LOSD | -13 | dBm | ||||
| LOS Assert | LOSA | -30 | dBm | ||||
| LOS Hysteresis | 0.5 | dB | |||||
| Data Output Swing Differential | Vout | 300 | 900 | mV | 4 | ||
|
LOS |
High | 2.0 | Vcc | V | |||
| Low | 0.8 | V | |||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 231-1 test pattern @14.025Gbps, BER ≤1×10-12.
4. Internally AC-coupled.
Compatibility
All Gigaopto’s transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this GTS-L139E-10D, please refer to the P/N correspondence table. For more product compatibility, please feel free to tell us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-L139E-10D | Brocade | SFP-16GBPS-LWL |
| Cisco | DS-SFP-FC16G-LW | Arista | Arista Networks |
| Juniper | Juniper Networks | Dell | Dell Networks |
| HW | HW Networks | H3C | H3C Networks |
