Product Details:
|
| Product: | 16GFC | Speed(Gbps): | 16G |
|---|---|---|---|
| Wavelength: | TX1330/RX1270nm | Reach: | 20km |
| Cable Type: | SMF | Connector: | Simplex LC |
| Keywords: | 16GFC 20km SFP+ | ||
| Highlight: | 16G FC Fiber Channel Transceiver,RX1270nm Fiber Channel Transceiver,fibre channel sfp+ |
||

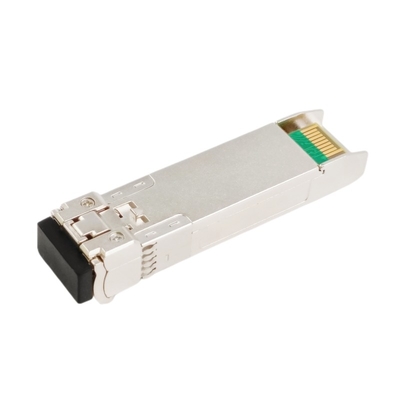

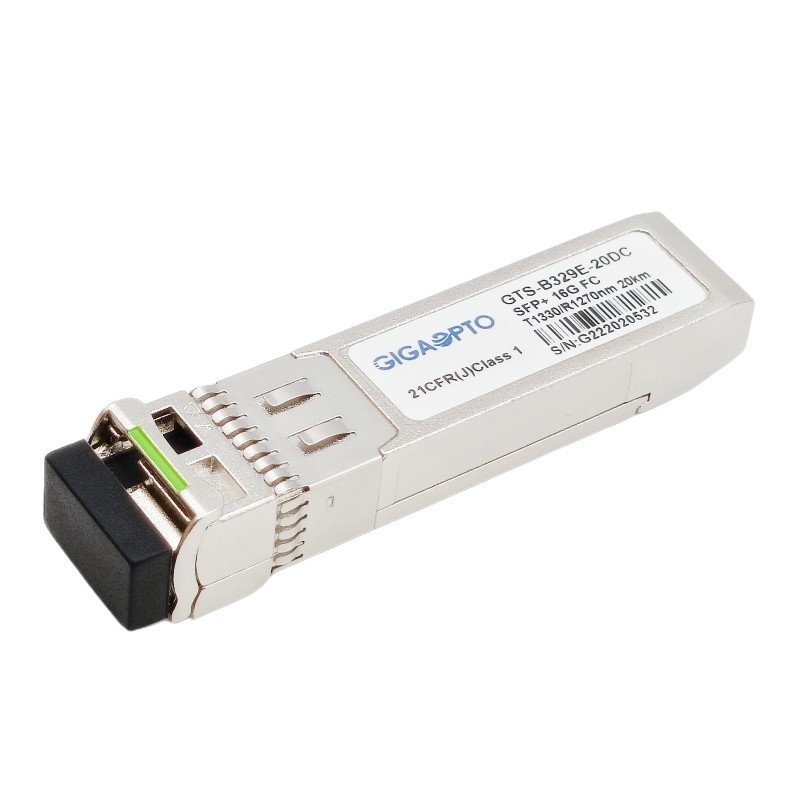

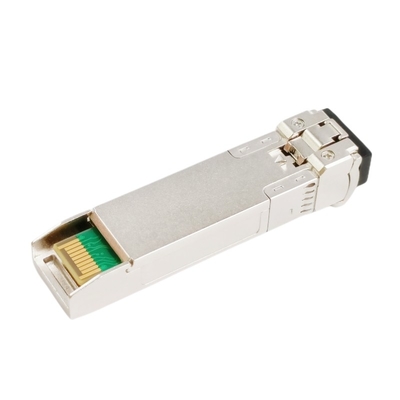

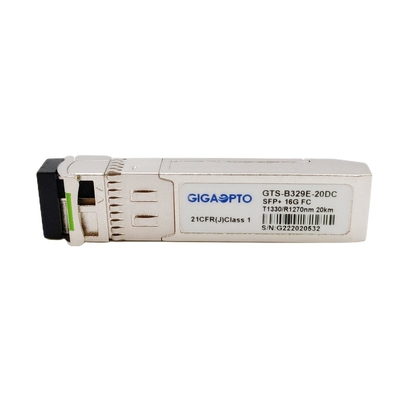

16G SFP+ BiDi Fiber Channel TX1330/RX1270nm 20km LC Optical Transceiver Module
Description
The 16G SFP+ BiDi Fiber Channel TX1330/RX1270nm 20km fiber module transceivers are designed for fiber channel IC, supporting data rate of 14.025Gb/s and 10km transmission fiber distance with OS2 single mode fiber. It complies with SFP + MSA and SFF-8472. Digital Diagnostic Monitoring is available, and operating temperature is 0 to + 70 ℃.
Specification
| Form Factor | SFP+ | Max Data Rate | 16Gbps |
| Wavelength | TX1330/RX1270nm | Max Cable Distance | 20km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -3~+2dBm | Receiver Sensitivity | -14dBm |
| Extinction Ratio | 3.5dB | Receiver Overload | 0.5dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Warranty | 3 Years |
| OEM/ODM | Supported |
