Product Details:
|
| Product Name: | 16GFC BiDi ELR | Bit-Rate(Gbps): | 16G |
|---|---|---|---|
| Wavelength: | TX1270/RX1330nm | Distance: | 20km |
| Components: | DFB/PIN | Interface: | Simplex LC |
| Keywords: | 16G Fiber Channel, Bidirectional SFP+ Transceiver, 16G 20km Module | ||
| Highlight: | 20km Fiber Channel Module,BiDi Fiber Channel Module,fiber channel sfp module |
||

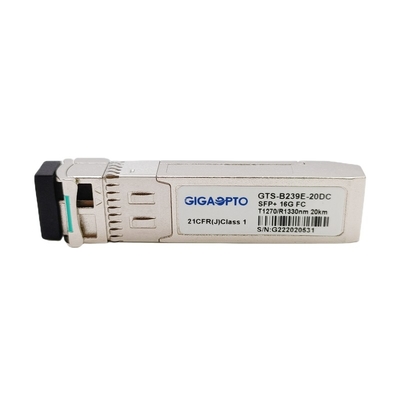

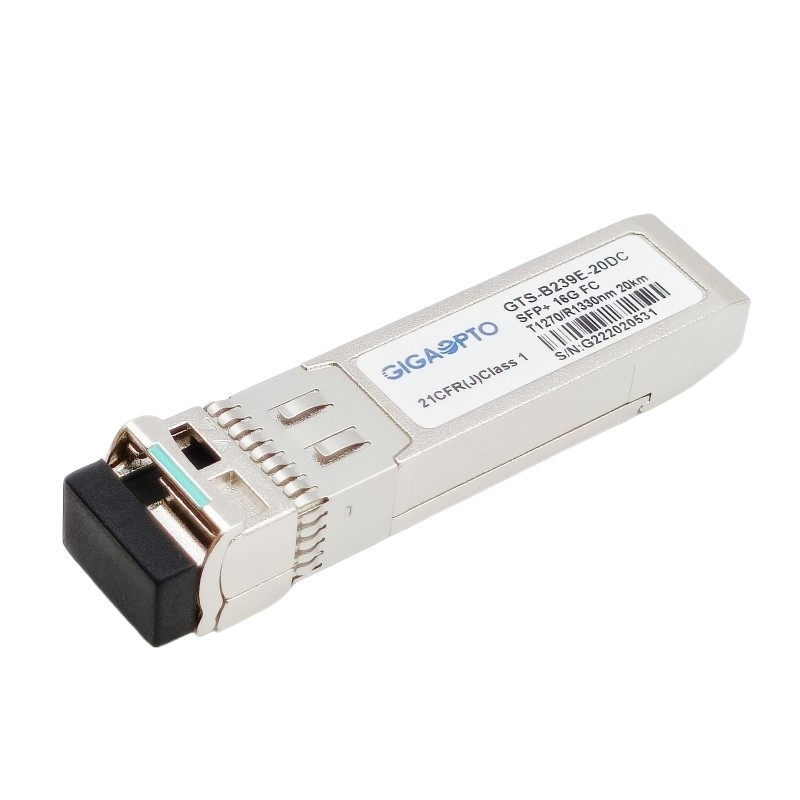

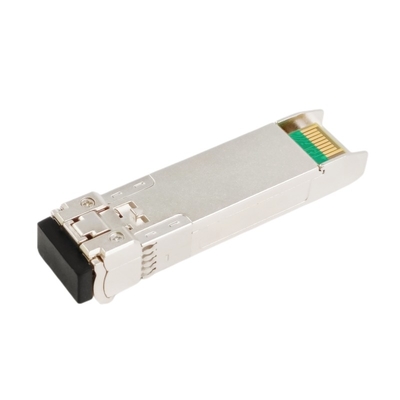

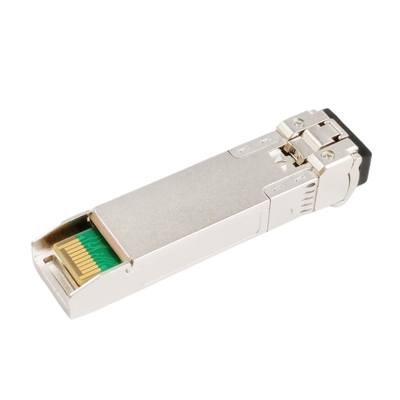

Generic Compatible 16G SFP+ BiDi Fiber Channel TX1270/RX1330nm 20km LC Optical Transceiver Module
Description
The 16G SFP+ BiDi Fiber Channel TX1270/RX1330nm 20km fiber module transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance amplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Specification
| Form Factor | SFP+ | Max Data Rate | 16Gbps |
| Wavelength | TX1270/RX1330nm | Max Cable Distance | 20km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -3~+2dBm | Receiver Sensitivity | -14dBm |
| Extinction Ratio | 3.5dB | Receiver Overload | 0.5dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Warranty | 3 Years |
| OEM/ODM | Supported |
Features
Application
