Product Details:
|
| Product Name: | 16G Fiber Channel Transceiver | Form Factor: | SFP+ |
|---|---|---|---|
| Data Rate(Gbps): | 16G | Wavelength: | CWDM |
| Transmission: | 20km | Media: | SMF |
| Connector: | LC | Keywords: | 16GFC SFP+CWDM |
| Highlight: | CWDM Fiber Channel Module,1270nm Fiber Channel Module,16G SFP+ Transceiver |
||

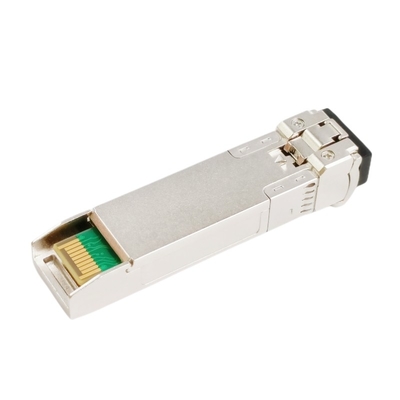

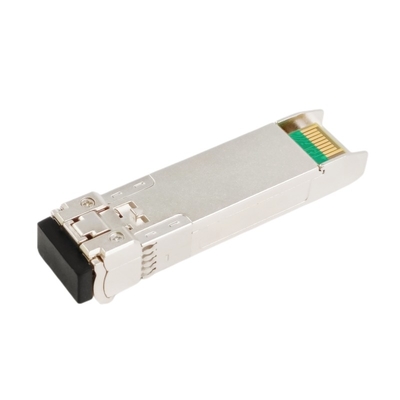

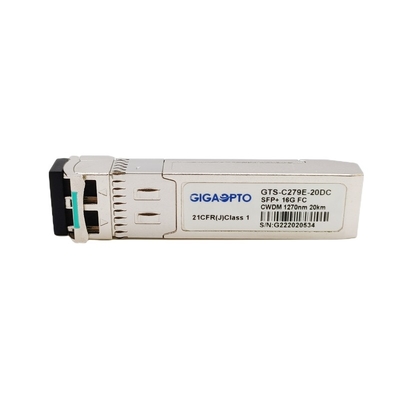

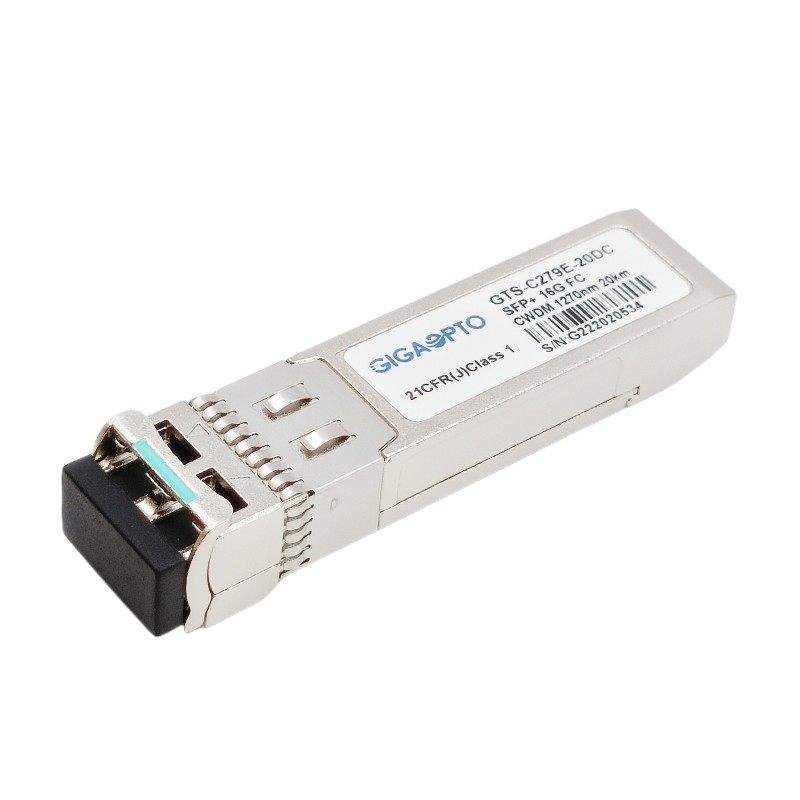

16GFC SFP+CWDM Transceiver Module 20km DOM
Description
Gigaopto's 16GFC CWDM SFP+ optical transceiver modules are designed for data center storage area network, and support 16G Fibre Channel links reach up to 20km over SMF.
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 20KM transmission distance with SMF. The transceiver consists of three sections:an uncooled DFB laser transmitter,a PIN photo-detector integrated with a trans-impedance amplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Specification
| Form Factor | SFP+ | Max Data Rate | 14.025Gbps |
| Wavelength | CWDM | Max Cable Distance | 20km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -1~+6dBm | Receiver Sensitivity | <-12dBm |
| Extinction Ratio | >3.5dB | Receiver Overload | >0.5dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Warranty | 3 Years |
| OEM/ODM | Supported |
Features
Application
