Product Details:
|
| Product Name: | FC Transceiver | Package: | SFP+ DWDM |
|---|---|---|---|
| Data-Rate(Gbps): | 16Gbps | Cable Length: | 40km |
| Laser: | DFB | Interface: | LC |
| Keywords: | 16GFC DWDM Transceiver | ||
| Highlight: | 16G Fiber Transceiver Module,DOM Fiber Transceiver Module,DWDM SFP+ |
||

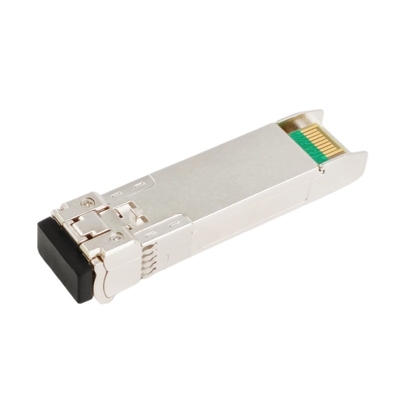

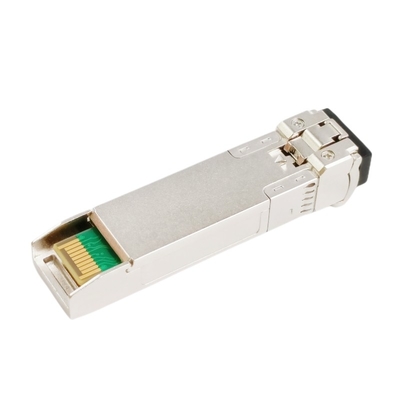

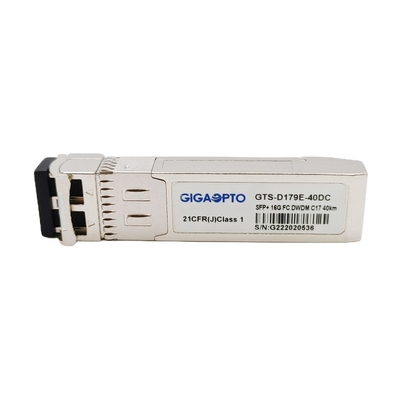

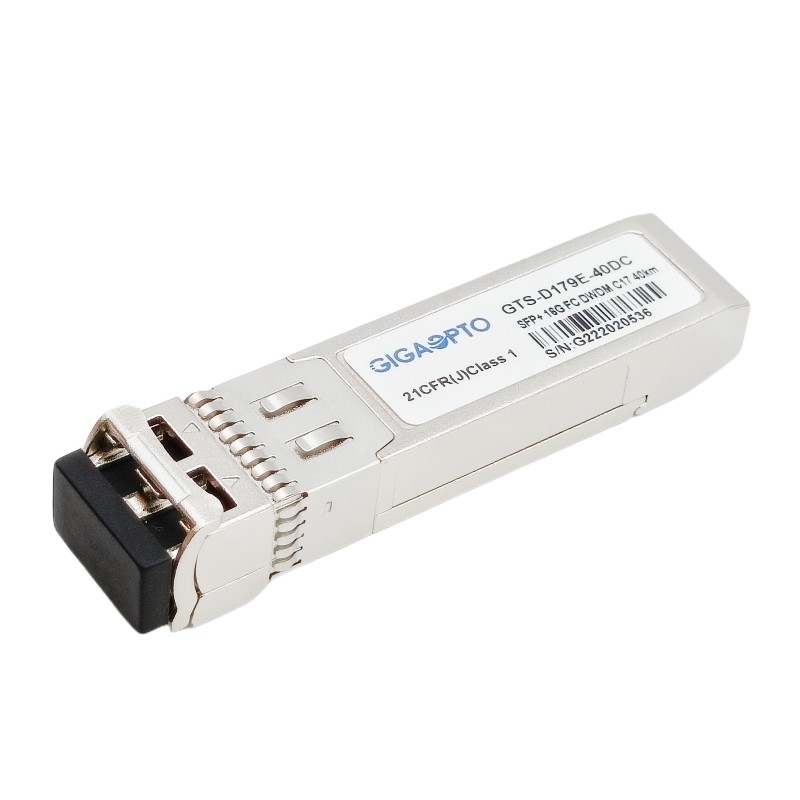

16G SFP+ C-band DWDM 40km Fiber Channel Optical Transceiver Module SMF
Description
Gigaopto’s 16GBase-DWDM SFP+ optical transceiver is designed for fiber channel application throughput up to 40km over single-mode fiber (SMF) using a DWDM wavelength channel (C17-C61) via an LC connector. It is built to meet MSA standards and is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
Specification
| Form Factor | SFP+ | Max Data Rate | 14.025Gbps |
| Wavelength | DWDM C17-C61 | Max Cable Distance | 40km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML DWDM | Receiver Type | PIN |
| TX Power | -1~+3dBm | Receiver Sensitivity | <-14dBm |
| Extinction Ratio | >8.2dB | Receiver Overload | >0.5dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Warranty | 3 Years |
| OEM/ODM | Supported |
Features
Application
