Product Details:
|
| Product Name: | 16G SFP+ | Speed(Gbps): | 16G |
|---|---|---|---|
| Wavelength: | CWDM | Distance: | 10km |
| Media Type: | SMF | Connector: | LC Simplex |
| Keywords: | 16G CWDM Fiber Channel Transceiver | ||
| Highlight: | 16G SFP+ Fiber Channel Module,SMF Fiber Channel Module,10km Optical Transceiver |
||

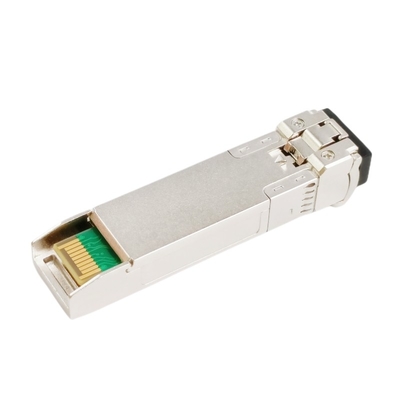

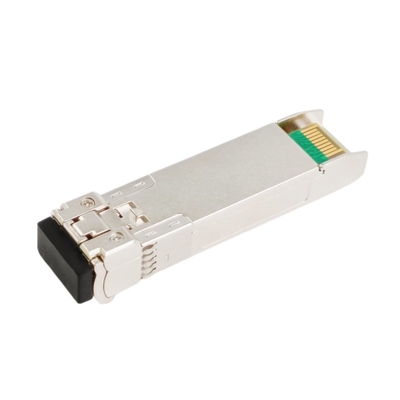

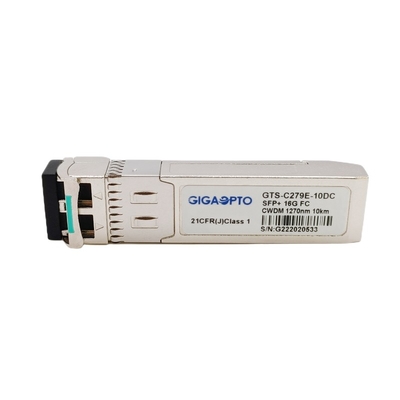

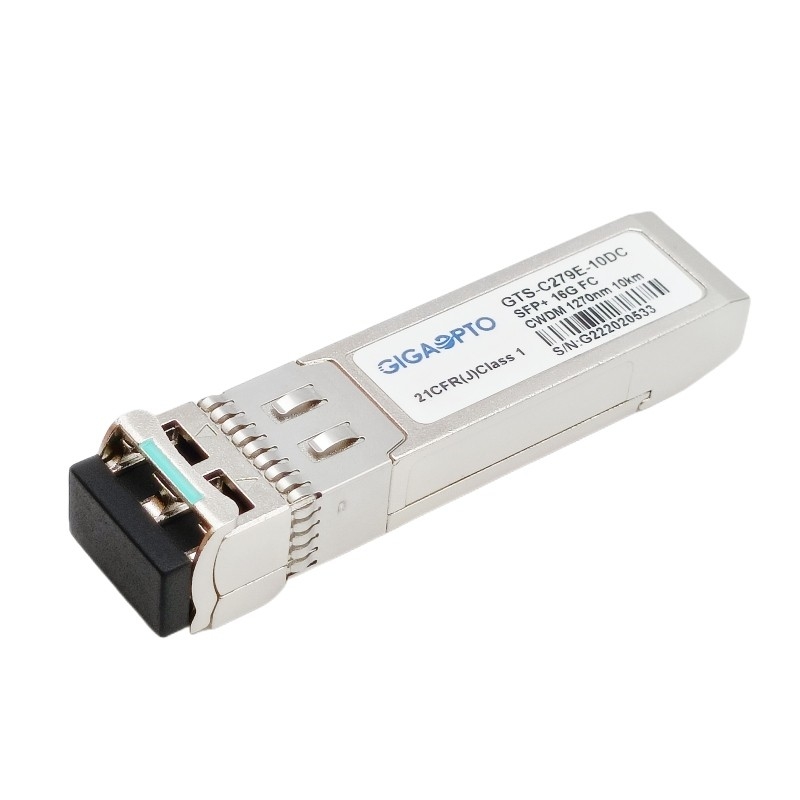

16G SFP+ CWDM 1270nm-1610nm 10km Fiber Channel Optical Transceiver Module SMF
Description
Gigaopto's 16GFC CWDM SFP+ LW optical transceiver modules are designed for data center storage area network, and support 16G Fibre Channel links reach up to 10km over SMF.
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 10KM transmission distance with SMF. The transceiver consists of three sections: a DML laser transmitter, a PIN/APD photo-detector integrated with a trans-impedance amplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Specification
| Form Factor | SFP+ | Max Data Rate | 14.025Gbps |
| Wavelength | 1270nm~1610nm CWDM DFP | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -3.0 ~ +2.0 dBm | Receiver Sensitivity | ≤ -11.5 dBm |
| Extinction Ratio | >3.5dB | Receiver Overload | >0.5dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Warranty | 3 Years |
| OEM/ODM | Supported |
Features
Application
