Product Details:
|
| Product Name: | SFP-8GFC-ER | Max Rate(Gbps): | 8.5Gbps |
|---|---|---|---|
| Wavelength: | 1550nm | Max Transmission: | 40km |
| LD/PD: | EML/PIN | Connector: | Duplex LC PC |
| Temperature: | 0 To 70°C | Optical Budget: | 16dB |
| Keywords: | 8GFC ER SFP+ Transceiver, 8G Fiber Channel 40km 1550nm | ||
| Highlight: | SFP+ Fiber Channel Module,8GFC Fiber Channel Module,Module SMF 1550nm |
||
8G Fibre Channel SFP+ ER Transceiver for SAN Switches and Servers 1550nm EML 40km SMF LC DOM
Description

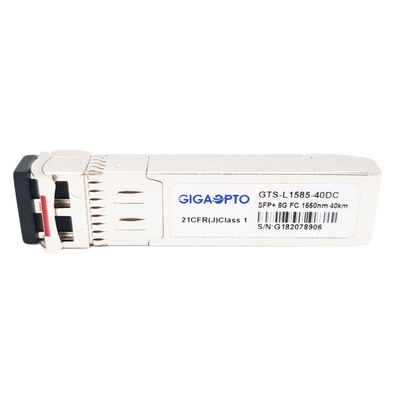

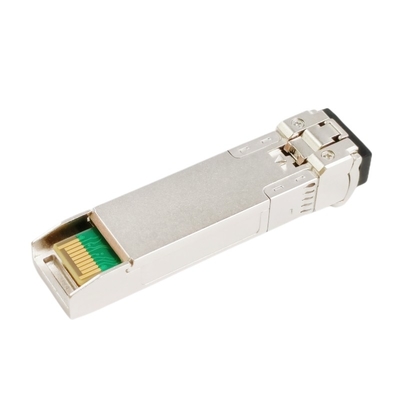

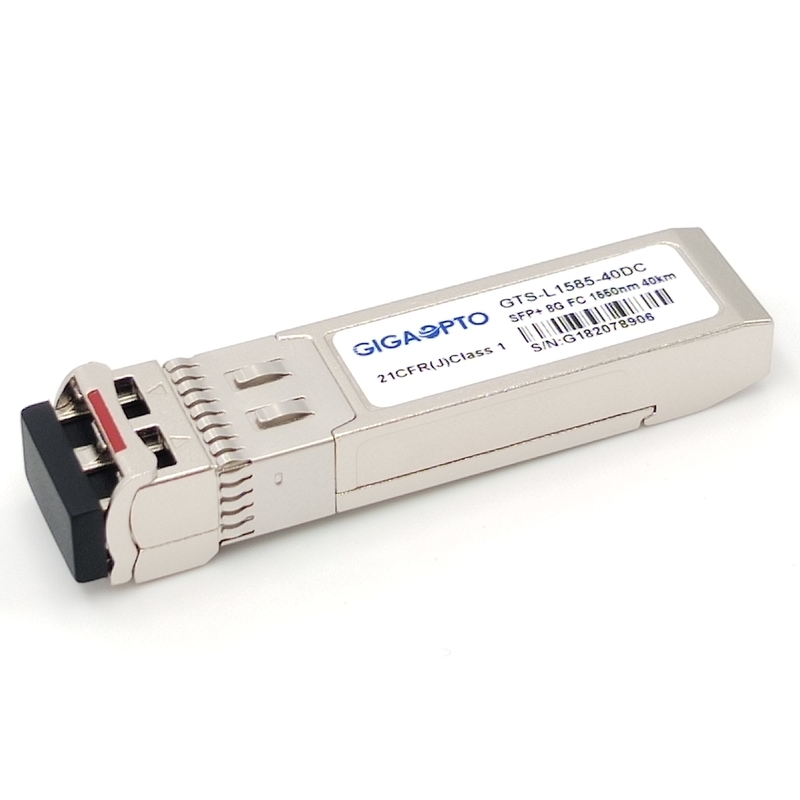

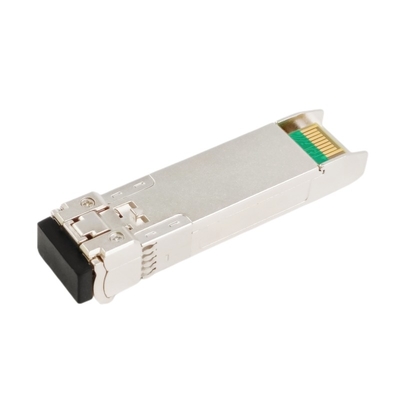

Gigaopto’s GTS-L1585-40DC optical transceiver is a dual fiber 8.5Gbps SFP+ module designed for use in Data Center 8G Fibre Channel Storage Network. It provides 8Gb/s throughput up to 40km over single-mode fiber (SMF) using 1550nm wavelength.
The transmitter section incorporates a reliable 1550nm cooled EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.
This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA) and FCIA FC-PI-4 800-SM-LC-L standard.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Specification
| Packaging | SFP+ | Max Bit-Rate | 8.5Gbps |
| Wavelength | 1550nm | Max Reach | 40km |
| Connector | LC Duplex | Fiber Type | SMF |
| LD Type | EML | PD Type | PIN |
| TX Power | -1~2dBm | Rx Sensitivity | <-15.5dBm |
| Extinction Ratio | >6 dB | Overload | >0.5dBm |
| Temperature | 0 to 70°C (32 to 158°F) | Warranty | 3-year |
| Digital monitoring | Support (default) | Protocol | MSA Compliant |
Features
Application
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1530 | 1550 | 1565 | nm | ||
| Spectral Width(-20dB) | Δλ | 1 | nm | ||||
| Side-Mode Suppression Ratio | SMSR | 30 | - | dB | |||
| Average Output Power | Pout | -1 | +2 | dBm | 1 | ||
| Extinction Ratio | ER | 6.0 | dB | ||||
| Data Input Swing Differential | VIN | 180 | 850 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | ||
|
TX Disable |
Disable | 2.0 | Vcc | V | |||
| Enable | 0 | 0.8 | V | ||||
|
TX Fault |
Fault | 2.0 | Vcc | V | |||
| Normal | 0 | 0.8 | V | ||||
| Receiver | |||||||
| Centre Wavelength | λc | 1260 | 1600 | nm | |||
| Receiver Sensitivity | -15.5 | dBm | 3 | ||||
| Receiver Overload | 0.5 | dBm | 3 | ||||
| LOS De-Assert | LOSD | -17 | dBm | ||||
| LOS Assert | LOSA | -28 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
| Data Output Swing Differential | Vout | 300 | 900 | mV | 4 | ||
|
LOS |
High | 2.0 | Vcc | V | |||
| Low | 0.8 | V | |||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 231-1 test pattern @10.3Gbps, BER ≤1×10-12.
4. Internally AC-coupled.
Compatibility
In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to our customers.
For this 8GFC EW 1550nm 40km GTS-L1585-40DC compatibility, please refer to the P/N correspondence table. If you can't find the brand or part number you are looking for in the list below,please let us know and we will be delighted to provide you with more details..
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-L1585-40DC | Cisco | DS-SFP-FC8G-ER |
| Brocade | XBR-8GFC-40KM | Dell | |
Mechanical Dimensions
