Product Details:
|
| Product Name: | 8GFC Fiber Channel Transceiver | Form Factor: | SFP+ |
|---|---|---|---|
| Max Data-rate: | 8.5Gbps | Wavelength: | 1310nm |
| Link Distance: | 10km | Media: | SMF |
| Connector: | LC-Duplex | Keywords: | 8G Fiber Channel SFP+ LW Transceiver |
| Highlight: | 8GFC DOM Transceiver Module,1310nm DOM Transceiver Module,sfp lw |
||

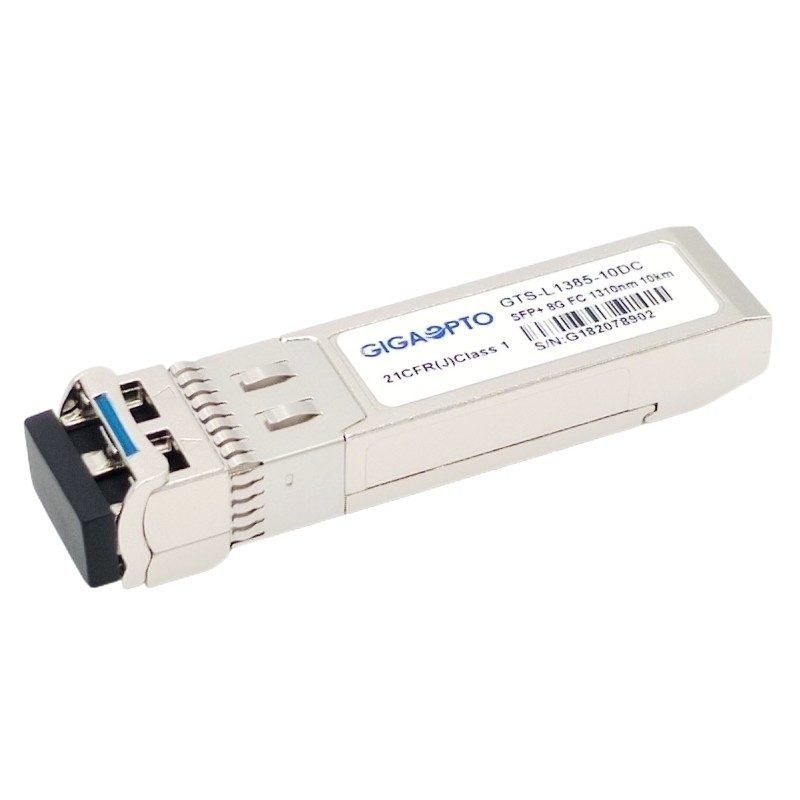

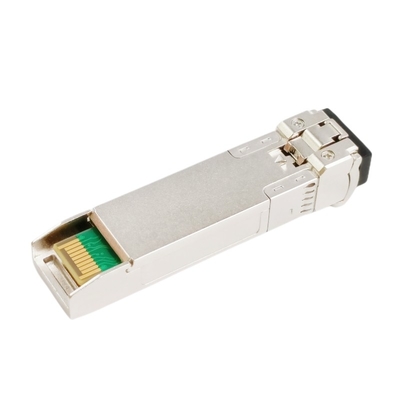

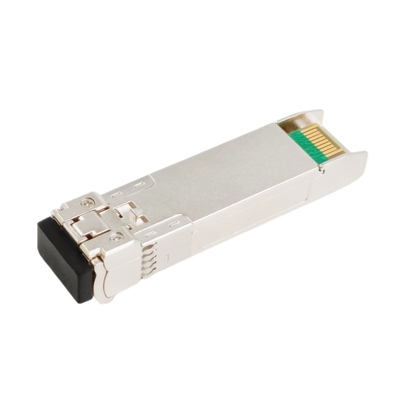

SFP+ 8Gbps 1310nm 10km Fiber Channel Optical Transceiver DOM
Description
Gigaopto’s 8GFC Longwave SFP+ transceivers are designed for use in Fiber Channel throughout 8.5Gbps link up to 10km over MMF with duplex LC connector.
The 8GFC LW transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
They are compliant with FCPI-4 Rev. 8.00 and SFF-8472 Rev 10.2 and compatible with SFF-8431.
Digital diagnostics functions are available via a 2-wire serial interface,as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
The optical transceiver is RoHS compliant and CE/FCC certificated.
Specification
| Package | SFP+ | Max Bit Speed | 8.5Gbps |
| Center Wavelength | 1310nm | Max Distance | 10km |
| Interface | LC Duplex | Media Type | SMF |
| Laser Type | DFB | Receiver Type | PIN |
| TX Power (8Gbps) | -6.5~0.5dBm | Rx Sensitivity (8Gbps) | <-14.4dBm |
| TX Power (4Gbps) | -6.5~-1dBm | Rx Sensitivity (4Gbps) | <-14.4dBm |
| TX Power (2Gbps) | -8~-3dBm | Rx Sensitivity (2Gbps) | <-14.4dBm |
| Temperature | 0 to 70°C (32 to 158°F) | Warranty | 3 Years |
| OEM/ODM | Supported | MSA Compliant | Yes |
Features
Applications
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1270 | 1310 | 1350 | nm | ||
| Spectral Width(-20dB) | Δλ | 1 | nm | ||||
| Side-Mode Suppression Ratio | SMSR | 30 | - | dB | |||
| Average Output Power | Pout | -6.5 | -0.5 | dBm | 1 | ||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Data Input Swing Differential | VIN | 180 | 850 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | ||
|
TX Disable |
Disable | 2.0 | Vcc | V | |||
| Enable | 0 | 0.8 | V | ||||
|
TX Fault |
Fault | 2.0 | Vcc | V | |||
| Normal | 0 | 0.8 | V | ||||
| Receiver | |||||||
| Centre Wavelength | λc | 1260 | 1600 | nm | |||
| Receiver Sensitivity | -14.4 | dBm | 3 | ||||
| Receiver Overload | 0.5 | dBm | 3 | ||||
| LOS De-Assert | LOSD | -15.5 | dBm | ||||
| LOS Assert | LOSA | -30 | dBm | ||||
| LOS Hysteresis | 0.5 | dB | |||||
| Data Output Swing Differential | Vout | 300 | 900 | mV | 4 | ||
|
LOS |
High | 2.0 | Vcc | V | |||
| Low | 0.8 | V | |||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 231-1 test pattern @8.5Gbps, BER ≤1×10-12.
4. Internally AC-coupled.
Compatibility
Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer a 3-year warranty.
For this 8GFC 1310nm 10km P/N GTS-L1385-10DC, please refer to the P/N correspondence table.If you need more compatibility, please don’t hesitate to let us know.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-L1385-10DC | Brocade | XBR-000153 |
| Cisco | DS-SFP-FC8G-LW | HPE | AJ717A |
| Dell | 330-4328 | IBM | 45W1216 |
Mechanical Dimensions
