10GBASE-LR-I SFP+ Optical Transceiver Module SMF 1310nm 10km LC DOM Industrial -40 To 85°C

SFP+ Module 10GbE Single Mode Fiber SMF Optical Transceiver

10GE Gigabit Ethernet SFP+ 1310nm 10km LC DDM

Description

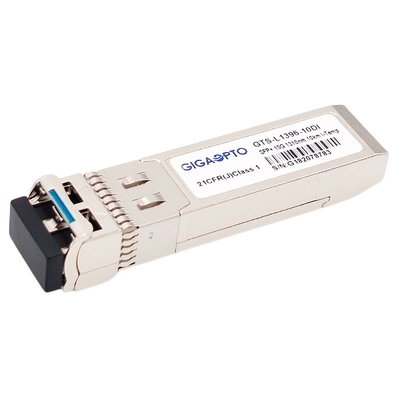

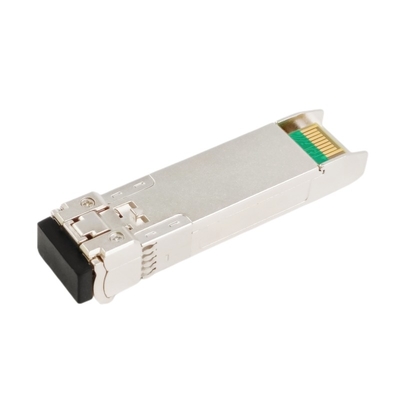

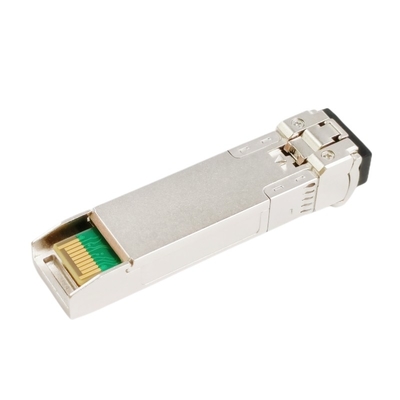

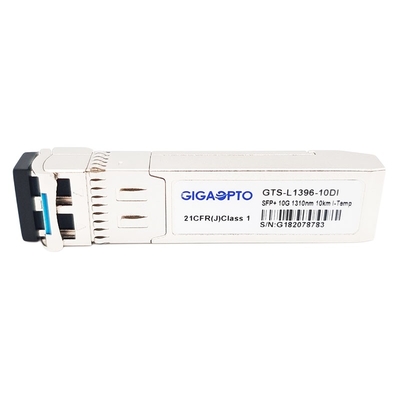

Gigaopto's GTS-L1396-10DI 1310nm DFB 10Gb/s SFP+ transceiver module is designed for use in 10 Gigabit Ethernet links up to 10km over LC duplex connector using single mode fiber (SMF). They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L.

Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring an operating temperature range of -40°C to 85°C, this industrial fiber optic transceiver can work in harsh industrial environments, such as telecommunication, data processing & management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.

Each SFP+ 10GBASE-LR-I transceiver is 100% optically inspected and tested for interoperatability/reliability/compatibility before shipping.

Specification

Features

• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• Supports 9.95 to 10.5Gb/s bit rates
• Power dissipation < 1W
• Single 3.3V power supply
• Maximum link length of 10km
• Uncooled 1310nm DFB laser,PIN photo-detector
• Duplex LC connector
• Built-in digital diagnostic functions
• Metal enclosure, for lower EMI
• Industrial temperature range:-40 to 85°C
• RoHS compliant and lead-free

Application

• 10GBASE-LR/10GBASE-LW Ethernet
• 10G Fiber Channel
• 10GbE Data Center Switches and Routers

Compatibility

All Gigaopto’s transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.

For this SFP+ 10G LR Industrial GTS-L1396-10DI, please refer to the P/N correspondence table. For more product compatibility, please feel free to tell us.
