Product Details:
|
| Product Name: | BIDI XFP ELR | Distance: | 20km |
|---|---|---|---|
| Wavelength: | TX_1330nm / RX_1270nm | Components: | DFB+PIN |
| Connector: | Simplex LC UPC | Keyword: | BIDI XFP ELR, XFP BIDI ELR |
| Highlight: | ELR Optical Transceiver Module,LC DOM Optical Transceiver Module,20km Other Optical Transceiver Module |
||

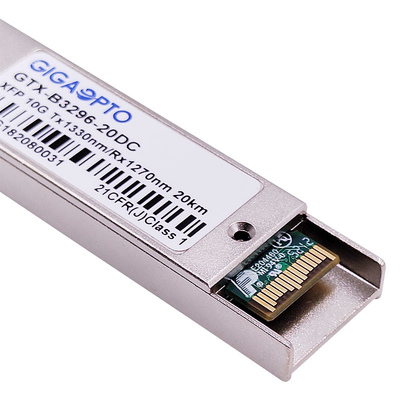

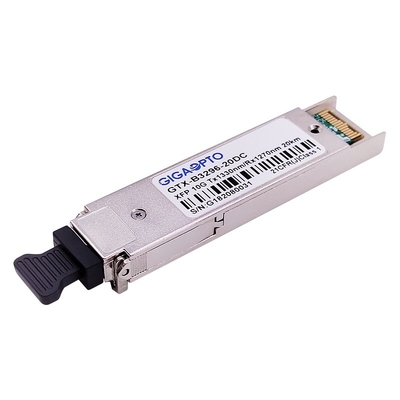

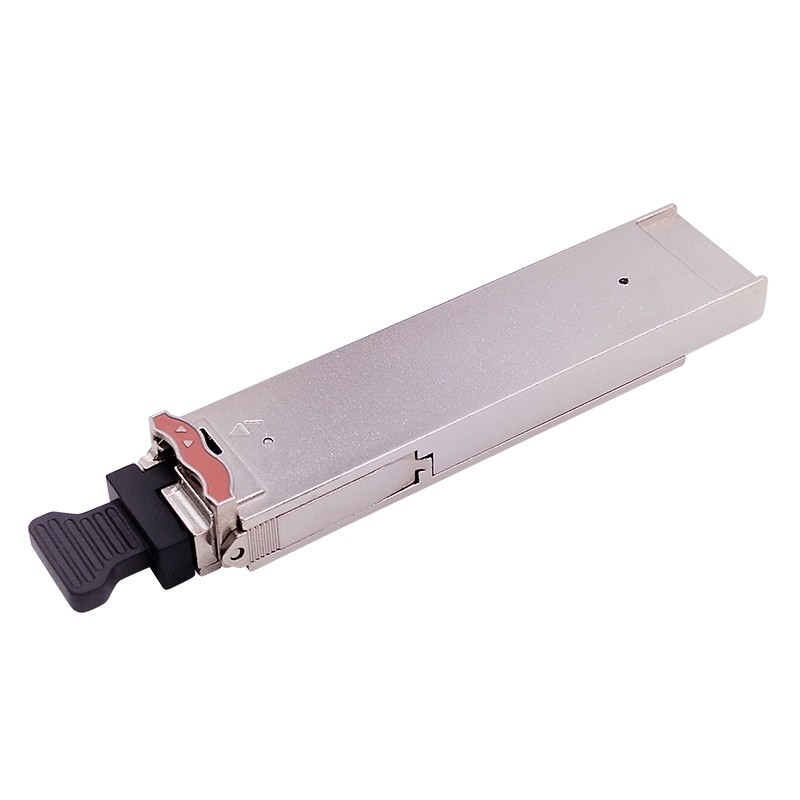

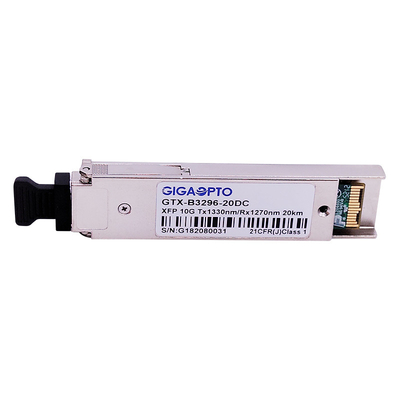

10Gbps BIDI XFP eLR Transceiver Module 1270nm/1330nm 20km LC DOM
Description
This BIDI XFP eLR optical transceiver module is a single fiber bidirectional 10.3Gbps Form-factor Pluggable (XFP) BIDI module for use in 10GBASE Ethernet.
It features a highly reliable 1330nm DFB transmitter and 1270nm PIN photo-detector, and provides max link up to 20km with a simplex LC connector.
This BIDI XFP eLR transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-BR10 and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is a simplex LC connector. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). The BIDI XFP eLR is also a Class 1 laser product that complies with FDA/CDRH and IEC-60825 standards.
Specification
| Product Name | BIDI XFP eLR | Part Number | GTX-B3296-20DC |
| Package Type | XFP | Bandwidth | 8.5 Gbit/s - 11.1 Gbit/s |
| Center Wavelength | TX1330nm /RX1270nm | Distance | 20km on G.652 |
| Interface | Simplex LC UPC | Cable Type | SMF |
| TX Type | DFB | RX Type | PIN photo-detector |
| TX Output Power (dBm) | -2 ~ 3dBm | RX Sensitivity | < -14dBm |
| Ext. Ratio | > 3.5 dB | RX Overload | > 0.5 dBm |
| Power Budget (dB) | 12 dB | CDR | Dual Tx & Rx |
| Power Consumption | <1.5W | Operating Case Temperature | 0 to 70°C / -40 to 85°C |
| DDM/DOM | Yes | OEM/ODM | Support |
| Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64 | ||
Features
Applications
