Product Details:
|
| Product Name: | XFP BIDI Transceiver Module | Reach: | 10km |
|---|---|---|---|
| Wavelength: | TX_1330nm / RX_1270nm | Data Rate: | 10Gbps |
| Applicatioin: | 10G Ethernet/10GFC | Keywords: | XFP BIDI, XFP WDM |
| Highlight: | LC DOM XFP Transceiver Module,BIDl XFP Transceiver Module,10km Other Optical Transceiver Module |
||

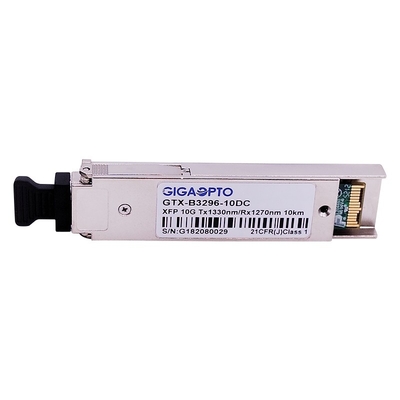

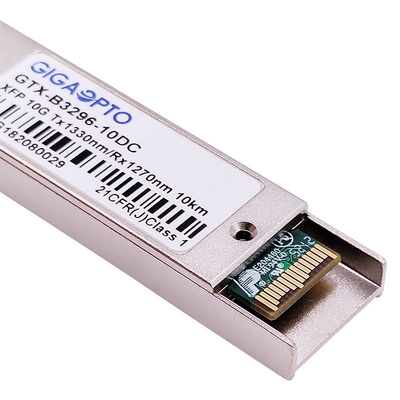

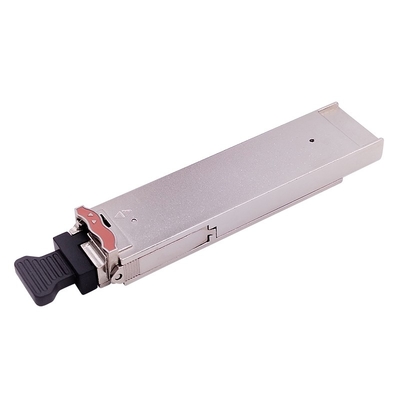

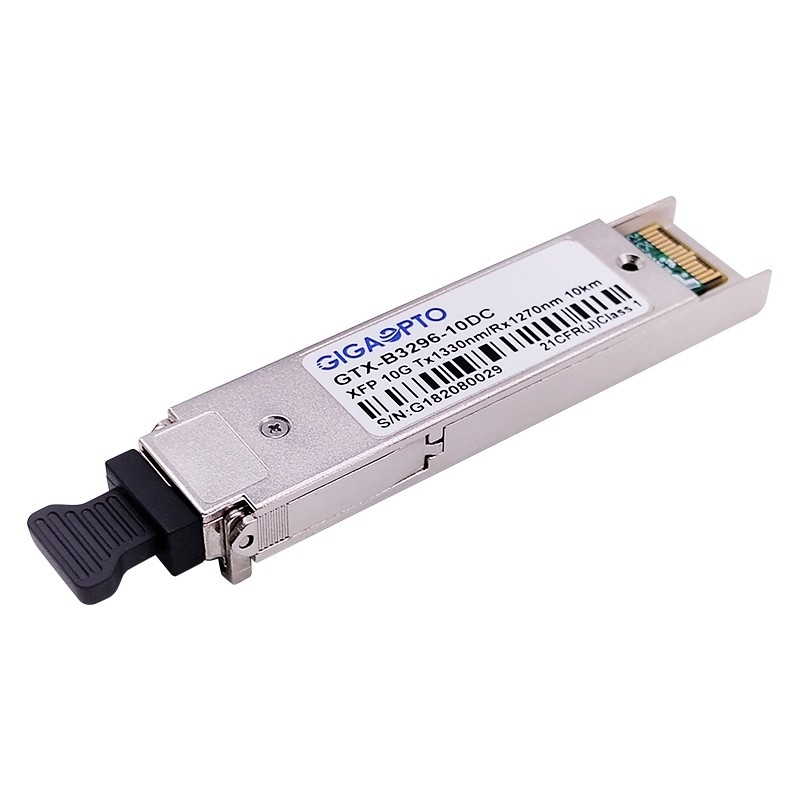

10Gbps XFP BIDl Transceiver Module 1330nm/1270nm 10km LC DOM
Description
Gigaopto’s XFP BIDl transceiver is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver. The transmitter section uses a 1330nm DFB, and the receiver section uses a 1270nm PIN photodiode receiver, which provides 10km transmission over single strand single mode fiber (G.652 SMF).
It supports DDM/DOM optical diagnostics, by providing diagnostic information about the present operating conditions.
Specification
| Product Name | XFP BIDI | P/N | GTX-B3296-10D |
| Form Factor | XFP | Data Rate(Gbps) | 10Gbps |
| Center Wavelength | 1330nm -TX/1270nm -RX | Reach | 10km |
| Connector | Simplex LC | Media Type | SMF |
| Transmitter Part | DFB | Receiver Part | PIN photo-detector |
| TX Average Power | -5 ~ 0dBm | RX Sensitivity | < -14dBm |
| Ext. Ratio | > 3.5 dB | Saturation Input Power | > 0.5 dBm |
| Power Dissipation | <1.5W | Operating Case Temperature | 0 to 70°C / -40 to 85°C |
| Diagnostic (DDM/DOM) | Support (default) | OEM/ODM | Support |
Features
Applications
