Product Details:
|
| Product Name: | 10GBASE-BX XFP | Transmission: | 10km |
|---|---|---|---|
| Wavelength: | 1270nm-TX / 1330nm-RX | Component: | DFB+PIN |
| Connector: | LC | Keyword: | 10GBASE-BX XFP |
| Highlight: | 10GBASE-BX Bidirectional Optical Transceiver,XFP Bidirectional Optical Transceiver,Bidirectional Other Optical Transceiver Module |
||

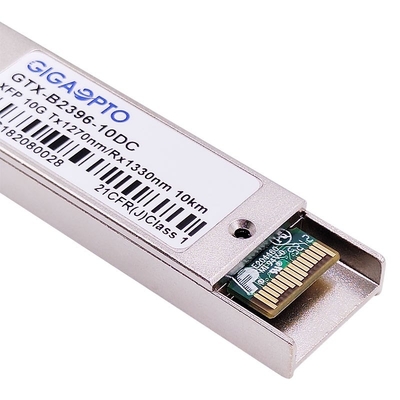

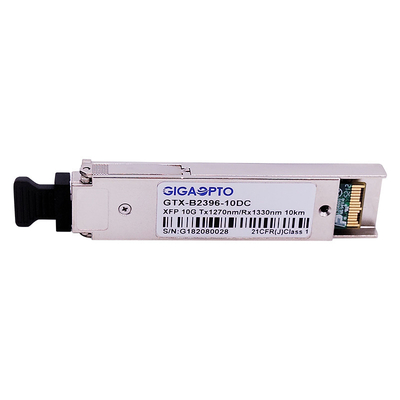

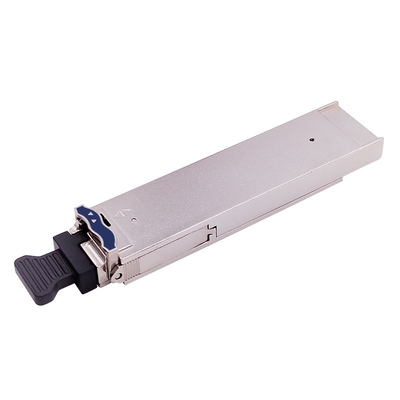

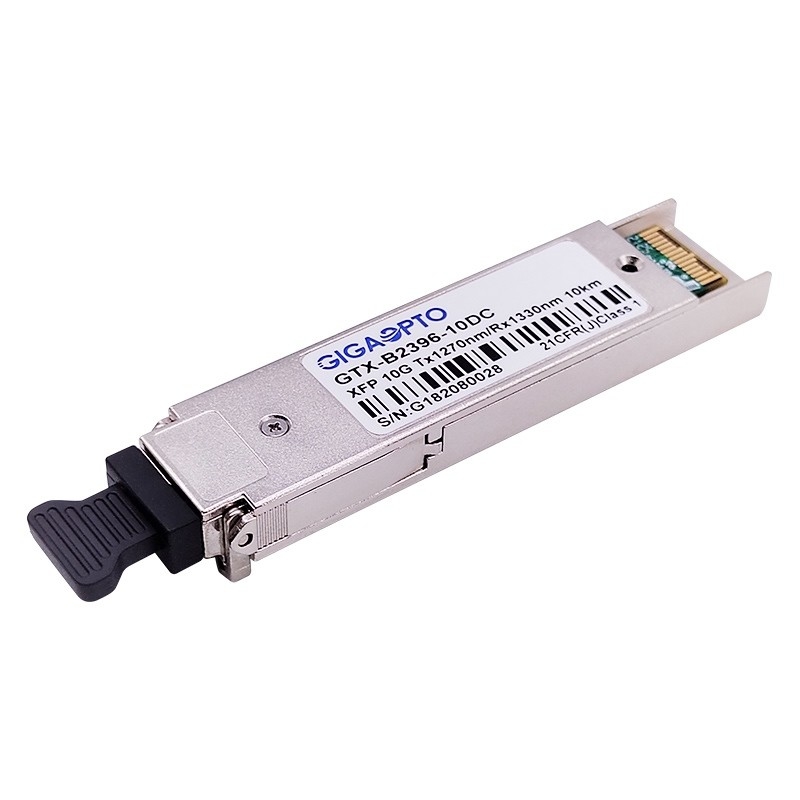

10GBASE-BX XFP Bidirectional Transceiver 1270nm/1330nm 10km LC DOM
Description
Gigaopto’s10GBASE-BX XFP is a hot-pluggable XFP Bi-Directional transceiver module.
The transmitter section uses a 1270nm DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses a 1330nm PIN photodiode receiver, which provides 10km transmission over single strand single mode fiber (G.652 SMF).
Digital diagnostic monitoring (DDM) functions are available via an I2C interface, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
The 10GBASE-BX XFP complies with XFP MSA Rev 4.5 specifications, 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel (1200-SM-LL-L). The transceiver is also a Class 1 laser product that complies with FDA/CDRH and IEC-60825 standards.
Specification
| Product Name | 10GBASE-BX XFP | Part Number | GTX-B2396-10DC |
| Form Factor | XFP | Bit Rate(Gbps) | 10Gbps |
| Center Wavelength | 1270nm -TX/1330nm -RX | Transmission | 10km |
| Connector | LC Simplex | Cable Type | SMF |
| Transmitter Part | DFB BiDi | Receiver Part | PIN |
| TX Power | -5 ~ 0dBm | Receiver Sensitivity | < -14dBm |
| Extinction Ratio | > 3.5 dB | Overload Power | > 0.5 dBm |
| Power Consumption | <1.5W | Operating Case Temperature | 0 to 70°C / -40 to 85°C |
| DDM/DOM | Support (default) | Warranty Limited Time | 3 years |
Features
Applications
10GBASE-BX XFP Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| Power Budget | 9 | dB | |||
| Data Rate | 9.95 | 11.3 | Gbps | ||
| Transmitter | |||||
| Centre Wavelength | λC | 1260 | 1270 | 1280 | nm |
| Spectral Width (-20dB) | Δλ | 1 | nm | ||
| Side Mode Suppression Ratio | SMSR | 30 | dB | ||
| Average Output Power*note3 | Pout, AVG | -5 | 0 | dBm | |
| Extinction Ratio | ER | 3.5 | dB | ||
| Average Power of OFF Transmitter | -30 | dBm | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | ||
| TX Disable Assert Time | t_off | 10 | us | ||
| Receiver | |||||
| Centre Wavelength | λC | 1320 | 1340 | nm | |
| Sensitivity*note4 | PIN | -14 | dBm | ||
| Receiver Overload | PMAX | 0.5 | dBm | ||
| LOS De-Assert | LOSD | -16 | dBm | ||
| LOS Assert | LOSA | -28 | dBm | ||
