Product Details:
|
| Product Name: | 16GFC Bidirectional Transceiver | Bit-rate(Gbps): | 14.025Gbps |
|---|---|---|---|
| Wavelength: | TX1330/RX1270nm | Distance: | 10km |
| Optical Component: | DFB/PIN | Interface: | Simplex LC |
| Keywords: | 16GFC BIDI 10km | ||
| Highlight: | OEM Fiber Channel Module,TX1330 Fiber Channel Module,LC Optical Transceiver Module |
||

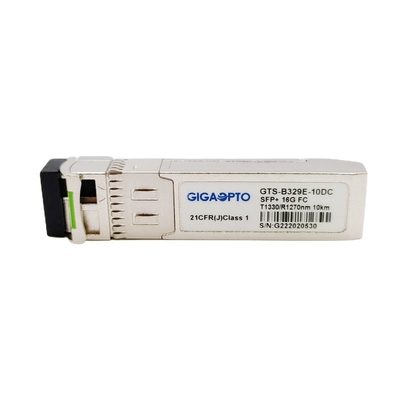

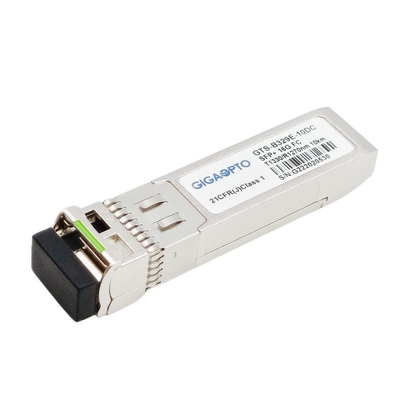

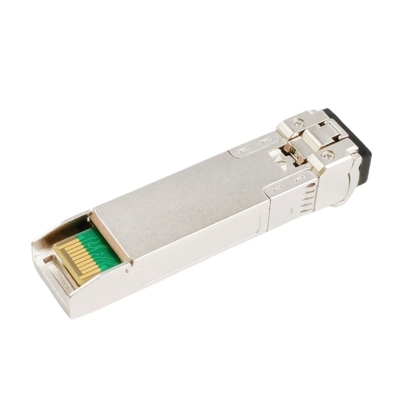

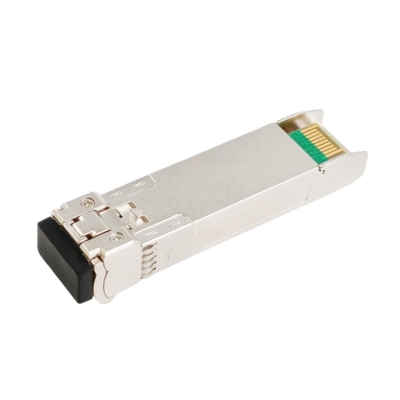

16GFC SFP+ Bidirectional Transceiver TX1330/RX1270nm 10km LC DOM
Description
The 16GFC SFP+ Bidirectional TX1330/RX1270nm module transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 10km transmission distance with Single mode fiber (SMF).The transceiver consists of three sections:a DFB laser transmitter,a PIN photodiode integrated with a trans-impedance amplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Specification
| Form Factor | SFP+ | Max Data Rate | 16Gbps |
| Wavelength | TX1330/RX1270nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -3~+2dBm | Receiver Sensitivity | -12dBm |
| Extinction Ratio | 3.5dB | Receiver Overload | 0.5dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Warranty | 3 Years |
| OEM/ODM | Supported |
