Product Details:
|
| Product Name: | 16GFC BiDi SFP | Bit-Category(Gbps): | 16G |
|---|---|---|---|
| Wavelength: | TX1270/RX1330nm | Distance: | 10km |
| Optical Component: | DFB/PIN | Interface: | Single LC |
| Keywords: | 16G Fiber Channel Bidirectional, 16G SFP+ Module | ||
| Highlight: | RX1330nm Fiber Channel Module,TX1270 Fiber Channel Module,16G SFP+ Transceiver Module |
||

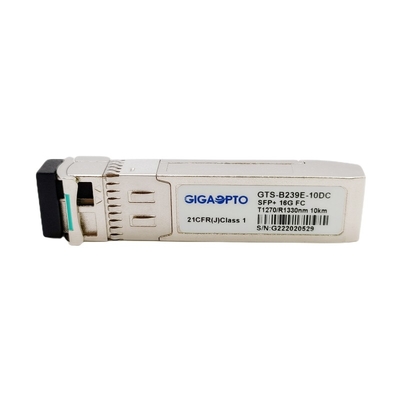

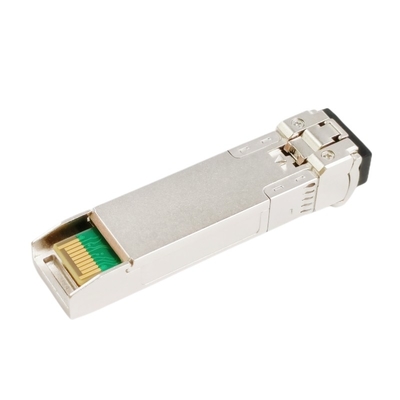

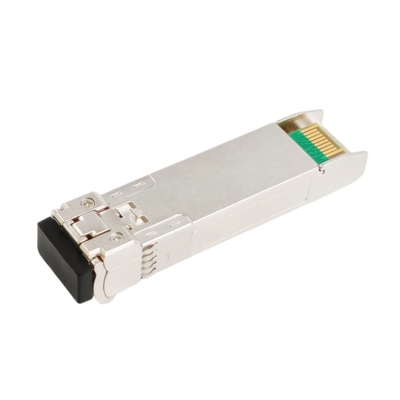

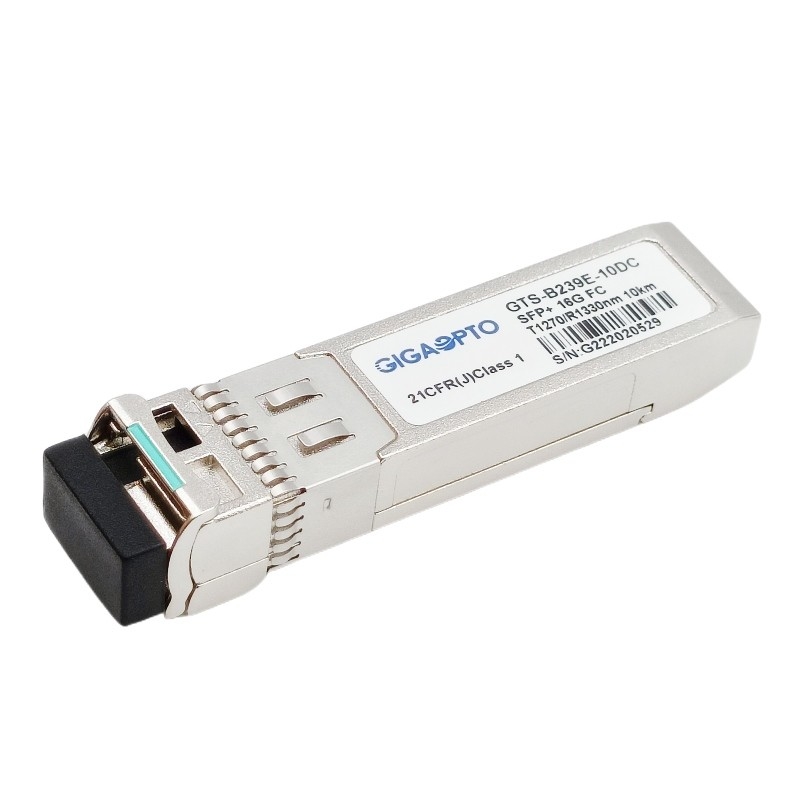

16GFC SFP+ Bidirectional Transceiver TX1270/RX1330nm 10km LC DOM
Description
Gigaopto’s 16FC BiDi SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 10km transmission distance over single mode fiber (SMF).
The transceiver consists of three sections:a reliable DFB laser transmitter,a high sensitive PIN photodiode integrated with a trans-impedance amplifier (TIA) and MCU control unit.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Specification
| Packaging /Technology | SFP+ BiDi | Data Rate | 14.025Gb/s |
| Wavelength | TX1270/RX1330nm | Max Cable Distance | 10km |
| Connector | Simplex LC receptacle | Media | Single mode fiber |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -3~+2dBm | Receiver Sensitivity | <-11.1dBm |
| Extinction Ratio | >3.5dB | Receiver Overload | >0.5dBm |
| Temperature Range | 0 to 70°C (32 to 158°F) | Warranty | 3 years |
| OEM/ODM | Supported | MTBF | 1,000,000Hours |
| Protocols | MSA Compliant | ||
| Supported Applications | 4G/8G/16G Fibre channel | ||
Features
Application
