Product Details:
|
| Product Name: | 10GFC SFP LW | Max Speed(Gbps): | 10.518Gbps |
|---|---|---|---|
| Wavelength: | 1310nm | Transmission: | 10km |
| Optical Component: | DFB/PIN | Interface: | Dual LC |
| DDMI: | Supported | Temperature: | -5 To 85°C (23 To 185°F) |
| Keywords: | 10GFC SFP+ Transceiver 10km | ||
| Highlight: | 10G FC Fiber Channel,SFP+ FC Fiber Channel,FC Fiber Channel Transceiver |
||

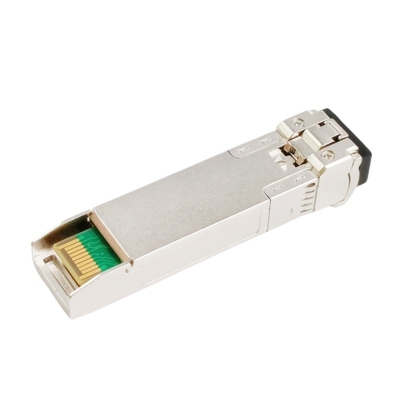

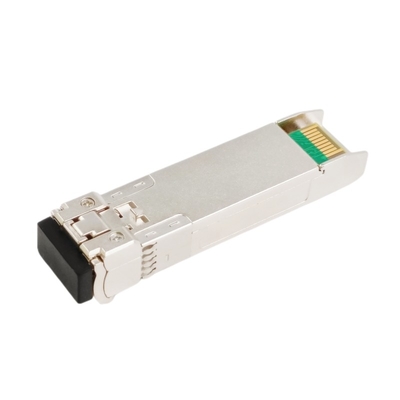

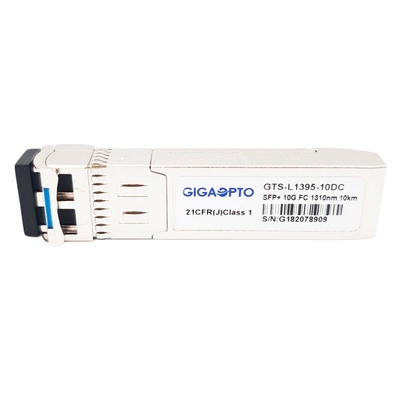

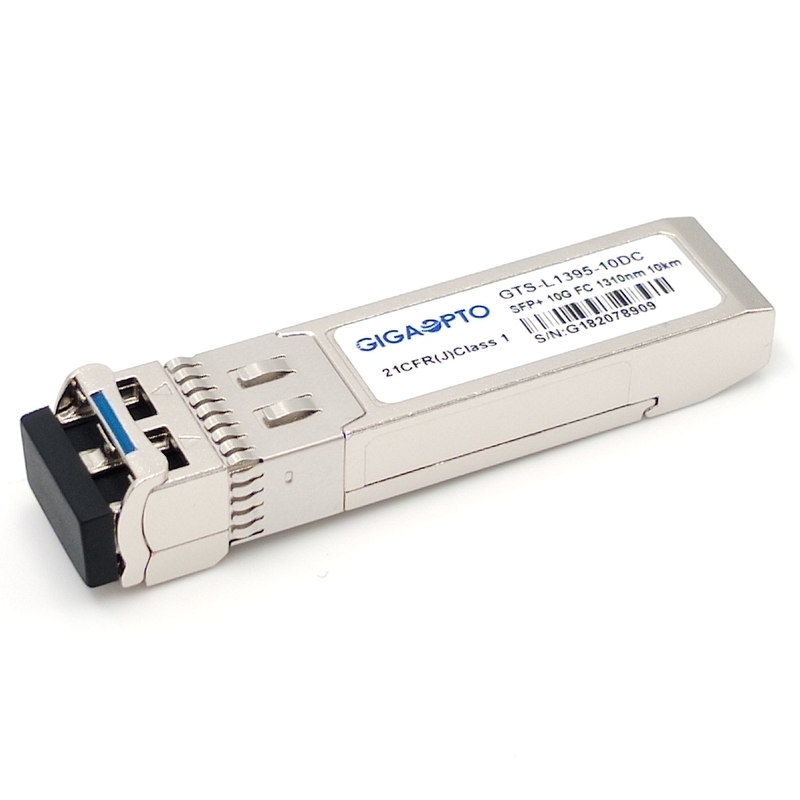

10GFC Fiber Channel SFP+ 1310nm 10km DOM LC SMF
Description
Gigaopto’s GTS-L1395-10DC transceiver features a highly reliable 1310nm DFB transmitter and PIN photo-detector into a duplex LC optical connector.Its max transmission can reach up to 10km over G.652 single mode fiber (SMF).
It is designed for use in 10Gbps serial applications such as SONET OC192/SDH STM64, 10Gigabit Ethernet and 10Gbps Fiber Channel applications. It operates with single +3.3V power supply. The transceiver conforms to the 10Gbps SFP+ multi-source agreement (MSA).
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
All modules are Class 1 laser products that comply with FDA/CDRH and IEC-60825 standards.
Specification
| Form Factor | SFP+ | Max Data Rate | 10.51875Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB 1310nm | Receiver Type | PIN |
| TX Power | -6~0dBm | Receiver Sensitivity | <-14.4dBm |
| Temperature Range | -5 to 85°C (23 to 185°F) | Warranty | 3 Years |
| OEM/ODM | Supported | DOM | Supported |
| Protocols | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA | ||
| Supported Applications |
10GBASE-LR/10GBASE-LW Ethernet 10G Fiber Channel 10GbE Data Center Switches and Routers |
||
Features
Application
Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1270 | 1310 | 1350 | nm | |||
| Spectral Width(-20dB) | Δλ | 1 | nm | |||||
| Side-Mode Suppression Ratio | SMSR | 30 | - | dB | ||||
| Average Output Power | Pout | -6.0 | 0 | dBm | 1 | |||
| Extinction Ratio | ER | 3.5 | dB | |||||
| Data Input Swing Differential | VIN | 180 | 850 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
|
TX Disable |
Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
|
TX Fault |
Fault | 2.0 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1600 | nm | ||||
| Receiver Sensitivity | -14.4 | dBm | 3 | |||||
| Receiver Overload | 0.5 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -16 | dBm | |||||
| LOS Assert | LOSA | -30 | dBm | |||||
| LOS Hysteresis | 0.5 | dB | ||||||
| Data Output Swing Differential | Vout | 300 | 900 | mV | 4 | |||
|
LOS |
High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Note :
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 231-1 test pattern @10312Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
Compatibility
Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer a 3-year warranty.
For this GTS-L0895-10DC, please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-L1395-10DC | Cisco | DS-SFP-FC10G-LW |
| Juniper | XBR-000217 | ||
