Product Details:
|
| Product Name: | 8G FC Transceiver | Form Factor: | SFP+ |
|---|---|---|---|
| Wavelength: | 850nm | Reach: | 300m |
| Media: | MMF | Connector: | LC |
| Keywords: | 8G Fiber Channel, SFP+ SW Transceiver | Type: | SW SFP |
| Highlight: | SFP+ Fiber Transceiver Module,850nm Fiber Transceiver Module,SFP+ SW |
||

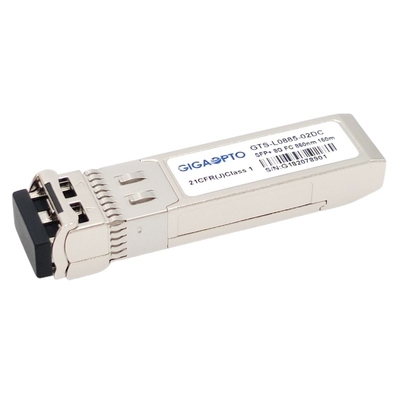

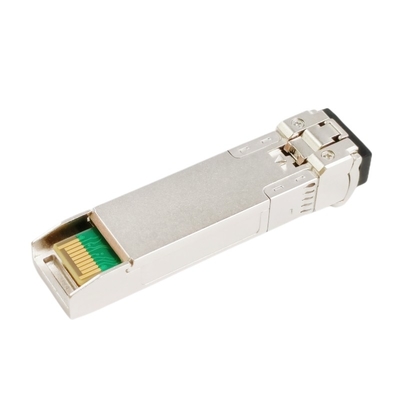

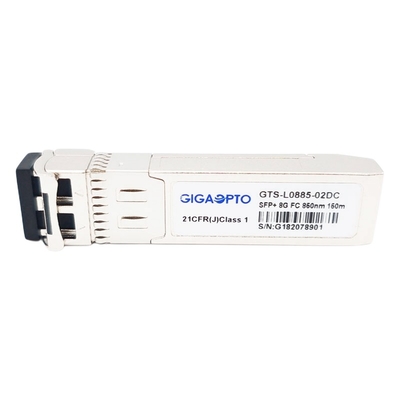

8G Fiber Channel Transceiver SFP+, 8/4/2/1G Fibre Channel, 300m
Description
This 8GFC SFP+ transceiver is designed for 8Gbps short wave Fibre channel connectivity applications,which provides link up to 300m over a Multi-mode Fiber(MMF) via duplex LC receptacle. This transceiver use top quality 850nm VSCEL Laser transmitter and PIN Photodiode receiver.
The 8G FC SFP+ SW modules are compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1.
It supports 1.0625-8.5 Gbps data rate and such applications as 8G Fiber Channel (8.5Gbps),4G Fiber Channel (4.25Gbps),2G Fiber Channel (2.125Gbps),1G Fiber Channel (1.0625Gbps).
The optical transceiver is RoHS compliant and CE/FCC certificated.
Specification
| Form Factor | SFP+ | Max Data Rate (Gbps) | 8.5Gbps |
| Center Wavelength | 850nm | Fiber Distance | 300m |
| Connector | Duplex LC | Media Type | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6~-0.5dBm | Receiver Sensitivity | <-10.5dBm |
| Extinction Ratio | >3.5dB | Overload | >0.5dBm |
| Temperature | 0 to 70°C (32 to 158°F) | Digital Diagnostic | Supported |
| OEM/ODM | Supported | Warranty | 3 years |
| Compliance | IEC/EN 61000-4-2,IEC-60825, FDA 21CFR 1040.10 and 1040.11, RoHS | ||
Features
Application
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Transmitter | |||||||
| Centre Wavelength | λc | 840 | 850 | 860 | nm | ||
| Spectral Width(RMS) | Δλ | 0.65 | nm | ||||
| Side-Mode Suppression Ratio | SMSR | - | - | - | dB | ||
| Average Output Power | Pout | -6.0 | -0.5 | dBm | 1 | ||
| Extinction Ratio | ER | 3.0 | dB | ||||
| Data Input Swing Differential | VIN | 180 | 950 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | ||
|
TX Disable |
Disable | 2.0 | Vcc | V | |||
| Enable | 0 | 0.8 | V | ||||
|
TX Fault |
Fault | 2.0 | Vcc | V | |||
| Normal | 0 | 0.8 | V | ||||
| Receiver | |||||||
| Centre Wavelength | λc | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity | -10.5 | dBm | 3 | ||||
| Receiver Overload | 0.5 | dBm | 3 | ||||
| LOS De-Assert | LOSD | -12 | dBm | ||||
| LOS Assert | LOSA | -22 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
| Data Output Swing Differential | Vout | 500 | 700 | 900 | mV | 4 | |
|
LOS |
High | 2.0 | Vcc | V | |||
| Low | 0.8 | V | |||||
Notes:
1. The optical power is launched into MMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 231-1 test pattern @8.5Gbps, BER ≤1×10-12.
4. Internally AC-coupled.
Compatibility
Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this GTS-L0885-02DC, please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTS-L0885-02DC | Brocade | XBR-000147 |
| Cisco | DS-SFP-FC8G-SW | HPE | AJ718A |
| Juniper | QFX-SFP-8GFC-SW | HPE | AJ906A |
| Intel | TXN31118D100000 | HPE | AJ716A |
| IBM | 88Y6416 | ||
