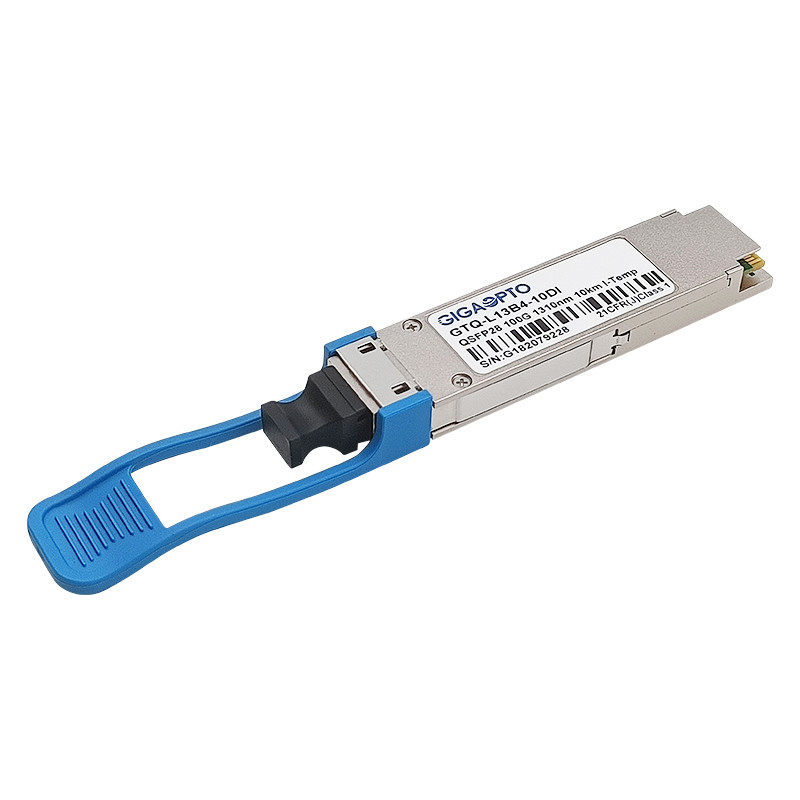

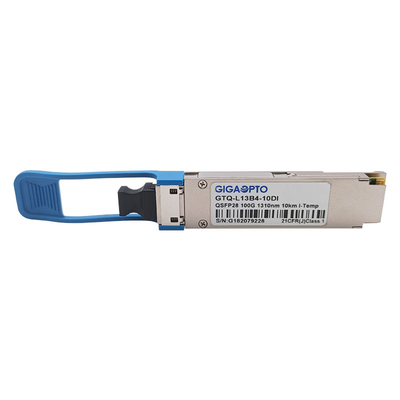

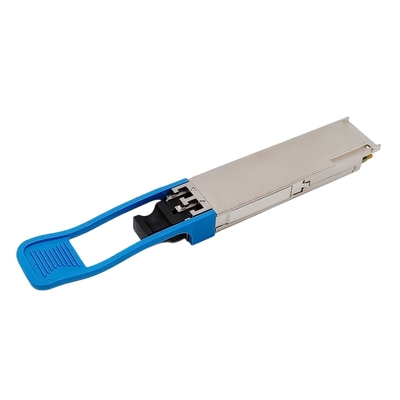

LR4 100G QSFP28 Transceiver 10km Optical Module SMF LC DOM Industrial

100Gbps LR4-I SMF Transceiver Module 10km LC DOM Industrial Operating Temperature from -40 to 85°C

Description

Gigaopto’s QSFP28-100G-LR4-I modules operate at four LAN WDM wavelengths of 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm,max link up to 10km over single mode fiber (SMF) with duplex LC connectors under the Industrial Temperature Range (-40 to 85°C /-40 to 185°F). This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standard.

Taking BOX+FPC+PCBA separate design, it has great reliability, air tightness and heat dissipation performance.

Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.

With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as telecom, service provider applications and also 5G wireless network, suitable for both outdoor and indoor deployments.

Specification

Features

• Complaint with QSFP28 Standard:SFF-8665 Revision 1.9, SFF-8636 Revision 2.6
• Complaint with IEEE802.3ba 100GBASE-LR4
• High speed I/O electrical interface (CAUI-4) complaint with IEEE802.3bm
• Maximum power consumption 4W
• LAN WDM EML laser and PIN Receiver Array
• QSFP28 MSA package with duplex LC connector
• Two Wire Serial Interface with Digital Diagnostic Monitoring
• Complies with EU Directive 2011/65/EU
• Single 3.3V Supply Voltage
• Operating case temperature range: industrial -40 to 85°C
• Class 1 Laser

Application

• 100G LR4 Ethernet links
• Data center
• Other high speed data connections

Standard

• QSFP28 MSA
• IEEE802.3ba 100GBASE-LR4
• RoHS

Compatibility

All of Gigaopto's QSFP28 100G LR4-I part number GTQ-L13B4-10DI optical transceiver modules are open sourced, can be coded to be fully compatible with mainstream devices, please refer to the following form, for more products compatibility, please feel free to contact us.
