Product Details:
|
| Item Name: | QSFP-100/112G-ER4 | Technology: | Dual Rate QSFP28 LAN WDM |
|---|---|---|---|
| Bit-Rate: | 103.1Gbps And 112Gbps | Wavelength: | 1295-1310nm |
| Connector: | LC | Max Distance: | 40km |
| Packaging: | BOX | DDM/DOM: | Supported |
| Keywords: | 100Gbps 40km QSFP28 Dual Rate For 100GBASE Ethernet And OTN4 | ||
| Highlight: | Dual Rate 100G QSFP28 Transceiver,40km 100G QSFP28 Transceiver,100GBASE ER4 |
||

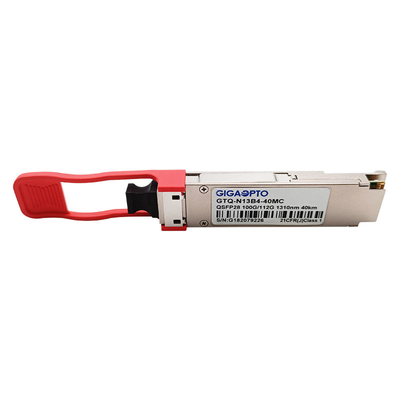

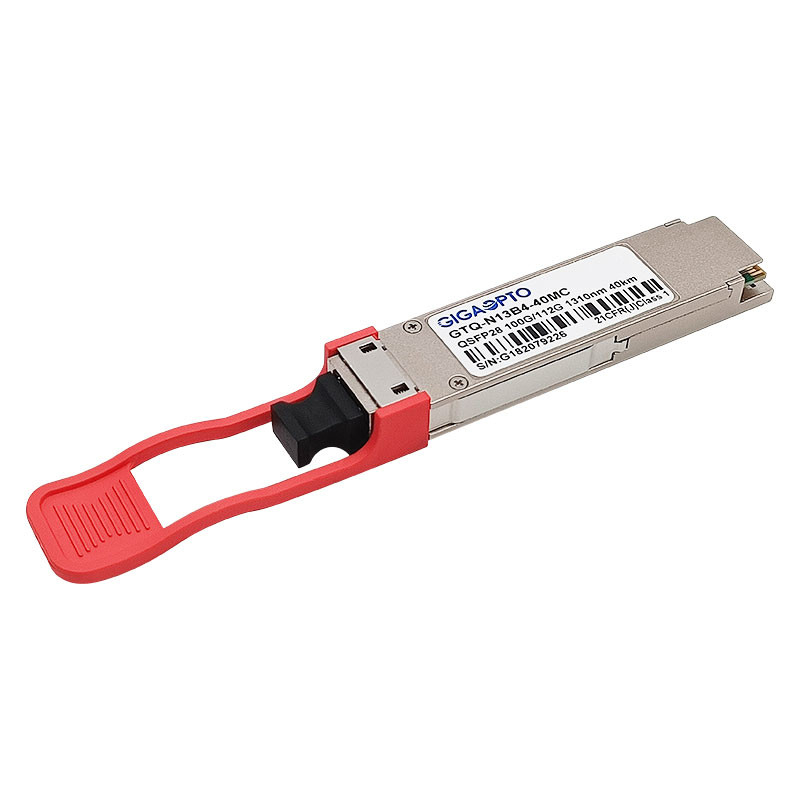

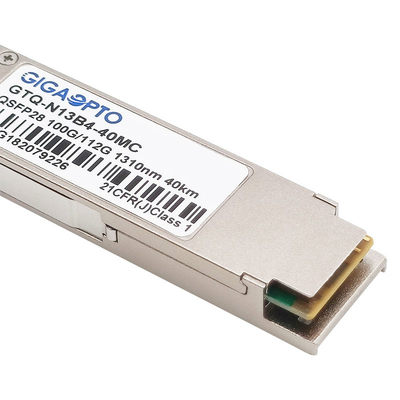

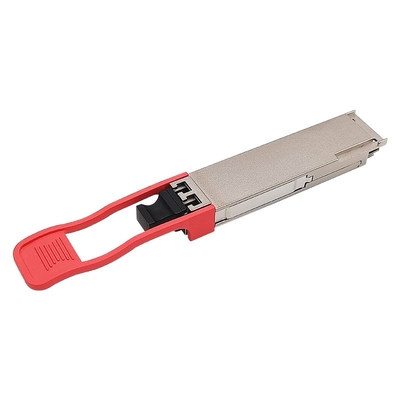

Dual Rate QSFP-100/112G-ER4 40km For 100G Ethernet 100G Telecom Connections Infiniband QDR and DDR Interconnects
Description
This QSFP-100/112G-ER4 QSFP28 Dual Rate Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces.
The module has four independent electrical input/output channels operating up to 25.78Gbps/27.95Gbps per channel. This 100/112G dual rate transceiver consists of transmitter/receiver units, with each operating on a set of 4 wavelengths on the ITU G.694.1 LAN-WDM grid near 1310nm. The transmitter path of the module incorporates 4-channel EMLs and 4-channel modulator driver. On the receiver path, 1-channel SOA, 4-channel PD arrays and 4-channel TIA arrays are used, along with the NRZ re-timer, which provides superior performance up to 40km over dual strand single mode fiber (SMF) via an duplex LC connector.
Taking BOX+FPC+PCBA separate design, it has great reliability, air tightness and heat dissipation performance.
Digital diagnostic functions are available through an I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
Specification
| Product Name | QSFP-100/112G-ER4 Transceiver | Part/ Number | GTQ-N13B4-40MC |
| Form Type/ Technology | QSFP28 LAN WDM | Bit Rate | Dual Rate 103.1Gbps / 112Gbps |
| Wavelength | 1295.6nm, 1300.1nm, 1304.6nm, 1309.1nm | Max Cable Distance | 40km |
| Interface | Duplex LC | Media Type | SMF |
| Transmitter Type | 4 x LAN WDM EML TOSA | Receiver Type | APD |
| TX Power (100G) | -2.5~2.9dBm |
RX Sensitivity (100G) | <-15dBm |
| TX Power (112G) | -1~3.3dBm |
RX Sensitivity (112G) | <-19dBm |
| RX Overload (100G) | >2.9dBm | RX Overload (112G) | >3.3dBm |
| Transmit and Dispersion Penalty | 2.5dB | Optical budget | 14dB |
| Power Dissipation | ≤4.5W | Extinction Ratio | >4dB |
| Digital Diagnostic monitoring | Supported | Operating Temperature | 0 to 70°C (32 to 158°F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | NRZ |
| Host FEC Function | Supported | OEM/ODM | Supported |
| Warranty | 3 Years | Modulation | NRZ |
| Protocols | 100G Ethernet, 100G Telecom Connections, Infiniband QDR and DDR Interconnects | ||
Features
Application
¨
Compatibility
Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this GTQ-N13B4-40MC, please refer to the P/N correspondence table. For more product compatibility, please feel free to contact us.
| Corresponding Compatible Brand/Part Number | |||
| Brand | Part Number | Brand | Part Number |
| Gigaopto | GTQ-N13B4-40MC | Arista | QSFP-100/112G-ER4 |
| Cisco | QSFP-100/112G-ER4 | HW | QSFP-100/112G-ER4 |
| Mellanox | QSFP28-ER4-100/112G | Juniper | 100/112GBASE-ER4 |
| Dell | QSFP-100/112G-ER4 | ||
