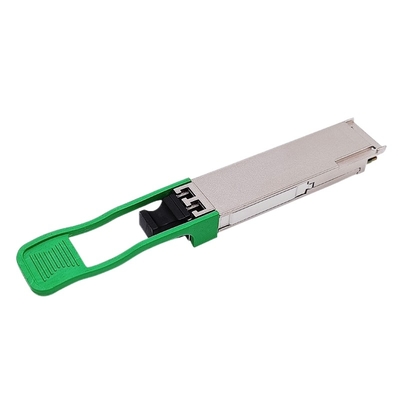

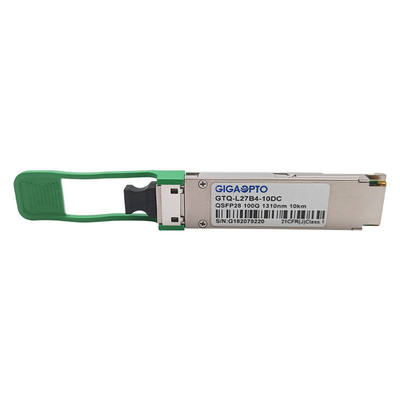

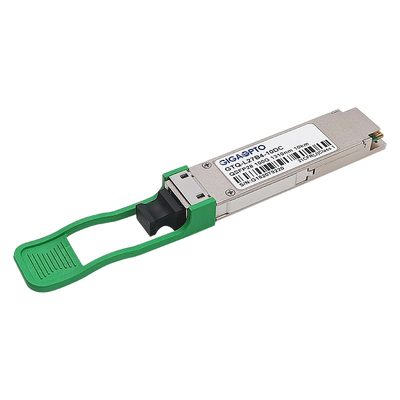

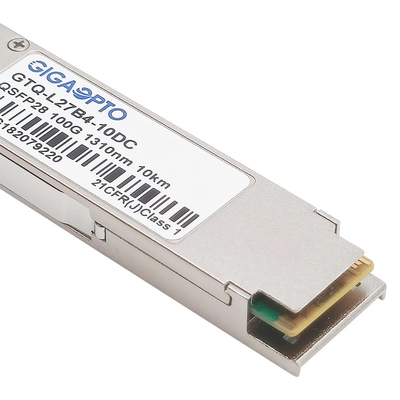

10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF

10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF
10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF 10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF 10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF 10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF

Large Image :  10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTQ-L27B4-10DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000pcs/month

10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF

Description
Item Name: 100GBASE-4WDM-10 Transceiver Form Type: QSFP28
Components: CWDM DML + PIN Wavelength: 1271nm/1291nm/1311nm/1331nm CWDM
Interface: Duplex LC Receptacle Max Cable Distance: 10km
Media: SMF DDM/DOM: Supported
Highlight: 100GBASE-4CWDM-10, QSFP28 CWDM4 10km
High Light:

10km 100G QSFP28 Transceiver

,

DOM 100G QSFP28 Transceiver

,

QSFP28 100GBASE CLR4

100Gbps CWDM4 10km QSFP28 1310nm SMF Fiber Module Transceiver Duplex LC DOM





Description



Gigaopto’s 100GBASE-4WDM-10/CLR4 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput to 10km over dual-strand single mode fiber (SMF) via duplex LC connector.

The eCWDM4 module converts 4 input channels of 25.78Gb/s electrical data to 4 channels of CWDM4 optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module demultiplexes a 100Gb/s optical input into 4 channels of CWDM4 optical signals and then converts them to 4 output channels of electrical data.

The module is with the QSFP28 38-pin connector to allow hot plug capability. The internally ac coupled high speed serial I/O simplifies interfacing to external circuitry. Only single 3.3V power supply is needed.

A serial EEPROM in the transceiver allows the user to access transceiver digital diagnostic monitoring and configuration data via the 2-wire QSFP28 Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic data is held in the lower area while specific data is held in a series of tables in the high memory area.

This 100G CWDM4 10km transceiver is compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, SFF-8665, SFF-8636 and ITU-T G.694.2 standards. With these features, it is suitable to be used in various applications, such as 100G Ethernet switch, router, and client-side telecom interfaces.





Specification



Form Type QSFP28 100G eCWDM4 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Lane Wavelength 1271nm, 1291nm, 1311nm and 1331nm Max Cable Reach 10km with FEC
Connector type Dual-LC receptacle Media SMF
Transmitter DML CWDM Receiver PIN
TX Out Power (dBm) -6.5~2.5dBm Receiver Sensitivity <-13 dBm
Extinction Ratio >3.5dB Receiver Overload > 2.5 dBm
Power-budget (dB) 6.5dB Power Dissipation ≤3.5W
DDM/DOM Supported Temperature Range 0 to 70°C (32 to 158°F)
Packaging Technology COB (chip on board) Modulation Format NRZ
CDR (Clock and Data Recovery) TX & RX Built-in CDR Host FEC Supported
OEM/ODM Supported Warranty 3 years
Protocols

QSFP28 MSA Compliant,CWDM4 MSA,100G 4WDM4-10 MSA,RoHS





Feature



  • Compliant to QSFP28 Extended CWDM4 MSA
  • Four CWDM lanes MUX/DEMUX design
  • 4-channel uncooled CWDM DFB TOSA and PIN ROSA
  • Data rate up to 25.78125Gbps per channel,supports 103.1Gb/s aggregate bit rate
  • Up to 10km transmission on G.652 single mode fiber (SMF) with RS-FEC
  • Duplex LC receptacle
  • 3.5W maximum power dissipation
  • Case operating case temperature range:0 to 70°C
  • Single 3.3V power supply
  • Built-in digital diagnostic functionality
  • RoHS compliant (lead free)



Applications



  • Data Center Interconnect¨
  • 100G 4WDM-10 10km reach
  • 100G CWDM4 applications¨
  • Infiniband EDR interconnects¨
  • Enterprise networking



Standard



  • QSFP28 MSA
  • 100G CWDM4 MSA
  • IEEE P802.3bm





Optical Characteristics



Parameter Symbol Min Typical Max Unit Notes



Lane Wavelength

L0



1264.5



1271



1277.5



nm


L1



1284.5



1291



1297.5



nm


L2



1304.5



1311



1317.5



nm


L3



1324.5



1331



1337.5



nm


Transmitter

SMSR



SMSR



30





dB



Total Average Launch Power



PT





8.5



dBm


Average Launch Power, each Lane



PAVG



-6.5





2.5



dBm



OMA, each Lane



POMA



-4.0





2.5



dBm



1

Launch power in OMA minus TDP



-5





dB



TDP, each Lane



TDP





3.0



dB



Extinction Ratio



ER



3.5





dB



RIN20OMA



RIN





-130



dB/Hz



Optical Return Loss Tolerance



TOL





20



dB



Transmitter Reflectance



RT





-20



dB



Eye Mask coordinates:

X1, X2, X3, Y1, Y2, Y3





{0.31, 0.4, 0.45, 0.34, 0.38, 0.4}





2

Average Launch Power OFF



Poff





-30



dBm


Parameter Symbol Min Typical Max Unit Notes
Transmitter, each Lane
Receiver
Damage Threshold, each lane



THd

3.5     dBm 3

Average Receive Power, each

lane





-13.0





2.5



dBm



Receive Power (OMA), each

lane





2.5



dBm



Receiver Sensitivity (OMA),

each Lane



SEN





-11.5



dBm



4

Stressed Receiver Sensitivity (OMA), each Lane       -8.6 dBm 5
LOS Assert LOSA   -16   dBm
LOS Deassert LOSD   -14   dBm
LOS Hysteresis LOSH 0.5   2 dB

Receiver Electrical 3 dB upper

Cutoff Frequency, each Lane



Fc





31



GHz


Conditions of Stress Receiver Sensitivity Test (Note 5)
Vertical Eye Closure Penalty VECP 1.9     dB 6
Stressed Eye J2 Jitter J2 0.33     UI
Stressed Eye J4 Jitter, J4 0.48     UI



Note:

1. Even if the TDP < 1 dB, the OMA min must exceed the minimum value specified here.

2. Hit ratio of 5e-5, per IEEE; See Figure 2 below.

3. The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.

4. Measured with conformance test signal at receiver input for BER = 5e-5 BER.

5. Measured with 4WDM-10 MSA conformance test signal at TP3 for 5e-5BER.

6. Vertical eye closure penalty and stressed eye jitter are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.





Compatibility



Gigaopto's optical transceivers are 100% compatible with many famous switch brands and will not cause damage to OEM devices. In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to customers.

For this 100G eCWDM4 GTQ-L27B4-10DC compatibility, please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.



Corresponding Compatible Brand/Part Number
Brand Part Number Brand Part Number
Gigaopto GTQ-L27B4-DC Arista QSFP-100G-LR4-AN
Cisco QSFP-100G-4WDM-S Juniper JNP-QSFP-100G-4WDM
Dell QSFP-100G-4wdm-10 Brocade 100G-QSFP28-4WDM-10KM
D-Link DEM-Q28X10Q-4WDM Mellanox QSFP28-EIR4-100G
F5 Networks F5-UPG-QSFP28-WDM10 Fortinet FG-TRAN-QSFP28-4WDM
Avago AFCT-89LDDZ Palo Alto Networks PAN-100G-QSFP28-4WDM
H3C QSFP-100G-EIR4-WDM1300 MikroTik Q28+EIRDLC10D
Check Point CPAC-TR-100EIR-SSM160-QSFP28-C Chelsio SM100G-4WDM-10
Allied Telesis QSFP28-4WDM-10 MRV QSFP28-100GE-4WDM10
Edge-Core ET7402-4WDM-10





Mechanical Dimensions



10km 100G QSFP28 Transceiver 100GBASE 4WDM CLR4 Optical Transceiver Module DOM Duplex LC SMF 0





For More of our QSFP28 100GBASE Transceiver Series, please refer to the following form



P/N Description Wave Length Reach TX/RX TX Power (dBm) Rx Sens. (dBm)
GTQ-M08B4-01DC QSFP28 100G SR4 850nm 100m 850nm VCSEL/PIN -8.4~2.4 <-10.3
GTQ-M08B4-02DC QSFP28 SR BD 850/900nm 100m 850/900nm VCSEL/PIN -5.5 - 3 <-9.5
GTQ-M08B4-03DC 100GBASE eSR4 850nm 300m 850nm VCSEL/PIN -8.4~2.4 <-10.3
GTQ-M13B4-P5DC QSFP28 PSM4-S 1310nm 500m 1310nm DFB/PIN -9.4~2 <-12.66
GTQ-M13B4-02DC QSFP28 PSM4-S 1310nm 2km 1310nm DFB/PIN -6.0~2 <-10.5
GTQ-L27B4-02DC 100G CWDM4 1311nm CWDM 2km CWDM DML/PIN -6.5~2.5 <-11.5
GTQ-L27B4-10DC 100G eCWDM4 1311nm CWDM 10km CWDM DML/PIN -6.5~2.5 <-13
GTQ-L13B4-10DC QSFP28 LR4 LAN WDM 10km LWDM DFB/PIN -4.3~4.5 <-10.6
GTQ-L13B4-20DC QSFP28 eLR4 LAN WDM 20km LWDM DML/PIN -4.3~4.5 <-14.5
GTQ-L13B4-40DC QSFP28 ER4 Lite LAN WDM 40km(with FEC) LWDM EML/APD -2.9~4.5 <-20.9d
GTQ-L13B4-80DC QSFP28 ZR4 LAN WDM 80km LWDM EML/PIN+SOA 2~6.5 <-28
GTQ-N13B4-10MC Dual 100/112G LR4 LAN WDM 10km LWDM DML/PIN -4.3~4.5/-0.6~4 <-8.6/<-8.4
GTQ-N13B4-20MC Dual 100/112G eLR4 LAN WDM 20km LWDM DML/PIN -1.0~+4.5/0~4 <-9.5/<-9.0
GTQ-N13B4-40MC Dual 100/112G ER4 LAN WDM 40km LWDM DML/PIN -2.5~2.9/-1~3.3 <-15/<-19
GTQ-L13D1-P5DC 100G QSFP28 DR1 1310nm 500m PAM4 EML/PIN -2.9~4 <-5.9
GTQ-L13D1-02DC 100G QSFP28 FR1 1310nm 2km PAM4 EML/PIN -2.4~4 <-6.4
GTQ-L13D1-10DC 100G QSFP28 LR1 1310nm 10km PAM4 EML/PIN -1.4~4.5 <-7.7

Note: OEM/ODM supported.





FAQ:



What is the advantage of the CWDM modules? Is there any difference from the usual one?

RE: CWDM can provide larger transmission capacity, saving optical fiber resources(signals of different rates and formats can be mixed, as long as the rates at both ends of the combined wave front and the split wave rear are consistent)
