4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module

Cisco Compatible 4.25G Fiber Channel SFP 1310nm SMF 10km DOM Duplex LC Transceiver Module

Description

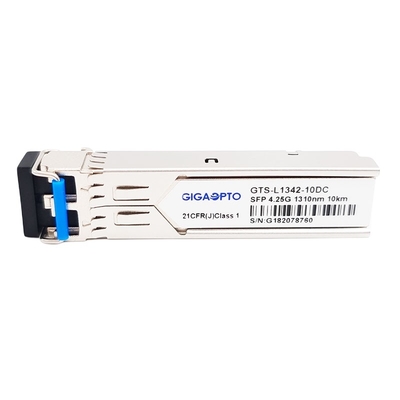

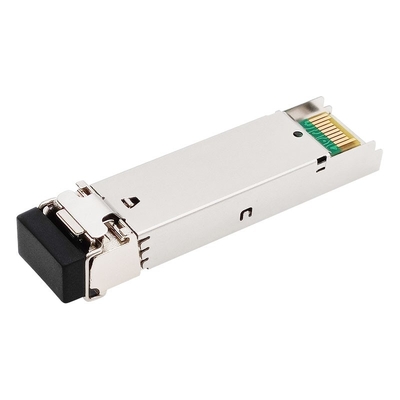

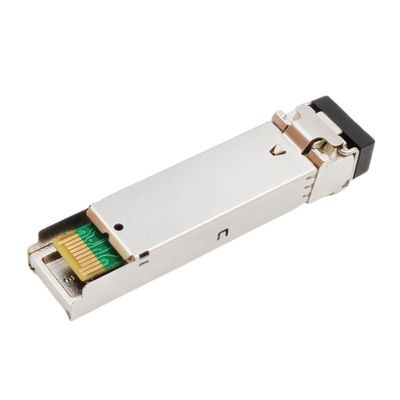

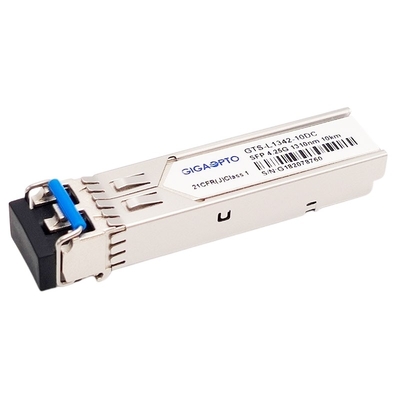

The GIGAOPTO's GTS-L1342-10DC transceiver is a high-performance small form factor pluggable (SFP) module for 4.25Gbps, 2.125Gbps and 1.06Gbps Fibre Channel (4GFC,2GFC,1GFC) applications in storage area networks.This module provides 4Gb/s throughput up to 10km over single-mode fiber (SMF) operating at a nominal wavelength of 1310nm via an LC connector.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

This 4G SFP module is designed to be compliant with SFF-8472 Multi-source Agreement (MSA) and RoHS standard.

Specification

Features

• Support up to 4.25Gb/s data links
• Up to 10km on 9/125µm SMF
• Duplex LC connector
• 1310nm DFB laser transmitter and InGaAs PIN receiver
• Single +3.3V power supply voltage and TTL logic interface
• Support Digital Diagnostic Monitoring interface
• Hot-pluggable SFP footprint
• Low power dissipation
• Metal enclosure provides lower EMI
• ClassⅠlaser safety compliant
• RoHS6 Compliant
• Compliant with SFF-8472

Application

• 1G/2G/4G Fibre Channel
• Storage Area Network(SAN)
• 1000Base-LX Ethernet
• Other optical transmission distance

Compatibility

All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (4G SFP FC 1310nm 10km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.

Ordering Information
