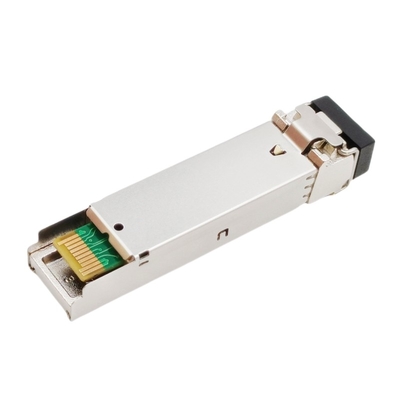

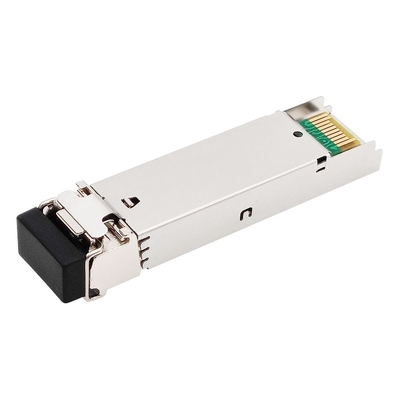

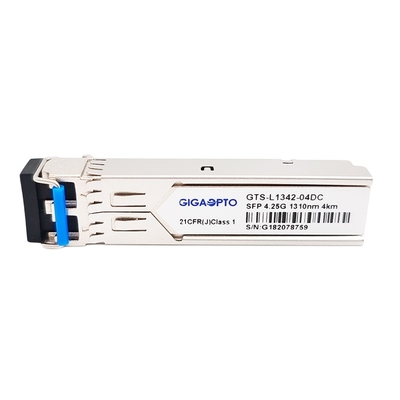

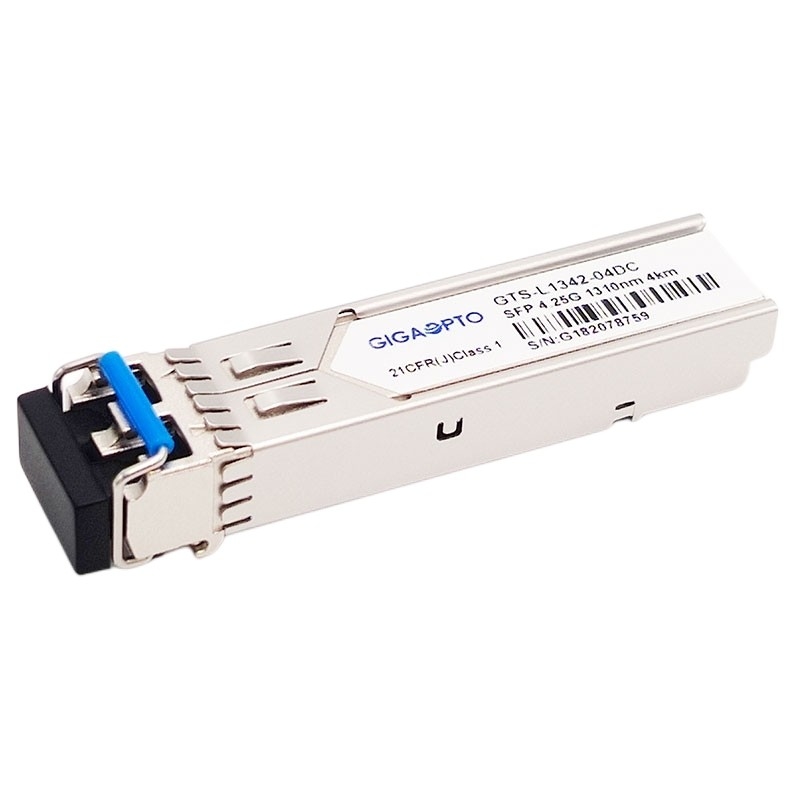

SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver

SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver
SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver

Large Image :  SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver

Product Details:
Place of Origin: Shenzhen, China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-L1342-04DC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs / month

SFP 4G Fiber Channel Module 1310nm SMF 4km Duplex LC DOM Optical Transceiver

Description
Form Factor: SFP Connector: Duplex LC
Data Rate: 4.25Gbps Max Distance: 4km
Fibre Type: Single-Mode Fiber Product Name: Dom Transceiver; Ddm Transceiver
Optical Components: FP 1310nm Warranty: 3 Years
Keywords: 4.25G SFP Fiber Channel, 4G Fiber Channel Optical Transceiver, SFP 4G 1310nm 4km FC
Highlight:

Duplex LC Fiber Channel Module

,

1310nm Fiber Channel Module

,

4km DOM Optical Transceiver

Cisco Compatible 4.25G 1310nm 4km Fiber Channel SFP SMF Duplex LC Transceiver Module





Description



The GIGAOPTO's GTS-L1342-04DC transceiver is a high performance small form factor pluggable (SFP) module for 4G/2G/1G Fibre Channel applications in storage area networks, supporting data rate of 4.25Gbps and 4km transmission distance over 9/125µm single-mode fiber at a nominal wavelength of 1310nm. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. This 4G FC SFP transceiver is programmed to be used in a wide range of storage networking equipment such as SAN switches, routers, network interface cards (NICs),etc.





Specification



Compatible Brand CISCO Compatible PN DS-SFP-FC4G-MR
Form Factor SFP Data Rate 4.25Gbps
Connector LC Duplex Reach 4km (2.5 miles)
DDM/DOM Yes Media SMF
Warranty 3 Years Commercial Temp. 0 to 70°C (32 to 158°F)
Wavelength 1310nm Power Supply Voltage 3.3V
Laser Type FP PD Type PIN
TX Power -8 ~ 0dBm RX SENS. < -18dBm
ER > 5dB Saturation > 0dBm
Protocols MSA Compliant





Features



  • Data rate up to 1.25Gbps operation
  • Up to 4km with 9/125 µm SMF
  • 1310nm FP laser transmitter and InGaAs PIN receiver
  • Duplex LC receptacle optical interface compliant
  • Single +3.3V power supply and TTL logic interface
  • Low power dissipation
  • Metal enclosure provides lower EMI
  • Hot-pluggable SFP footprint
  • International Class 1 Laser Safety Compliant
  • Operating case temperature:

Commercial: 0°C~70°C

Industrial: -40°C~85°C

  • RoHS Compliant
  • Compliant with SFP MSA
  • Compliant with SFF-8472





Application



  • 4Gbps optical systems
  • 1x/2x/4x fiber channel
  • Storage Area Network(SAN)
  • Other optical links





Compatibility



Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, etc. and offer a 3-year warranty.
For this (4G SFP FC 1310nm 4km), please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.



Compatible Brand Compatible P/N Compatible Brand Compatible P/N
GIGAOPTO GTS-L1342-04DC Brocade XBR-000142
CISCO DS-SFP-FC4G-MR Brocade XBR-000240
IBM 23R1703





Ordering Information



P/N Package Data Rate Wavelength Distance Media Laser Type TX Power Temp.
GTS-L0826-02DC SFP 2.12Gbps 850nm 300m MMF VCSEL -9~ 0dBm C-Temp
GTS-L1326-10DC SFP 2.12Gbps 1310nm 10km SMF FP -8~ -3dBm C-Temp
GTS-L0842-02DC SFP 4.25Gbps 850nm 150m MMF VCSEL -9~ 0dBm C-Temp
GTS-L1342-04DC SFP 4.25Gbps 1310nm 4km SMF FP -8~ 0dBm C-Temp
GTS-L1342-10DC SFP 4.25Gbps 1310nm 10km SMF DFB -8~ 0dBm C-Temp
GTS-L0826-02DI SFP 2.12Gbps 850nm 300m MMF VCSEL -9~ 0dBm I-Temp
GTS-L1326-10DI SFP 2.12Gbps 1310nm 10km SMF FP -8~ -3dBm I-Temp
GTS-L0842-02DI SFP 4.25Gbps 850nm 150m MMF VCSEL -9~ 0dBm I-Temp
GTS-L1342-04DI SFP 4.25Gbps 1310nm 4km SMF FP -8~ 0dBm I-Temp
GTS-L1342-10DI SFP 4.25Gbps 1310nm 10km SMF DFB -8~ 0dBm I-Temp
