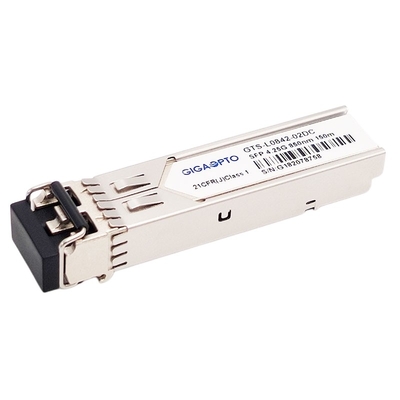

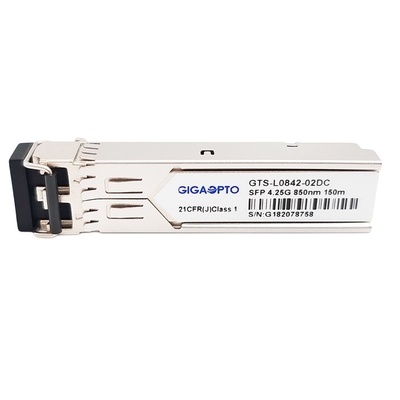

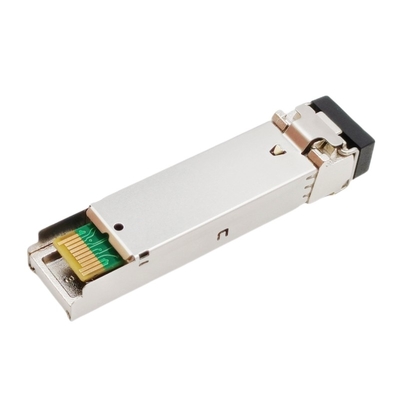

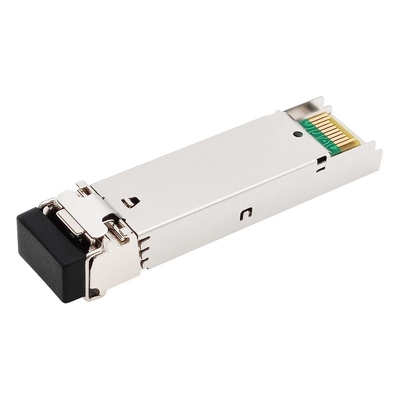

850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel

850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel
850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel 850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel 850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel 850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel

Large Image :  850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel

Product Details:
Place of Origin: China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-L0842-02DC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs / month

850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel

Description
Form Type: SFP Data Rate: 4.25Gbps
Reach: 150m Center Wavelength: 850nm
Power Supply Voltage: 3.3V Extinction Ratio: >5dB
Fiber Type: MMF Keywords: SFP 4.25G 850nm 150m Module, 4G Fiber Channel, 4Gbps SFP MMF
Highlight:

150m Optical Transmitter Module

,

850nm Optical Transmitter Module

,

SFP Optical Transceiver Module

Cisco Compatible 4GBASE 850nm MMF 150m DOM Duplex LC SFP Fiber Channel Transceiver Module





Description



The GIGAOPTO's GTS-L0842-02DC transceiver is high performance, cost effective small form factor pluggable (SFP) modules for 4x/2x/1x fiber channel and 1000BASE Gigabit Ethernet duplex optical data communication, supporting transmission distance up to 150m with multi mode fiber (MMF) using a wavelength of 850nm. This module is hot pluggable and complies with Class 1 FDA and IEC60825-1 Safety standard. The receiver section uses an integrated detector preamplifier (IDP) mounted in an optical header. This SFP transceiver is built to be compliant with Multi-Source Agreement (MSA).





Specification



Compatible Brand CISCO Compatible PN DS-SFP-FC4G-SW
Product Packaging SFP Max Data Rate (Gbps) 4.25Gbps
Connector Type LC Duplex Reach 150m
DOM Support YES Fiber Type Multi-Mode Fiber
Center Wavelength 850nm C-Temp. 0 to 70°C (32 to 158°F)
Power Supply Voltage 3.3V Icc <330mA
Optical Components 850nm VCSEL Receiver Type PIN
Launched Power -9~ 0dBm RX Sensitivity < -20dBm
Extinction Ratio >5dB RX Saturation >-3dBm
Protocols MSA Compliant





Features



  • Data rate up to 4.25Gbps
  • Duplex LC connector
  • Single +3.3V power supply and TTL Logic interface
  • Up to 150m on 50/125μm MMF ;

70m on 62.5/125 µm MMF

  • Operating temperature range:

Commercial: 0°C~70°C

Industrial: -40°C~85°C

  • RoHS Compliant
  • Compliant with SFP MSA specification
  • Compliant with SFF-8472





Application



  • 1.063/2.125/4.25Gbps Fiber Channel
  • 1000Base-SX Ethernet
  • CPRI/OBSAI
  • Other optical links





Compatibility



Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this (4G SFP FC 850nm 150m), please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.



Compatible Brand Compatible Part Number Compatible Brand Compatible Part Number
GIGAOPTO GTS-L0842-02DC HPE A7446B
CISCO DS-SFP-FC4G-SW HPE AJ715A
Intel TXN31115D000000 IBM 22R4902
Brocade XBR-000097 Avago AFBR-57R5AP
Brocade XBR-000139 Avago AFBR-57R6APZ





Ordering Information



P/N Package Data Rate Wavelength Distance Media Laser Type TX Power Temp.
GTS-L0826-02DC SFP 2.67Gbps 850nm 300m MMF VCSEL -9~ 0dBm 0°C~70°C
GTS-L1326-10DC SFP 2.67Gbps 1310nm 10km SMF FP -8~ -3dBm 0°C~70°C
GTS-L0842-02DC SFP 4.25Gbps 850nm 150m MMF VCSEL -9~ 0dBm 0°C~70°C
GTS-L1342-04DC SFP 4.25Gbps 1310nm 4km SMF FP -8~ 0dBm 0°C~70°C
GTS-L1342-10DC SFP 4.25Gbps 1310nm 10km SMF DFB -8~ 0dBm 0°C~70°C
GTS-L0826-02DI SFP 2.67Gbps 850nm 300m MMF VCSEL -9~ 0dBm -40°C~85°C
GTS-L1326-10DI SFP 2.67Gbps 1310nm 10km SMF FP -8~ -3dBm -40°C~85°C
GTS-L0842-02DI SFP 4.25Gbps 850nm 150m MMF VCSEL -9~ 0dBm -40°C~85°C
GTS-L1342-04DI SFP 4.25Gbps 1310nm 4km SMF FP -8~ 0dBm -40°C~85°C
GTS-L1342-10DI SFP 4.25Gbps 1310nm 10km SMF DFB -8~ 0dBm -40°C~85°C





Pin Definition



850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel 0





Typical Application Circuit



850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel 1



Package Outline



850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel 2
