Product Details:
|
| Form Factor: | SFP | Connector Type: | Duplex LC |
|---|---|---|---|
| Data Rate(Max): | 2.125Gbps | Transmission Distance: | 300m |
| Media: | Multi-Mode Fiber | Optical Components: | VCSEL 850nm |
| Receiver Sensitivity: | < -17dBm | Keywords: | 2G SFP Fiber Channel Module, 2GBASE SW FC |
| Highlight: | MMF Fiber Channel Module,300m Fiber Channel Module,2G SFP |
||
Cisco Compatible 2Gbps Fiber Channel 850nm MMF 300m SFP Transceiver Module DOM Duplex LC
Description

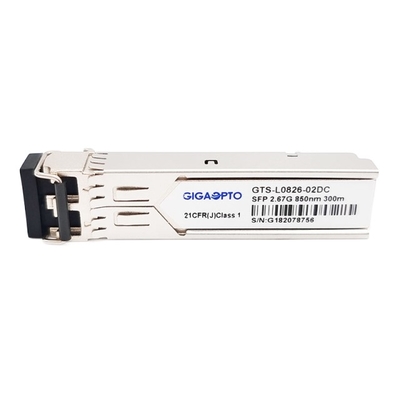

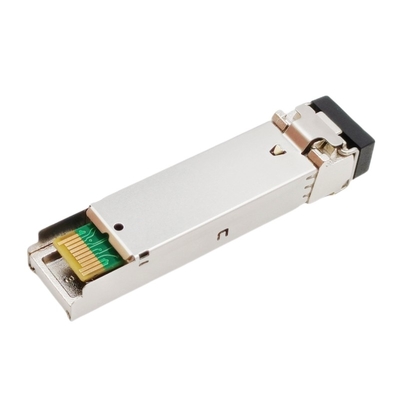

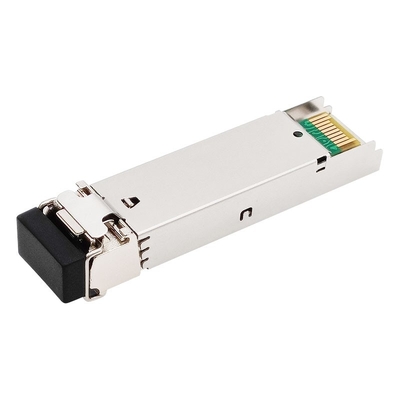

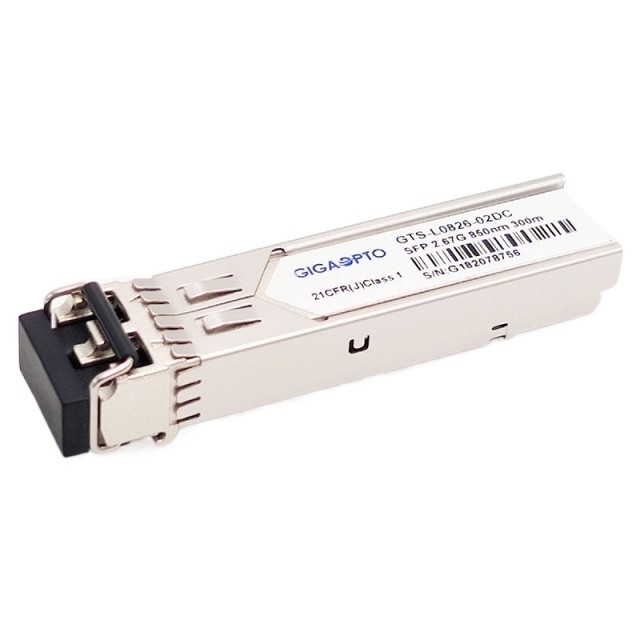

The GIGAOPTO's GTS-L0826-02DC transceiver is a dual fiber 2.125Gbps Small Form-factor Pluggable (SFP) module for Fibre Channel Network. This module provides 2Gb/s throughput up to 300 meters over multi-mode fiber (MMF) at a wavalength of 850nm using a LC connector. The SFP transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 2.125 Gbps data rate. The transceivers are fully compatible with SFP Multi-Source Agreement (MSA )and SFF-8472 specification.
Specification
| Compatible Brand | CISCO | Compatible PN | DS-SFP-FC-2G-SW |
| Product Packaging | SFP | Data Rate (Gbps) | 2.125Gbps |
| Optical Connector | LC duplex | Reach | 300m (984ft) |
| DOM | Supported | Fibre Type | MMF |
| Warranty | 3 Years | Commercial Temp. | 0 to 70°C (32 to 158°F) |
| Wavelength | 850nm | Power Supply Voltage | 3.3V |
| Laser Type | VCSEL 850nm | Receiver Type | PIN |
| Average Output Power | -9~0dBm | Sensitivity | < -17dBm |
| ER (Extinction Ratio) | >9dB | Overload | >-3dBm |
| Protocols | MSA Compliant | ||
Features
Commercial: 0°C~70°C
Industrial: -40°C~85°C
Application
Compatibility
All of Gigaopto's optical modules are open-source and can be coded to be fully compatible with many highly popular optical devices. For this product (2G SFP FC 850nm 300m) please refer to the following compatibility table. If you would like more information about compatibility, please feel free to contact us.
| Compatible Brand | Compatible Part Number | Compatible Brand | Compatible Part Number |
| GIGAOPTO | GTS-L0826-02DC | Avago | HFBR-5720L |
| CISCO | DS-SFP-FC-2G-SW | Avago | HFBR-5720ALP |
| Brocade | XBR-000075 | Ciena | 164-0356-901 |
| HPE | A6515A | Intel | TXN31111 |
Ordering Information
| P/N | Package | Data Rate | Wavelength | Distance | Media | Laser Type | TX Power | Temp. |
| GTS-L0826-02DC | SFP | 2.12Gbps | 850nm | 300m | MMF | VCSEL | -9~ 0dBm | C |
| GTS-L1326-10DC | SFP | 2.12Gbps | 1310nm | 10km | SMF | FP | -8~ -3dBm | C |
| GTS-L0842-02DC | SFP | 4.25Gbps | 850nm | 150m | MMF | VCSEL | -9~ 0dBm | C |
| GTS-L1342-04DC | SFP | 4.25Gbps | 1310nm | 4km | SMF | FP | -8~ 0dBm | C |
| GTS-L1342-10DC | SFP | 4.25Gbps | 1310nm | 10km | SMF | DFB | -8~ 0dBm | C |
| GTS-L0826-02DI | SFP | 2.12Gbps | 850nm | 300m | MMF | VCSEL | -9~ 0dBm | I |
| GTS-L1326-10DI | SFP | 2.12Gbps | 1310nm | 10km | SMF | FP | -8~ -3dBm | I |
| GTS-L0842-02DI | SFP | 4.25Gbps | 850nm | 150m | MMF | VCSEL | -9~ 0dBm | I |
| GTS-L1342-04DI | SFP | 4.25Gbps | 1310nm | 4km | SMF | FP | -8~ 0dBm | I |
| GTS-L1342-10DI | SFP | 4.25Gbps | 1310nm | 10km | SMF | DFB | -8~ 0dBm | I |
