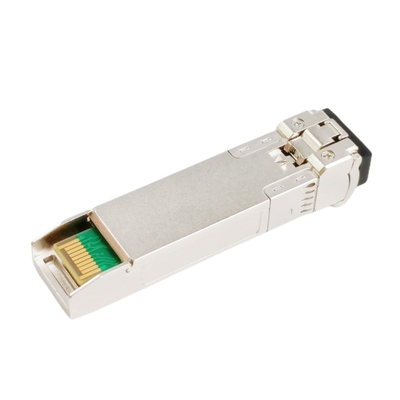

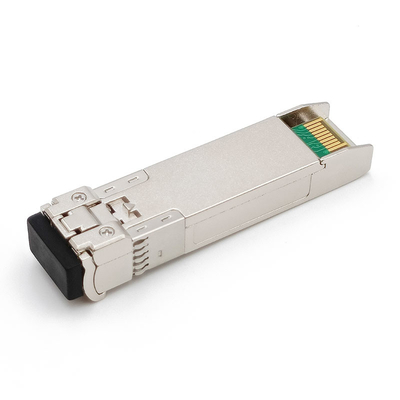

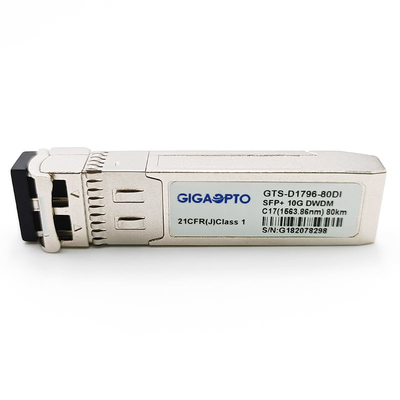

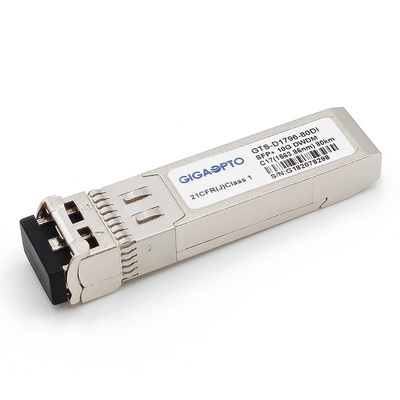

ITU C17-C61 DWDM 100GHz SFP+ 10GBASE ZR 80km Optical Transceiver Industrial SMF LC DOM

10G SFP+ DWDM 80km Optical Transceiver 100GHz C17-C61 SMF LC DOM Industrial (-40 to 85℃)

Products Description of 10G SFP+ DWDM ZR Industrial 80km (C17~C61)CH Series

This hot pluggable 10G DWDM SFP+ ZR Transceiver series provide high capacity, high bandwidth communication solutions for multiplexed optical networks. This DWDM SFP+ transceiver module is designed for 10GBASE-ZR/ZW and 10G Fibre Channel applications.

Max links up to 80km over G.652 single mode fiber.

The transmitter section uses temperature-stabilized DWDM electrical-modulated laser (EML), The receiver section uses an integrated InGaAs avalanche photodiode preamplifier mounted in an optical header and a limiting post-amplifier IC. All modules satisfy class I laser safety requirements.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

With high quality components, this DWDM C-Band Transceiver is allowed to work under the temperature range from -40 to 85°C (-40 to 185°F), which is suitable to be deployed in the DWDM networking equipment in metropolitan access for both indoor and outdoor environment.

Functional Specification

Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.

Ordering Information

Features

• Hot-pluggable SFP+ footprint
• Compliant with SFP+ MSA standard
• Supports 9.8 to 11.3 Gb/s,Compliant to 802.3ae 10GBASE-ZR/ZW
• Link length up to 80km on G.652D SMF with Duplex LC connector
• Suitable for use in 100GHz channel spacing DWDM systems
• Operating case temperature range:-40 to 85°C
• Cooled EML transmitter and APD receiver
• Maximum power dissipation <1.8W
• Single 3.3V power supply
• Built-in digital diagnostic interface
• Metal enclosure provides lower EMI
• RoHS compliant and lead free

Application

• 10GBASE-ZR/ZW
• 80 km 10G Fiber Channel
• 10G Ethernet with FEC

Compatibility

All of Gigaopto's 10G SFP+ DWDM ZR 80km Industrial Transceivers are open sourced, and can be coded to be fully compatible with mainstream devices, please refer to the following form (for example in C17/1563.86nm Wavelength channel). For more product compatibility, please feel free to contact us.
