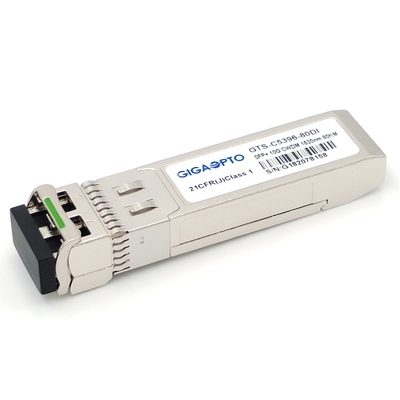

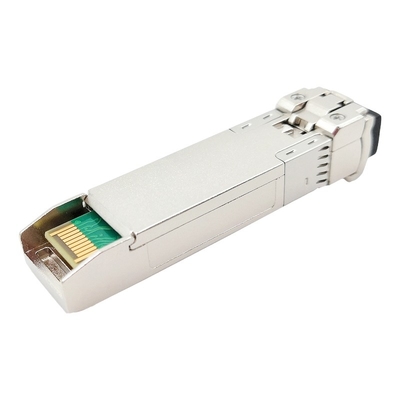

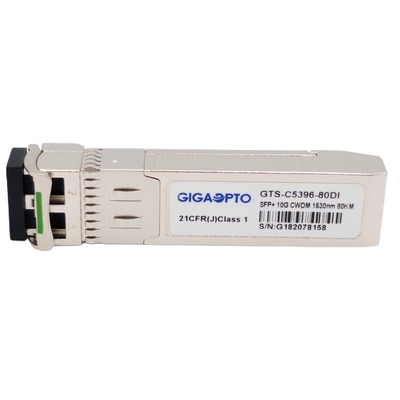

10GBase-CWDM ZR SFP+ 80km Single Mode Fiber Transceiver Module 1470~1610nm LC DOM

23dB Power-budget CWDM EML + APD 10G SFP+ 1470~1610nm Fiber Transceiver Module 80km LC DOM

Products Description of 10G SFP+ CWDM ZR 80KM (1470~1610)nm Series

This hot pluggable 10Gbps CWDM SFP+ ZR Transceiver provides high capacity, high bandwidth communication solutions for multiplexed optical networks like CPRI, 10GBASE-ZR, SDH/SONET, OTN and 10G Fiber Channel applications. It supports up to 80km link distance over standard G.652 single-mode fiber (SMF) via an LC duplex connector.

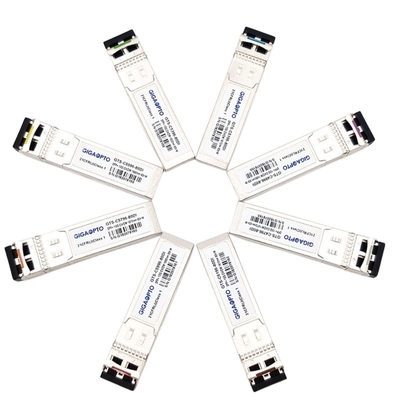

There are 8 center wavelengths available from 1470nm to 1610nm with each step 20nm

The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser, and the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.

It is fully compatible with SFF-8431, SFF-8432 and supporting Wireless (CPRI/eCPRI), 10G Ethernet ZR and 10G Fiber Channel protocol. This product is used in many telecom and datacom applications including 5G/4G wireless, Fast Ethernet, and Fiber Channel.

Real time monitoring diagnostic functions (DOM/DDM) are available through an I2C interface, as specified by SFF-8472,which allows real-time access to device operating parameters such as case temperature, laser bias current, transmitted optical power, received optical power and module supply voltage.

Functional Specification

Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.

Ordering Information

Features

• Hot-pluggable SFP+ footprint
• Compliant with SFP+ MSA standard SFF-8431
• Compliant to 802.3ae 10GBASE-ZR
• 8-Wavelength CWDM EML transmitter from 1470nm to 1610nm, with step 20nm
• With High Sensitivity APD
• 23dB Link budget
• Duplex LC connector
• Metal enclosure, for lower EMI
• Build-in Digital Diagnostics Monitoring (DDM) through Serial Interface compliant with SFF-8472
• Single 3.3V power supply
• Power Dissipation <1.5W
• Operating Case Temperature: Standard:0 to 70°C or Industrial: -40~85°C
• RoHS compliant and Lead-free

Application

• 10GBASE-ZR/10GBASE-ZW CWDM Ethernet
• 10G Fiber Channel
• 10GE Data Center Switches and Routers
• 10GE Network interface cards and Fiber Media Converters
• Other CWDM optical networks

Compatibility

All of Gigaopto's 10G SFP+ CWDM ZR 80km Transceivers are open sourced, and can be coded to be fully compatible with mainstream devices, please refer to the following form( for example in 1530nm Wavelength channel). For more products compatibility, please feel free contact us.
