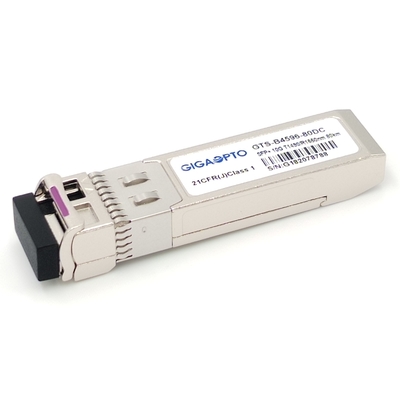

Product Name: 10GBASE-Bidi ZR Package: SFP+
Technology: WDM(BiDi),one-Fiber Wavelength (TX/RX): 1490nm/1550nm
Components: EML/APD Interface Type: LC,simplex Connector
Distance: 80km Power-budget(dB): 22 DB
Keywords: 10GBASE-BX80

10GBASE-ZR Bi-Directional Fiber Transceiver Module SMF 80km 1490nm/1550nm LC DOM





Description



This 10GBASE-Bidi ZR is a hot pluggable 3.3V Small-Form-Factor transceiver module. It is designed expressly for long-reach communication applications that require rates up to 11.1Gb/s.

This bi-directional transceiver consists of a high performance class 1 laser safety 1490nm cooled EML and a high sensitivity 1550nm APD Photodiode integrated with a TIA. The maximum transmission distance is up to 80km over a standard G.652 single mode fiber.

This bidirectional transceiver module is fully compliant with SFF-8431, SFF-8432 and the IEEE 802.3ae standard.

Digital diagnostic functions are available through a 2-wire serial interface(DDMI), as specified in SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.

Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet, SONET OC-192/SDH and Fiber Channel etc.





Specification



Packaging SFP+ BiDi ZR Bit Rata (Gbps) 10.312Gbps (Typical)
Wavelength 1490nm-TX/1550nm-RX Link Length 80km
Optical Connector LC Simplex UPC Fibre Type SMF
Transmitter Type Cooled EML Receiver Type APD
TX Power 0~5dBm Rx Sensitivity <-22dBm
Power-budget (dB) 22 dB Overload >-7 dBm
Power Dissipation <1.5 W Extinction Ratio >8.2dB
Digital Diagnostic Monitoring Support Temp. 0 to 70°C
Warranty Time 3 Years OEM/ODM Supported
Protocols SFP+ MSA Compliant, CPRI, eCPRI



Notice: When the long reach transceiver is used in short distance transmission, please match with appropriate attenuator according to the table.

Distance ≤ 10km ≤ 20km ≤ 30km
Attenuator 12dB 10dB 5dB





Features



  • Hot-pluggable SFP+ footprint
  • Up to 11.1Gb/s Data Links
  • Up to 80km transmission on G.652 single mode fiber
  • Compliant with SFP+ MSA with LC connector
  • Single + 3.3V Power Supply
  • 1490nm cooled EML laser and 1550nm APD photo-detector
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Commercial case operating temperature range: 0 to 70°C
  • Low power consumption < 1.5W
  • RoHS compliant and lead-free



Application



  • 10GBASE-ZR/ZW Ethernet
  • SONET OC-192 / SDH
  • 10G Fibre channel





Compatibility



All Gigaopto’s transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.

For this GTS-B4596-80DC optical transceiver module, please refer to the P/N correspondence table. For more product compatibility, please feel free to contact us.



Corresponding Compatible Brand/Part Number
Brand Part Number Brand Part Number
Gigaopto GTS-B4596-80DC Juniper EX-SFP-10GE-BX45-80
Cisco SFP-10G-BX80U Brocade 10G-SFPP-BXU-80K
Dell GP-SFP-10GBX-U-80 D-Link 10GBASE-BX80-U
Extreme 10GB-BX80-U
