Product Details:
|
| Product Type: | SFP | Speed: | 1000Mbps |
|---|---|---|---|
| Max Distance: | 40km (24.9 Miles) | Centre Wavelength: | 1490nm-TX/1310nm-RX |
| Digital Optical Monitoring: | Supported | Average Output Power: | -5~0dBm |
| Power Budget: | 18dB | ||
| High Light: | 1.25G BiDi SFP 40km Fiber Optic Module, SFP BiDi 1000BASE-BX TX1490nm/RX1310nm Fiber Module, 1.25G 1000BASE-BX BiDi SFP Optical Transceiver | ||

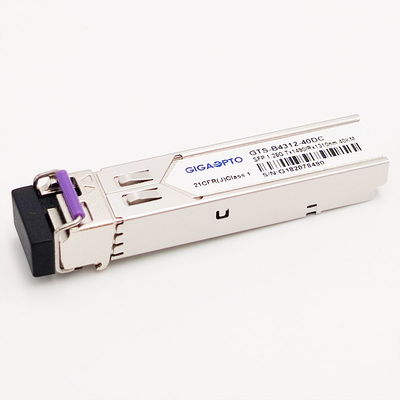

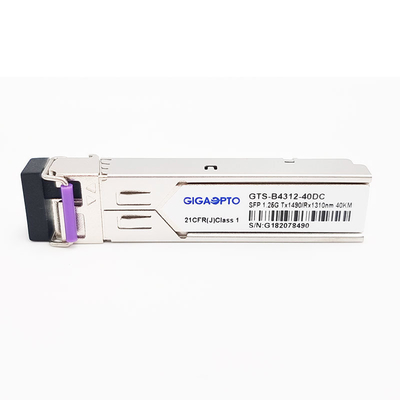

Cisco Compatible 1.25G BiDi SFP Transceiver Module 1000BASE-BX 40km 1490nm-TX/1310nm-RX SMF DOM Simplex LC
Description
The GIGAOPTO's GTS-B4312-40DC SFP transceiver provides 1000Base-BX throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1490nmTx/1310nmRx via an LC simplex connector. This 1.25G BiDi SFP Transceiver is a high performance and cost-effective small form factor pluggable Bi-directional transceiver for Gigabit Ethernet and 1G Fiber Channel application. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
This SFP module can be coded to be compatible with many brands’ networking equipment, including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters. All modules satisfy class I laser safety requirements, and are compatible with SFP Multi-Source Agreement (MSA)and SFF-8472 specifications.
Specification
| Compatible Brand | CISCO | Compatible PN | GLC-BX40-DA |
| Product Type | Small Form Factor Pluggable | Bit Rate | 1.25Gbps |
| Connector Type | Simplex LC | Operating Distance | 40km (24.9 miles) |
| Digital Optical Monitoring | YES | Cable Type | SMF |
| Power Budget | 18dB | Ambient Temperature |
Commercial Industrial 0 to 70°C (32 to 158°F) -40 to 85°C (-40 to 185°F) |
| Centre Wavelength | 1490nm-TX/1310nm-RX | Power Supply Voltage | 3.30V |
| Power Consumption | <1W | Power Supply Current | <280mA |
| Optical Components | DFB BiDi | PD Type | PIN |
| Transmit Power Range | -5~0dBm | RX Sensitivity | < -23dBm |
| Extinction Ratio | >9dB | Overload | >-3dBm |
| Applications | Fiber Channel Links; WDM Gigabit Ethernet Links; FTTX Application | ||
| Protocols | IEEE 802.3z, Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | ||
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator
according to the table.
| Distance | ≤10km | ≤20km |
| Attenuator | 10dB | 5dB |
Features
A:1310nm DFB transmitter /1490nm receiver
B:1490nm DFB transmitter/1310nm receiver
Commercial: 0°C ~ 70°C
Extended: -20°C~ 85°C
Industrial: -40°C~85°C
Application
Compatibility
All of GIGAOPTO's GTS-B4312-40DC SFP optical transceiver modules (1000BASE-BX-D BiDi SFP 1490nm-TX/1310nm-RX 40km) are open sourced, can be coded to be fully compatible with worldwide popular brands' devices. For detailed compatibility, please refer to the following table, and feel free to contact us.
| Compatible Brand | Compatible Part Number | Compatible Brand | Compatible Part Number |
| GIGAOPTO | GTS-B4312-40DC | H3C | SFP-GE-LH40-SM1490 |
| CISCO | GLC-BX40-DA | Dell | SFP-GE-BX40D-1490 |
| Juniper | SFP-GE40KT14R13 | Extreme | MGBIC-BX40-D |
| Brocade | E1MG-1G-BXDA-40 | HuaWei | LE2MGSC40ED0 |
| Avaya | AA1419077-E6 | Alcatel-Lucent | SFP-GIG-BX-D40 |
Ordering Information
| P//N | Description | Speed | Wavelength | Distance | Transmitter | TX Power |
| GTS-B3412-40DC | 1000BASE-BX BiDi SFP | 1250M | 1310nm-TX/1490nm-RX | 40km | DFB | -3~2dBm |
| GTS-B4312-40DC | 1000BASE-BX BiDi SFP | 1250M | 1490nm-TX/1310nm-RX | 40km | DFB | -5~0dBm |
| GTS-B3512-40DC | 1000BASE-BX BiDi SFP | 1250M | 1310nm-TX/1550nm-RX | 40km | DFB | -5~0dBm |
| GTS-B5312-40DC | 1000BASE-BX 1.25G BiDi SFP | 1250M | 1550nm-TX/1310nm-RX | 40km | DFB | -5~0dBm |
