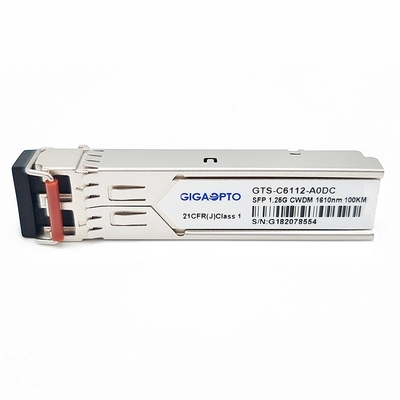

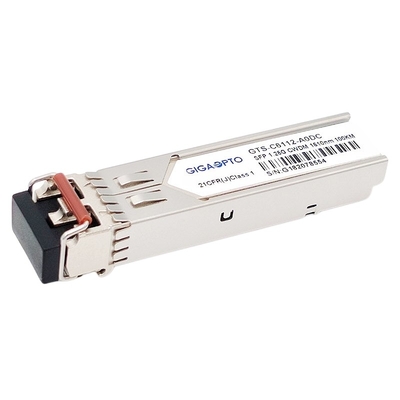

1.25G 1270 ~1610nm 100km 1000BASE CWDM SFP Transceiver Module SMF DOM Duplex LC

1000BASE-CWDM SFP 100km Transceiver Module 1270-1610nm 1.25Gbps SMF DOM Duplex LC

Description

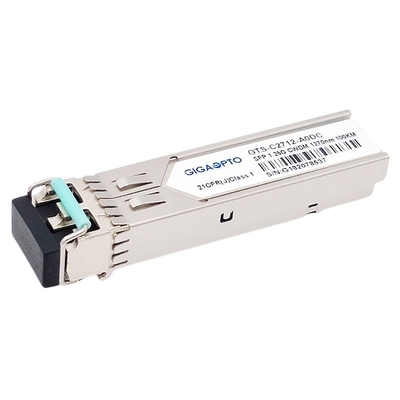

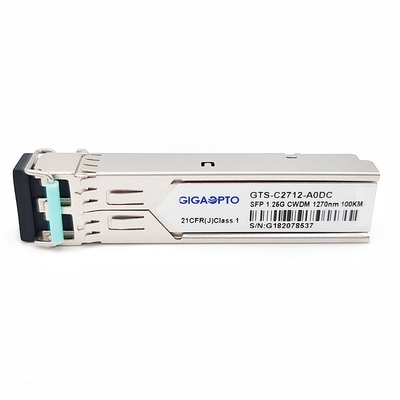

The GIGAOPTO's GTS-C2712-A0DC series optical transceivers are dual fiber 1000Mbps Small Form-factor Pluggable SFP CWDM modules for use in 1000BASE Ethernet and 1G Fiber Channel.The SFP transceivers are designed to be optically interoperable with IEEE 1000Base-CWDM reaching up to 100km over single-mode fiber (SMF) using an LC duplex connector. All transceivers of this series have been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. The optical modules comply with MSA (Multi-Source Agreement) standards to ensure seamless network integration.

Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specification

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate

attenuator according to the table.

Ordering Information

Features

• Data-rate of 1.25Gbps operation
• Up to 100km on 9/125µm SMF
• Hot-pluggable SFP footprint
• 18-Wavelength CWDM 1270n~1610nm available
• CWDM DFB laser transmitter
• Low power dissipation <1W typically
• Single 3.3V power supply
• Duplex LC optical connector
• Real Time Digital Diagnostic Monitoring
• Operating temperature:

Commercial: 0°C~70°C (32 to 158°F)

Industrial: -40°C~85°C (-40 to 185°F)

• Compliant with RoHS and lead-free
• Compliant with INF-8074i, SFF-8472
• Compliant with IEEE 802.3 1000BASE-CWDM

Application

• Gigabit Ethernet
• 1x Fiber Channel
• CWDM Networks
• Switch to Switch interface
• Switched backplane applications

Compatibility

All of Gigaopto's optical modules are open-source and can be coded to be fully compatible with many highly popular optical devices. For this product (1.25G SFP CWDM 100km) please refer to the following compatibility table (e.g.1270nm wavelength channel). If you would like more information about compatibility, please feel free to contact us.
