1000BASE BX 1.25G BiDi SFP Transceiver TX1570nm RX1490nm 80km LC SMF DOM

Cisco Compatible 1.25Gbps BiDi SFP 1570nm-TX/1490nm-RX 80km Simplex LC SMF DOM 1000BASE-BX Transceiver Module

Description

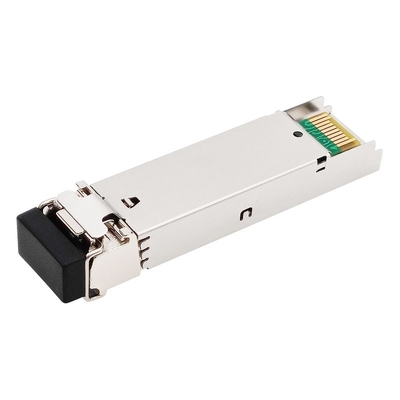

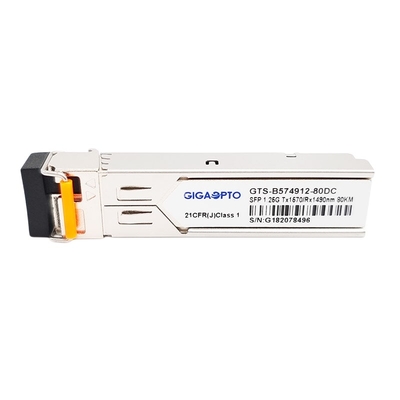

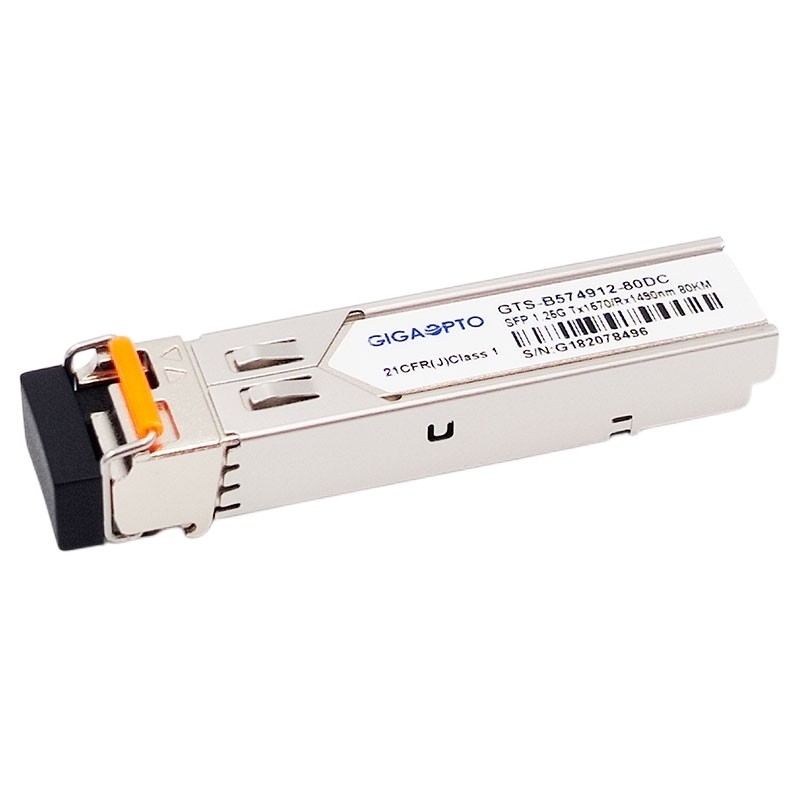

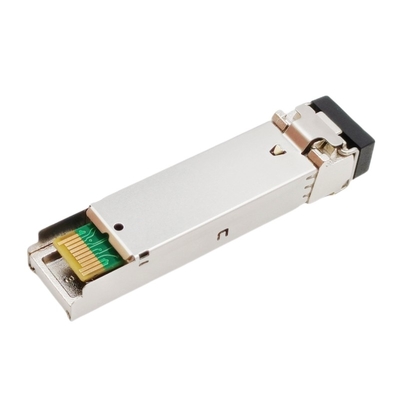

The GIGAOPTO's GTS-B574912-80DC transceiver is a single fiber bi-direction 1000Mbps Small Form-factor Pluggable SFP BIDI module for use in 1000BASE Ethernet. SFP BX80 provides 1Gb/s throughput up to 80km over single-mode fiber (SMF) using 1570nm in transmitter side and 1490nm in receiver side. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 1Gbps data rate.

This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers. The SFP transceiver module

is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Specification

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

according to the table.

Features

• Up to 1.25Gbps data rate
• Up to 80km on single 9/125µm SMF
• 1570nm DFB laser transmitter/1490nm InGaAs PIN receiver
• Bi-Directional LC connector
• Single +3.3V power supply
• Support Digital diagnostics
• Hot-pluggable SFP footprint
• Metal with lower EMI
• Excellent ESD protection
• International Class 1 laser safety certified
• Operating temperature range:

Commercial: 0°C~70°C (32 to 158°F)

Industrial: -40°C~85°C (-40 to 185°F)

• RoHS compliant and Lead Free
• INF-8074 and SFF-8472 Compliance
• Compliant with SFP MSA (INF-8074i)
• Compliant with IEEE 802.3 1000BASE-BX80

Application

• 1000Base-BX Ethernet
• 1x Fiber Channel
• Switch to Switch Interface
• Other Optical Links

Compatibility

As a global provider of Brand Compatible Networking products, we Gigaopto have made significant investments over the past few years to support our customers, as well as in our physical infrastructure and test equipment platforms. Our overall trusted engineering and testing capabilities allow us to produce a large selection of Brand Compatible Transceivers.
This (1000BASE-BX BiDi SFP 1570nm-TX/1490nm-RX 80km / GTS-B574912-80DC) is 100% compatible with mainstream optical devices. Below is a table of P/N correspondence for different brand modules. For more compatibility, please don't hesitate to contact us.

Ordering Information
