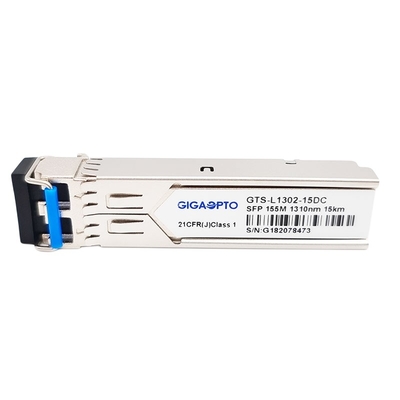

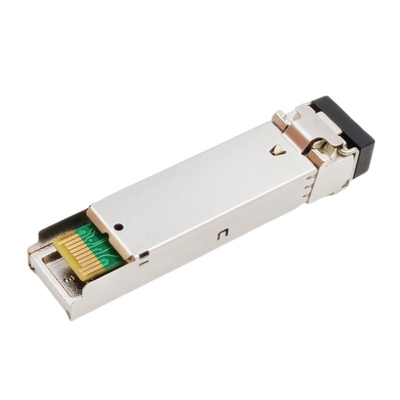

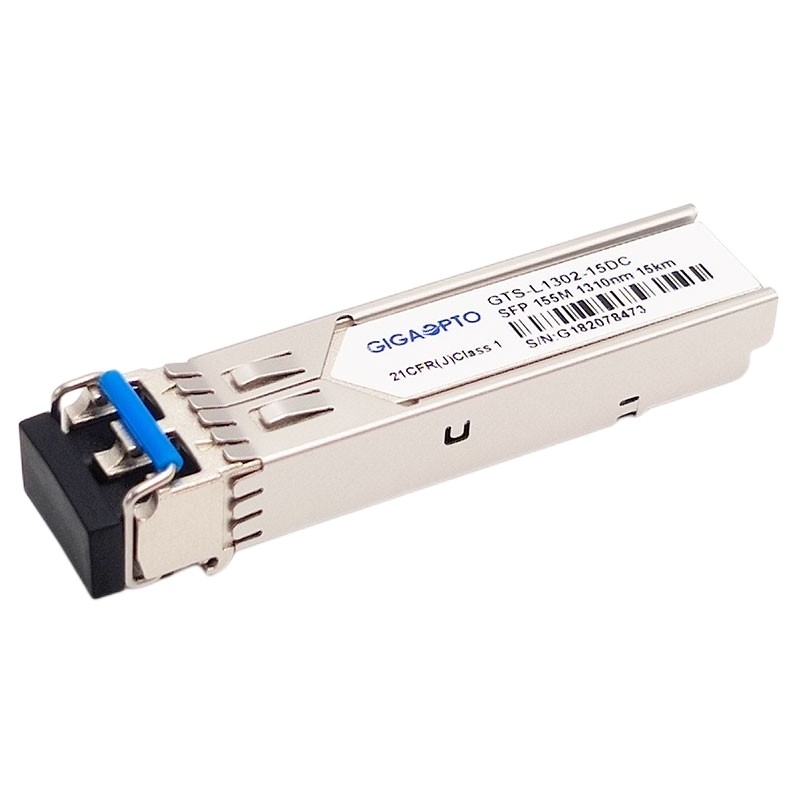

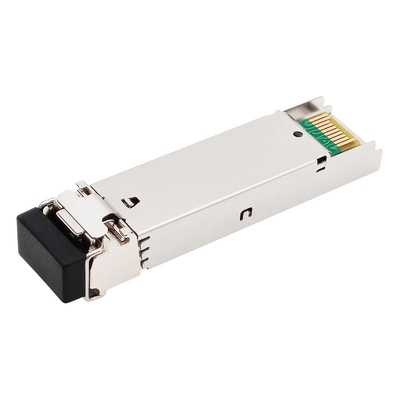

100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps

Certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
I'm Online Chat Now

100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps

100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps
100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps 100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps 100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps 100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps

Large Image :  100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps

Product Details:
Place of Origin: China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-L1302-15DC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs / month

100BASE-LX 1310nm 15km SFP Optical Transceiver Module Duplex LC SMF DOM 155Mbps

Description
Product Name: 100BASE-LX SFP Form Factor: SFP
Optical Connector: LC Duplex Reach: 15km
Media: SMF Optical Components: FP 1310nm
Receiver Type: PIN Keywords: 100BASE-LX SFP 1310nm, 155Mbps 15km Transceiver Module, SFP 100BASE-LX
High Light:

1310nm SFP Optical Transceiver

,

15km SFP Optical Transceiver

,

100BASE LX

Cisco Linksys Compatible SFP 155Mbps 100BASE-LX 1310nm 15km SMF DOM Duplex LC Transceiver Module





Description



The GIGAOPTO's GTS-L1302-15DC transceiver is a small form factor pluggable (SFP) module with speed rate up to 155Mbps and transmission distance up to 15km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. It’s designed for applications in duplex optical data communications such as Fast Ethernet and OC-3/STM-1 SDH/SONET. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET / SDH standards, and ClassⅠlaser safety.



Featuring low power consumption, this hot swappable 100BASE SFP transceiver is ideal for Internet Service Provider (ISP) Fast Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.





Specification



Compatible Brand Cisco Linksys Compatible P/N MFELX1
Product Packaging SFP Max Data Rate 155Mbps
Connector Duplex LC Max Cable Distance 15km
DOM Yes Fiber Type Single-Mode Fibre
Warranty 3 Years Commercial Temperature 0 to 70°C (32 to 158°F)
Center Wavelength 1310nm Power Supply Voltage 3.30V
Power Consumption <1.0W Total Current <300mA
Transmitter Type FP 1310nm PD Type PIN
Launched Power -13~-8dBm Receiver Sensitivity <-30dBm
Extinction Ratio >10dB RX Overload >-3dBm
Protocols IEEE802.3ab, GR-468, MSA Compliant





Features



  • Operating data rate up to 155Mbps
  • 1310nm FP laser transmitter
  • 15km with 9/125 µm SMF
  • Single 3.3V power supply and TTL logic interface
  • Hot-Pluggable SFP footprint duplex LC connector interface
  • International Class 1 laser safety certified
  • Operating case temperature range:

Standard: 0°C~70°C

Industrial: -40°C~85°C

  • RoHS Compliant
  • Monitoring Interface Compliant with SFF-8472





Application



  • Fast Ethernet
  • SONET OC-3/SDH STM-1
  • ATM Switches and Routers





Compatibility



All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (100BASE-LX SFP 1310nm 15km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.



Compatible Brand Compatible Part Number Compatible Brand Compatible Part Number
GIGAOPTO GTS-L1302-15DC H3C SFP-FE-LX-SM1310
Cisco Linksys MFELX1 Allied Telesis AT-SPFX/15
Brocade E1MG-100FX-IR-OM Foundry Networks E1MG-100FX-IR





Ordering Information



P/N Description Data Rate Wavelength Reach TX Power Sensitivity
GTS-L13G2-M2DC 100BASE-FX SFP SGMII 155Mbps 1310nm 2km -20~-8dBm < -30dBm
GTS-L1302-M2DC 100BASE-FX SFP 155Mbps 1310nm 2km -19~-14dBm < -28dBm
GTS-L1302-10DC 100BASE-LX SFP 155Mbps 1310nm 10km -13~-8dBm < -30dBm
GTS-L1302-15DC 100BASE-eLX SFP 155Mbps 1310nm 15km -13~-8dBm <-30dBm
GTS-L1302-20DC 100BASE-LH SFP 155Mbps 1310nm 20km -13~-8dBm < -30dBm
GTS-L1302-40DC 100BASE-EX SFP 155Mbps 1310nm 40km -8~-4dBm < -32dBm
GTS-L1502-80DC 100BASE-ZX SFP 155Mbps 1550nm 80km -5~0dBm < -32dBm
