SMF LC DOM BiDi SFP Transceiver Module 1310nm 40km 1.25G 40km 1000BASE BX

Cisco Compatible 1000BASE-BX BiDi SFP 1.25Gbps Transceiver Module 1310nm-TX/1490nm-RX 40km SMF DOM Simplex LC

Description

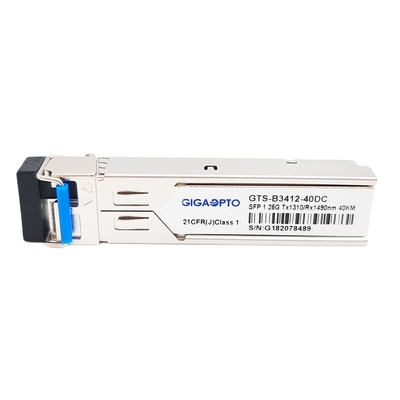

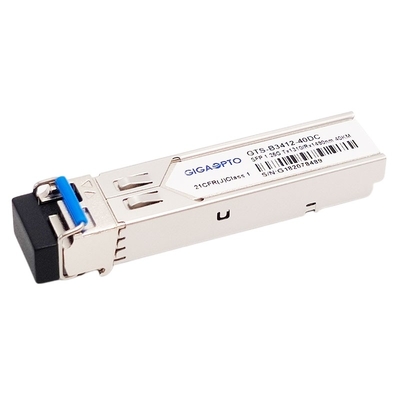

The GIGAOPTO's GTS-B3412-40DC transceiver is a high performance and cost-effective small form factor pluggable (SFP) Bi-directional transceiver for 1000BASE Gigabit Ethernet and 1G Fiber Channel application. The 1000BASE-BX SFP optical module provides 40km high-speed data links using a single strand of fiber at 1310nm-TX/1490nm-RX wavelengths via LC simplex connectors, making it very easy to upgrade transmission capacity without installing new fiber. The SFP transceiver module is a Class 1 laser product that complies with FDA/CDRH and IEC-60825 standards.

This 1000BASE-BX BiDi SFP 40km transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3 1000BASE-BX40 and SERDES standard.

Specification

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

according to the table.

Features

• Support Up to 1.25Gb/s data links
• Two types:

A:1310nm DFB transmitter /1490nm receiver

B:1490nm DFB transmitter/1310nm receiver

• Up to 40km on 9/125µm SMF
• BIDI LC/UPC type pluggable optical interface
• Built-in digital diagnostic via 2-wire interface
• Low power dissipation
• Metal enclosure provides lower EMI
• Hot-pluggable SFP footprint
• Single +3.3V power supply
• International ClassⅠlaser safety certified
• Operating temperature:

Commercial: 0°C ~ 70°C

Extended: -20°C ~ 85°C

Industrial: -40°C~85°C

• RoHS Compliant
• Compliant with SFP MSA (INF-8074i)
• Compliant with SFF-8472

• Compliant with IEEE 802.3z

Application

• 1x Fiber Channel
• Switch to Switch Interface
• Gigabit Ethernet
• Switched Backplane Applications
• Router/Server Interface

Compatibility

All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (1000BASE-BX BiDi SFP T1310nm/R1490nm 40km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.

Ordering Information

Pin Definition

Typical Application Circuit

Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
