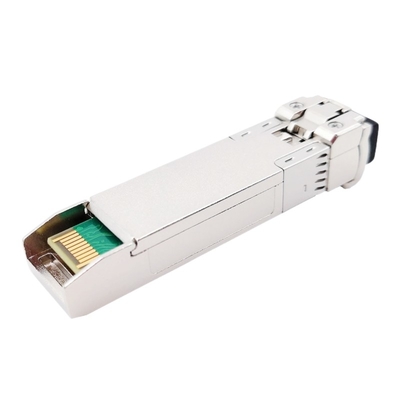

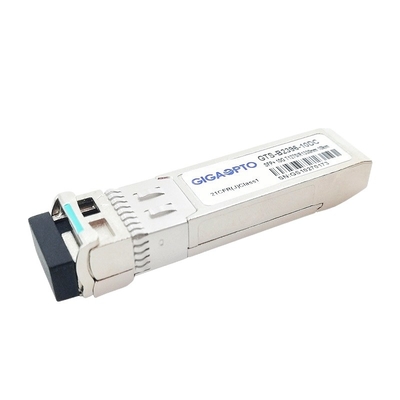

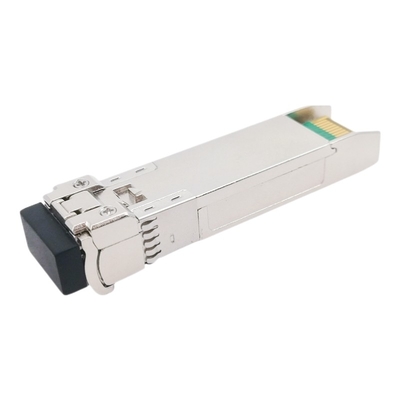

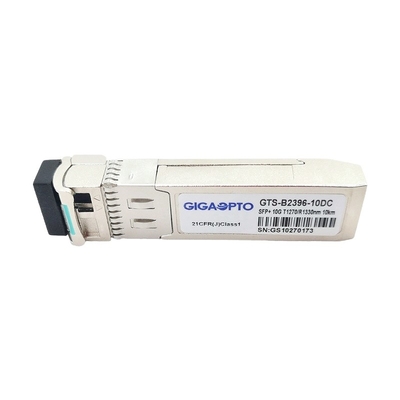

SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km

SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km
SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km

Large Image :  SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE,FCC,RoHs, TUV,UL
Model Number: GTS-B2396-10DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20,000pcs/month

SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km

Description
Product Name: 10GBASE-BX10-U Date Rate (Gbps): 10G
Wavelength: 1270nm-TX/1330nm-RX Interface: Simplex LC
Distance: 10km Optical Components: DFB
Latch Color: Blue DDMI: Supported
Keywords: 10GBASE-BX10-U, 10G SFP+ BiDi 10km
High Light:

SFP+ Bi Directional Transceiver

,

Bi Directional Transceiver Module

,

cwdm sfp 1270

SFP+ BiDi 1270nm-TX/1330nm-RX 10km Optical Transceiver Module DDMI Supported





Description



This 10GBASE-BX10-U BiDi transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The GTS-B2396-10DC features a multiple quantum well 1270nm DFB transmitter and 1330nm PIN photo-detector into LC Simplex connector,it supports to transmit and receive serial optical data link up to 10km over simplex single-mode fiber cable. All module satisfy Class 1 laser safety requirements.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.





Specification



Form Type SFP+ Data Rate (Gbps) 10G
Wavelength(Tx/Rx) 1270nm/1330nm Distance 10km
Connector Simplex LC Cable Type SMF
Transmitter Type DFB BiDi Receiver Type PIN
TX Power -5~0dBm Receiver Sensitivity < -14.4dBm
Powerbudget 9.4dB Receiver Overload >0.5dBm
Power Consumption ≤1W Extinction Ratio >3.5dB
DDMI Supported Modulation Format NRZ
Warranty 3 years Temperature Range 0 to 70°C (32 to 158°F)
OEM/ODM Supported MTBF 1,000,000Hours
Protocols IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI





Features



  • Hot-pluggable SFP+ footprint Bi-Directional SFP+ Optical Transceiver
  • Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW ¨
  • SFP+ MSA SFF-8431 Compliant
  • Operating data rate up to 11.3Gbps
  • 1270nm DFB transmitter, 1330nm PIN photo-detector
  • Transmission up to 10km on 9/125um SMF
  • LC Simplex receptacle
  • Built-in digital diagnostic functions
  • Single 3.3V power supply
  • Metal enclosure, for lower EMI
  • Operating case temperature:Commercial: 0 ~70°C
  • RoHS compliant and lead-free



Application



  • 10GBASE-LR/LW
  • 10G Fiber Channel
  • 10G SONET/SDH, OTU2/2e
  • 10GBASE-BX





Electrical and Optical Characteristics



Electrical Characteristics
Parameter Symbol Min Typical Max Unit Notes
Total Supply Current ICC     300 mA
Transmitter
Transmitter Differential Input Voltage   180   1200 mV
Tx_Fault Output Voltage - High VOH 2.4   Vcc V LVTTL
Tx_Fault Output Voltage - Low VOL 0   0.4 V LVTTL
Tx_Disable Input Voltage - High VIH 2   Vcc V LVTTL
Tx_Disable Input Voltage - Low VIL 0   0.8 V LVTTL
Input Differential Impedance ZIN 85 100 115 Ω
Receiver
Receiver Differential Output Voltage   300   850 mV
LOS Output Voltage - High VOH 2.4   Vcc V LVTTL
LOS Output Voltage - Low VOL 0   0.4 V LVTTL
Output Differential Impedance ZOUT 90 100 110 Ω



Optical Transmitter Characteristics
Parameter Symbol Min Typical Max Unit Notes
Average Output Power POUT -5   0 dBm
Center Wavelength λc 1320 1330 1340 nm GTS-B3296-10Dx
1260 1270 1280 GTS-B2396-10Dx
Spectral Width (-20dB) ∆λ     1 nm
Side Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 3.5     dB
Relative Intensity Noise RIN     -128 dB/Hz
Optical Return Loss   12     dB
Transmitter and Dispersion Penalty TDP     3.2 dB
Transmitter OFF Power POFF     -45 dBm
Output Eye Diagram Complies with IEEE802.3ae
Optical Receiver Characteristics
Parameter Symbol Min Typical Max Unit Notes
Center Wavelength λc 1320   1340 nm GTS-B2396-10Dx
1260   1280 GTS-B3296-10Dx
Receiver Sensitivity PSEN     -14.4 dBm Note 1
Input Saturation Power (Overload) PSAT 0.5     dBm
Receiver Reflectance       -12 dB
LOS De-assert Level LOSD     -17 dBm
LOS Assert Level LOSA -30     dBm
LOS hysteresis HYS 0.5   6 dB

Note 1. Measured with a PRBS 231-1 test pattern, @10.3125Gbps, ER=4dB, BER<10-12





Compatibility



All Gigaopto’s transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.

For this GTS-B2396-10DC, please refer to the P/N correspondence table. For more product compatibility, please feel free to tell us.



Corresponding Compatible Brand/Part Number
Brand Part Number Brand Part Number
Gigaopto GTS-B2396-10DC Juniper EX-SFP-10GE-BX23
Cisco SFP-10G-BXU Brocade SFP-10G-BXU
Dell GP-SFP-10GBX-U-10 HW SFP-10G-BXU1
Ciena 12678 Extreme 10GB-BX10-U





Mechanical Dimensions

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)



SFP+ Bi Directional Transceiver Module DDMI 10GBASE BX10 U 1270nm-TX/1330nm-RX 10km 0
