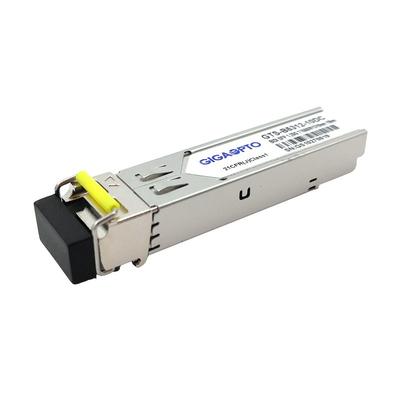

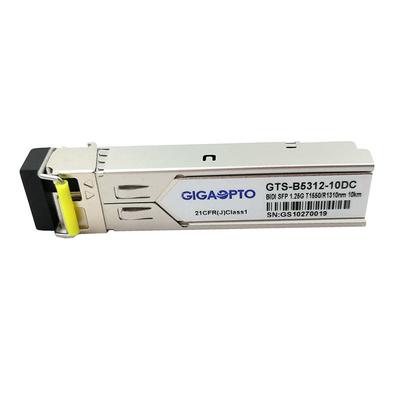

1.25G BiDi SFP 1000BASE-BX TX1550nm/RX1310nm 10km SMF Simplex LC Transceiver Module

Cisco Compatible 1000BASE-BX 1550nm-TX/1310nm-RX 10km BiDi SFP 1.25G Transceiver Module SMF DOM Simplex LC


Description

The GIGAOPTO's GTS-B5312-10DC optical transceiver is a hot-pluggable SFP bi-directional (BiDi) module for Gigabit Ethernet 1000BASE-BX and Fiber Channel single fiber applications by using 1310nm/1550nm transmitter and 1550nm/1310nm receiver. This 1.25G BiDi SFP module provides 10km of 1000Base-BX throughput over a single strand of single-mode fiber using 1550nm-TX/1310nm-RX wavelengths via LC simplex connectors.

The 1000BASE-BX BiDi SFP transceiver supports digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 Multi-Source Agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature and transceiver supply voltage.


Specification




Features


• Operating data rate Up to 1.25Gb/s
• A:1310nm FP transmitter /1550nm receiver

B:1550nm DFB transmitter/1310nm receiver

• Up to 10km on 9/125µm SMF
• Single LC receptacle optical interface compliant
• Single +3.3V power supply
• Hot-pluggable SFP footprint
• Receiver Loss of Signal Output
• Transmitter disable input
• International Class 1 laser safety certified
• Operating temperature range:

Standard: 0°C~70°C (32 to 158°F)

Industrial: -40°C~85°C (-40 to 185°F)

• Compliant with RoH6 and Lead-Free



Application


• Fast Ethernet
• Switched Backplane Applications
• Switch to Switch Interface
• Router/Server Interface



Compatibility


Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer a 3-year warranty.
For this (1000BASE-BX BiDi SFP 1550nm-TX/1310nm-RX 10km), please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.



Ordering Information
