Product Details:
|
| Product Package: | SFP | Max Data Rate: | 1.25Gb/s |
|---|---|---|---|
| Connector: | LC Dual | Max Link Length: | 40km |
| Center Wavelength: | 1550nm | Laser Type: | DFB |
| Cable Type: | Single-Mode Fiber | DOM: | Yes |
| High Light: | 1G 1550nm 40km Optical Module, 1.25G SMF Optical Transceiver, 1000BASE-EX SFP Transceiver LC DOM | ||

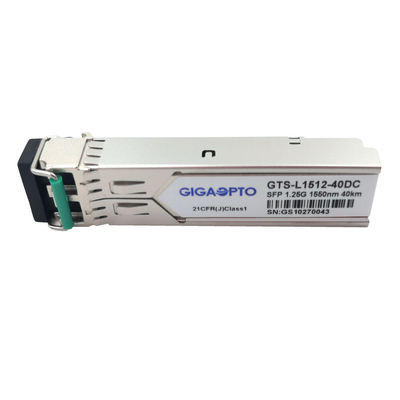

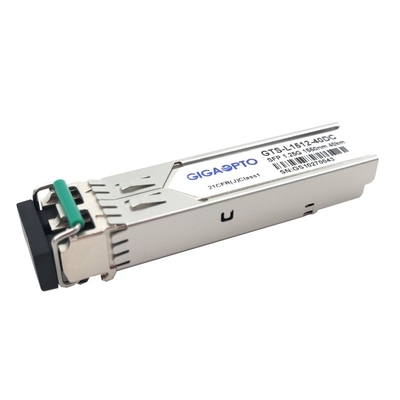

Cisco Compatible 1000BASE-EX 1550nm SMF 40km DOM Duplex LC SFP Transceiver Module
Description
The GIGAOPTO's GTS-L1512-40DC transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting data rate of 1.25Gbps at the link distance up to 40km over single-mode fiber (SMF). Featuring low power consumption, the hot swappable 1000BASE-EX SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links. This fiber optic transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. The SFP series are designed to be compliant with SFF-8472 SFP Multi-Source Agreement (MSA).
Specification
| Compatible Brand | CISCO | Compatible PN | GLC-EX-SM1550-40 |
| Form Factor | SFP | Data Rate (Max) | 1.25Gbps |
| Optical Connector | Dual-LC | Max Distance | 40km |
| DOM | Supported | Media | SMF |
| Warranty | 3 years | Temperature |
0 to 70°C (32 to 158°F), -40 to 85°C (-40 to 185°F) |
| Centre Wavelength | 1550nm | Power Supply Voltage | 3.3V |
| Laser Type | DFB 1550nm | Current | <300mA |
| Average Output Power | -5~0dBm | Receiver Sensitivity | < -24dBm |
| Extinction Ratio | >9dB | Receiver Overload | >-3dBm |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | ||
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator
according to the table.
| Distance | ≤10km | ≤20km |
| Attenuator | 10dB | 5dB |
Features
Commercial: 0°C~70°C
Industrial: -40°C~85°C
Application
Compatibility
All of Gigaopto's optical modules are open-source and can be coded to be fully compatible with many highly popular optical devices. For this product (1000BASE-EX SFP 1550nm 40km) please refer to the following compatibility table. If you would like more information about compatibility, please feel free to contact us.
| Compatible Brand | Compatible P/N | Compatible Brand | Compatible P/N |
| GIGAOPTO | GTS-L1512-40DC | HPE H3C | JD062A |
| CISCO | GLC-EX-SM1550-40 | Allied Telesis | AT-SPLX40/1550 |
| Generic | SFP1G-EX-55 | H3C | SFP-GE-LH40-SM1550 |
| Juniper | SFP-1GE-EX1550-40 | Dell | SFP-EX1550-40 |
| Arista | SFP-1G-EX1550-40 | Extreme | I-MGBIC-GEX1550-40 |
| Brocade | E1MG-EX1550-40 | HuaWei | SFP-GE-LH40-SM1550 |
| Avaya | AA1419051-E6 |
Ordering Information
| P/N | Description | Data Rate | Wavelength | Reach | Fibre Type | Interface |
| GTS-L0812-02DC | 1000BASE-SX SFP | 1250Mbps | 850nm |
550m@OM2 300m@OM1 220m@FDDI |
MMF | Dual LC |
| GTS-L1312-M2DC | 1000BASE-SX SFP | 1250Mbps | 1310nm | 2km | MMF | Dual LC |
| GTS-L1312-10DC | 1000BASE-LX SFP | 1250Mbps | 1310nm | 10km | SMF | Dual LC |
| GTS-L1312-20DC | 100BASE-LH SFP | 1250Mbps | 1310nm | 20km | SMF | Dual LC |
| GTS-L1512-40DC | 1000BASE-EX SFP | 1250Mbps | 1550nm | 40km | SMF | Dual LC |
| GTS-L1312-40DC | 1000BASE-EX SFP | 1250Mbps | 1310nm | 40km | SMF | Dual LC |
| GTS-L1512-80DC | 1000BASE-ZX SFP | 1250Mbps | 1550nm | 80km | SMF | Dual LC |
| GTS-L1512-A0DC | 1000BASE-EZX SFP | 1250Mbps | 1550nm | 100km | SMF | Dual LC |
| GTS-L1512-C0DC | 1000BASE-EZX SFP | 1250Mbps | 1550nm | 120km | SMF | Dual LC |
| GTS-L1512-F0DC | 1000BASE-EZX SFP | 1250Mbps | 1550nm | 160km | SMF | Dual LC |
