Product Details:
|
| Transmitter Type: | DML | Data Rate: | 25Gbps |
|---|---|---|---|
| Wavelength: | 850nm | Max Distance: | 30m |
| Cable Type: | Duplex LC | DDM: | Yes |
| Compliance: | IEEE 802.3by, SFF-8431 | Fiber Type: | MMF |
| High Light: | sfp28 transceiver,sfp+ transceiver in sfp28 port,25g sfp28 transceiver |
||

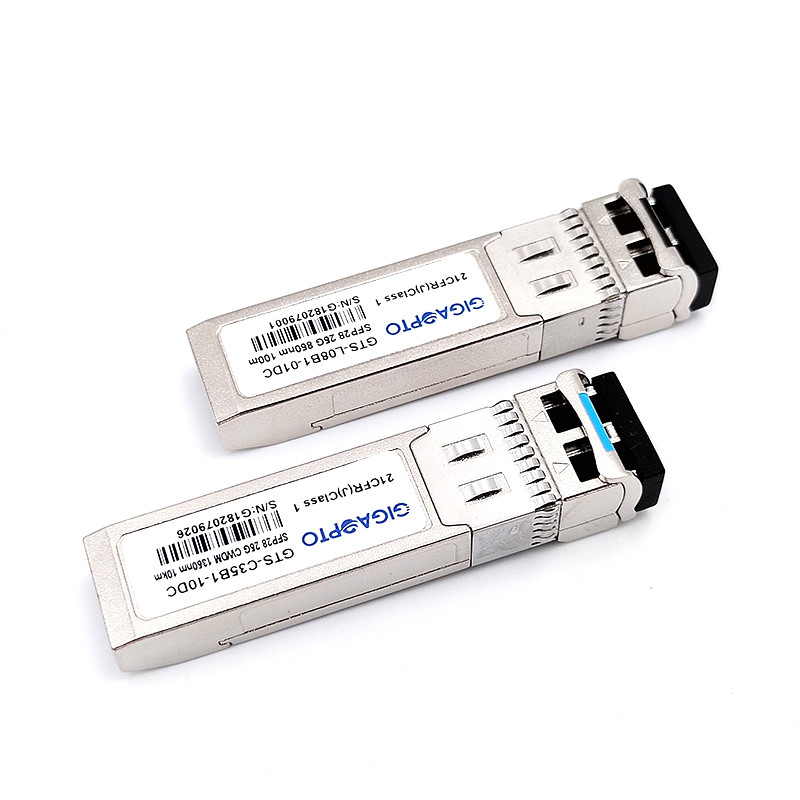

The SFP28 Optical Transceiver is a 25Gbps transceiver module which provides high-speed data transmission over long distances with low power consumption. This transceiver module is ideal for data centers and other applications requiring high-speed data transmission. It features high-speed 25Gbps data rate, 5 to 95% relative humidity (RH) range, 0 to 70°C temperature range, 1.5W maximum power consumption, and 30m maximum distance.
The SFP28 Optical Transceiver is a 25Gbase-ESR (Enhanced Small Form-Factor Pluggable) transceiver module that is compliant with IEEE 802.3by standards. It offers superior performance and reliability, and is designed for high-bandwidth data transmission in data centers and other high-density applications. This transceiver module is hot-swappable, which allows for easy installation and removal. It is also backward compatible with lower data rate SFP transceivers.
The SFP28 Optical Transceiver provides an efficient and reliable solution for high-speed data transmission. It is the perfect choice for data centers and other applications requiring high-speed data transmission over long distances. With its high data rate, low power consumption, and wide temperature and humidity ranges, this transceiver module offers a great value for your networking needs.
| Parameter | Specification |
|---|---|
| Fiber Type | MMF |
| Max Distance | 30m |
| DDM | Yes |
| Wavelength | 850nm |
| Cable Type | Duplex LC |
| Temperature Range | 0 To 70°C |
| Receiver Type | PIN |
| Humidity Range | 5 To 95% RH |
| Transmitter Type | DML |
| Data Rate | 25Gbps |
The SFP28 Optical Transceiver is a 25Gbase ESR transceiver module, specifically designed for high-speed communication links that require 25Gbps data rate. Made by Generic, Neutral, Gigaopto, the model number is GTS-L08B1-01DC, and it has obtained CE, FCC and RoHS certifications. It is a pluggable form factor module, and the minimum order quantity is 1. The price of the module is negotiable, and the packaging details are 10pcs/tray, 400pcs/carton. The delivery time is 3-7 days, and the payment terms are T/T or L/C. The supply ability is 100,000 pieces/month. It is equipped with VCSEL as optical components, and it is a DML transmitter type. With the maximum distance of 30m, the humidity range is 5 To 95% RH. The module is suitable for data centers, enterprise networks, and other applications that require 25Gbps data rate.
Brand Name: Generic, Neutral, Gigaopto
Model Number: GTS-L08B1-01DC
Place of Origin: Shenzhen/China
Certification: CE,FCC,RoHS
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: 10pcs/tray, 400pcs/carton
Delivery Time: 3-7 days
Payment Terms: T/T,L/C
Supply Ability: 100,000 pieces/month
Transmitter Type: DML
DDM: Yes
Receiver Type: PIN
Data Rate: 25Gbps
Compliance: IEEE 802.3by, SFF-8431
Our SFP28 Optical Transceiver Customization Service provides high-performance transceiver module, optical transceiver module, 25gbase esr, 25g optical module for advanced data rate of 25Gbps transmission. The module is compliant with IEEE 802.3by, SFF-8431 and supports DDM.
SFP28 Optical Transceiver offers the following technical support and services:
