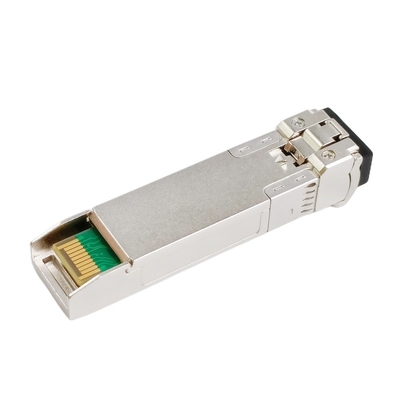

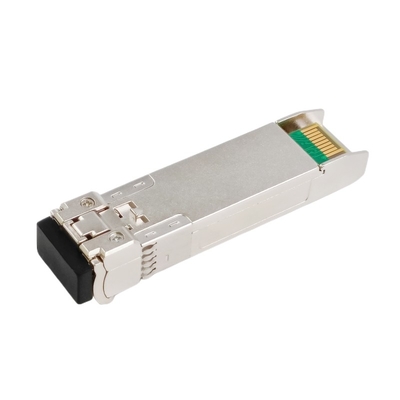

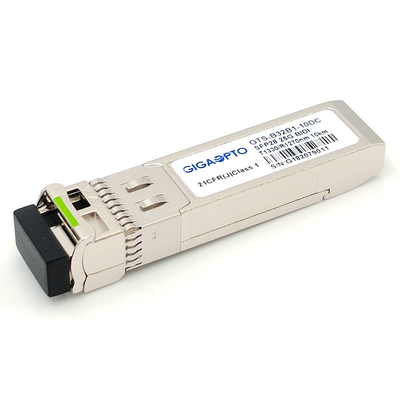

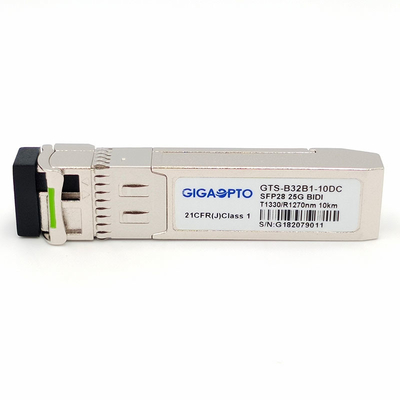

SFP28 25GBASE Bidirectional SFP Module 1330nm TX 1270nm RX 10km Simplex LC SMF DOM

SFP28 25GBASE SFP-25GBX-D-10 1330nm/1270nm 10KM OEM Single Mode Optical Transceiver DOM

Description

Gigaopto’s GTS-B32B1-10DC SFP28 optical transceivers are designed for bi-directional serial optical data communications such as Ethernet/eCPRI/CPRI links up to 25.78Gb/s data rate and up to 10km link length. They are compliant to SFF-8472 Rev 12.2, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0.

The transmitter section uses a 1330nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses a 1270nm integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a rate selection clock data recovery (CDR) IC.

The SFP28 BIDI optical transceiver is compliant per the RoHS Directive 2011/65/EU.

This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths (our model P/N GTS-B23B1-10DC).

Specification

Features

• Hot-pluggable SFP28 footprint
• UP to 25.78Gb/s bi-directional data links
• Simplex LC connector
• Up to 10km on 9/125m SMF
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
• 1271nm DFB laser transmitter for -2733
• 1331nm DFB laser transmitter for -3327
• Single 3.3V Power Supply
• Operating temperature: Commercial: 0~ 70°C
• RoHS compliant

Application

• 25GE LR
• eCPRI & CPR

Compatibility

All of Gigaopto's GTS-B32B1-10DC optical transceiver modules are open sourced, can be coded to be fully compatible with mainstream devices, please refer to the following form, for more products compatibility, please feel free to contact us.

For More of our SFP28 25GBASE Transceiver Series, please refer to the following table:
