SFP28 25GBASE ER 1310n 40km Optical SFP Transceiver Module EML APD SMF LC DOM Industrial

25GBASE-ER 40km Single Mode Fiber Transceiver Module 1310nm 40km DOM I-temperature

Description

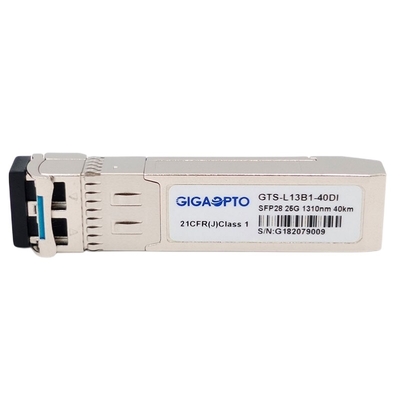

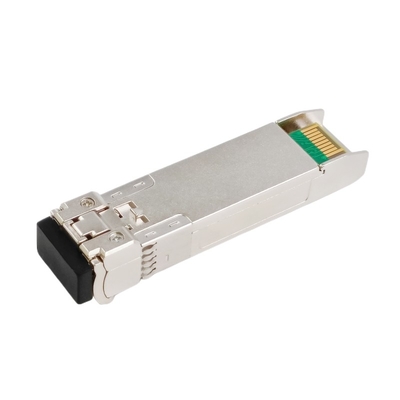

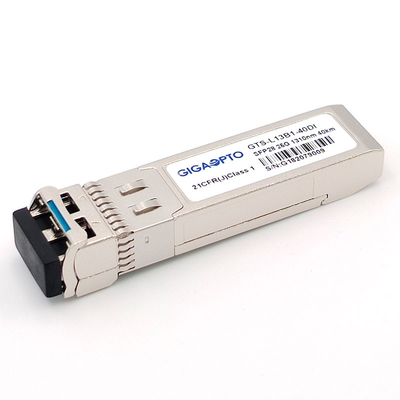

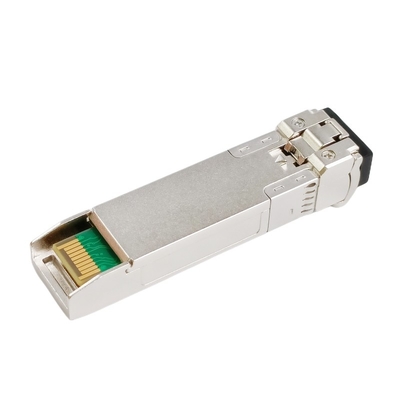

Gigaopto’s GTS-L13B1-40DI transceiver provides 25GBase-ER throughput up to 40km distance for optical data communications such as 25G Ethernet and CPRI Option 10. It is with the SFP+ 20-pin connector to allow hot plug capability.

This 25G SFP28 ER module is designed for single mode fiber and operates at a nominal wavelength of 1310nm. The transmitter section uses a 1310nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a rate selection clock data recovery (CDR) IC.

Compatible with SFF-8431, SFF-8432, it supports Wireless (CPRI/eCPRI), 25G Ethernet ER and 25G Fiber Channel protocol. It has built-in clock and data recovery (CDR). Digital diagnostic functions are available via an I2C, as specified in SFF-8472 and SFF-8402.

Featuring with high quality components, this SFP28 ER transceiver can be worked under the case temperature range from -40 to 85°C, it is suitable for both outdoor and indoor deployments.

Specification

Features

• 25.78Gb/s bit rates
• Hot-Pluggable
• Duplex LC connector
• EML transmitter, APD photo-detector
• Up to 40km on SMF
• Power Supply :+3.3V
• Cost effective SFP28 solution, enables higher port densities and greater bandwidth
• Low Power consumption<2.2W
• RoHS complaint
• 2-wire interface for management
• specifications compliant with SFF 8472
• digital diagnostic monitoring interface for optical transceivers
• Operating case temperature Range:-40 to 85°C (-40 to 185°F)

Application

• High-speed storage area networks
• Computer cluster cross-connect
• Custom high-speed data pipes
• Inter Rack Connection

Compatibility

Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.

For this GTS-L13B1-40DI, please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.
