Product Details:
|
| Data Rate: | 1.25Gbps | Fiber Type: | Single Mode |
|---|---|---|---|
| Product Name: | EPON SFP Module | Wavelength: | 1310nm |
| Temperature: | -40C-+85C | Weight: | 20g |
| Optical Components: | DML/EML | Connector: | SC/UPC |
| Highlight: | single mode sfp epon,single mode epon sfp,1.25gbps epon sfp |
||

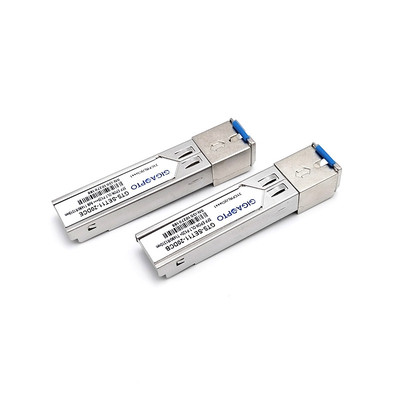

EPON OLT PX20/EPON ONU SFP/EPON SFP module is a small, economical and high-performance EPON data communication optical transceiver module. The weight is 20g, the receiver type is PIN/APD, the size is 14.5mmx14.5mmx56mm, the wavelength is 1310nm, and the transmitter type is FP/DFB. It is ideally suited for use in EPON systems, providing reliable transmission and low power consumption. This module complies with IEEE 802.3ah standard and supports transmission up to 10km. Its advanced design facilitates installation and maintenance. EPON OLT PX20/EPON ONU SFP/EPON SFP modules provide cost-effective solutions for your EPON data communications needs.
| Parameter | Value |
|---|---|
| Product Name | EPON SFP Module |
| Fiber Type | Single Mode |
| Feature | 1000BASE-PX20 |
| Transmitter Type | FP/DFB |
| Wavelength | 1310nm |
| Power Supply | 3.3V |
| Power Consumption | 1W |
| Temperature | -40C-+85C |
| Size | 14.5mmx14.5mmx56mm |
| Weight | 20g |
The neutral EPON OLT SC UPC module is a high quality SFP module designed for use in EPON OLT systems. It features 1000BASE-PX20 transmission distance up to 20KM, single-mode fiber type, and ultra-low temperature range of -40C to +85C. This product has passed CE, FCC, RoHs, TUV, UL certification and weighs only 20 grams. It is the perfect choice for EPON OLT applications, providing reliable, high-speed data transmission.
EPON SFP Module Packaging and Shipping:
The EPON SFP Module is packaged in a box with bubble wrap and cushioning material to ensure the product arrives in perfect condition. The box is then sealed for safety. The EPON SFP Module is then shipped via a reliable carrier with tracking to ensure delivery to the customer.
