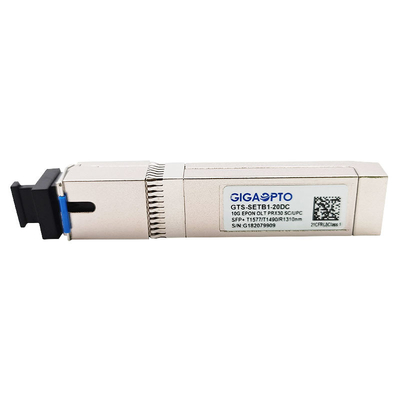

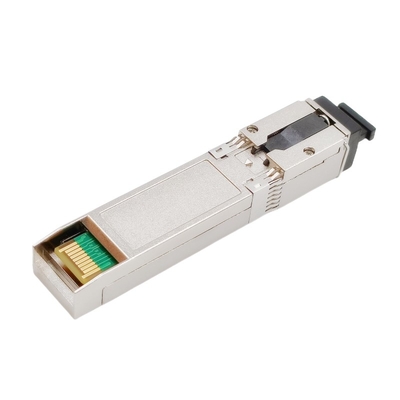

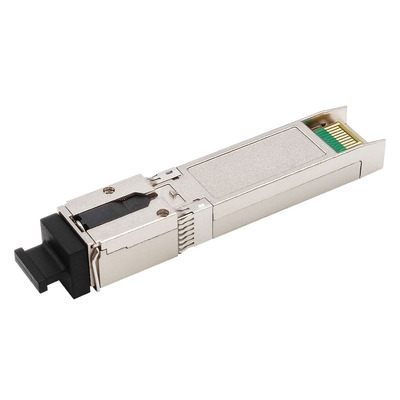

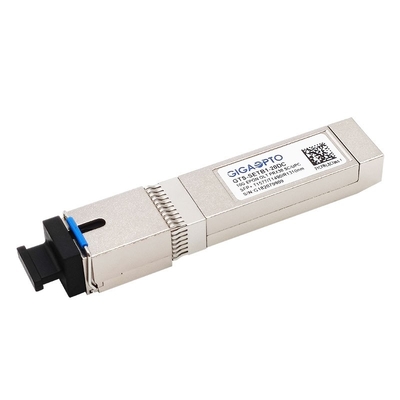

SFP+ 10G EPON SFP Module OLT SC UPC Asymmetric PRX30 T1577nm 10G T1490nm 1G R1310nm 1G

Large Image : SFP+ 10G EPON SFP Module OLT SC UPC Asymmetric PRX30 T1577nm 10G T1490nm 1G R1310nm 1G

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	GIGAOPTO
Certification:	CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number:	GTS-SETB1-20DC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time:	1-5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	10,000 pcs / month

Contact Now

SFP+ 10G EPON SFP Module OLT SC UPC Asymmetric PRX30 T1577nm 10G T1490nm 1G R1310nm 1G

Description

Product Name:	10GEPON OLT SFP+	Form Factor:	SFP+
Data Rate:	Tx10.3G/Tx1.25G/Rx1.25G	Wavelength:	T1577nm/T1490nm/R1310nm
Interface:	SC/UPC	ODN Class:	PRX30
Optical Components:	EML+DFB+APD	Max Cable Distance:	20km
Keywords:	SFP+ 10GEPON OLT, PRX30 Transceiver, 10GEPON OLT Module
High Light:	10G EPON SFP+ Module , UPC EPON SFP+ Module , PRX30

10GEPON OLT SFP+ Asymmetrical PRX30 TX1577nm 10.3G/TX1490nm 1.25G/RX1310nm 1.25G SC/UPC Receptacle 20km Transceiver Module

Description

The GIGAOPTO's GTS-SETB1-20DC is a high performance transceiver module for the optical line terminal (OLT) of 10GEPON with 10.3125Gbps &1.25Gbps in downstream and 1.25Gbps in upstream. This 10GEPON OLT SFP+ module is for single fiber communications by using 1490nm and 1577nm continuous-mode transmitter and 1310nm burst-mode receiver.

The module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM). The memory map is compatible with SFF-8472.

Specification

Form Factor	10GEPON OLT SFP+	Speed	TX10.3G/TX1.25G /RX1.25G
Optical Receptacle Type	SC/UPC	Link Length	20km
Digital Diagnostic Monitoring	YES	Fibre Type	Single Mode Fibre
Warranty	3 years	Environment	0 to 70°C (32 to 158°F) -40 to 85°C (-40 to 185°F)
Wavelength	10G: TX1577nm 1.25G:TX1490nm 1.25G: RX 1310nm	Power Supply Voltage	3.3V
Storage Ambient Temperature	-40 to 85°C	ODN Class	PRX30
Laser Type	EML/DFB	PD Type	Burst APD
Average Output Power	10G: 2 to 5dBm 1.25G: 3 to 7dBm	Receiver Sensitivity	<-30dBm
ER	10G: >6dB 1.25G: >9dB	Saturated Optical Power	>-6dBm
Protocols	SFF-8472, IEEE Std 802.3av

Features

Single fiber bi-directional data links
Continuous transmitter and burst mode receiver
10.3125G 1577nm EML LD
1.25G 1310nm APD
XFP package with SC/UPC Receptacle Connector
Support 20km transmission distance with SMF
Single 3.3V power supply
Digital diagnostic monitoring interface
CML compatible data input/output interface
LVTTL transmitter laser fault alarm
Low EMI and excellent ESD protection
International Class 1 laser safety certified
Operating temperature range: Commercial: 0°C~70°C; Industrial: -40°C~85°C
RoHS6 Compliance

Application

Asymmetrical 10G Ethernet Passive Optical Network PRX30 ONU

Standards

Complies with SFP+ MSA (SFF-8431)
Complies with IEEE 802.3av
Complies with SFF-8472 Rev 10.4
Complies with FCC 47 CFR Part 15, Class B
Complies with FDA 21 CFR 1040.10 and 1040.11, Class I

Ordering Information

Part Number	Description	Data Rate (Gb/s)	Wavelength (nm)	Class	Interface	Tx/Rx Type
GTX-SETB1-20DC	10GEPON OLT XFP	TX10.3125/TX1.25/RX1.25	T1577/T1490/R1310	PRX30	SC/UPC	EML+DFB+APD
GTX-SETBB-20DC	10GEPON OLT XFP	TX10.3125/TX1.25 /RX10.3125/RX1.25	T1577/T1490 /R1270/R1310	PR30	SC/UPC	EML+DFB+APD
GTS-SETB1-20DC	10GEPON OLT SFP+	TX10.3125/TX1.25/RX1.25	T1577/T1490/R1310	PRX30	SC/UPC	EML+DFB+APD
GTS-SETBB-20DC	10GEPON OLT SFP+	TX10.3125/TX1.25 /RX10.3125/RX1.25	T1577/T1490 /R1270/R1310	PR30	SC/UPC	EML+DFB+APD
